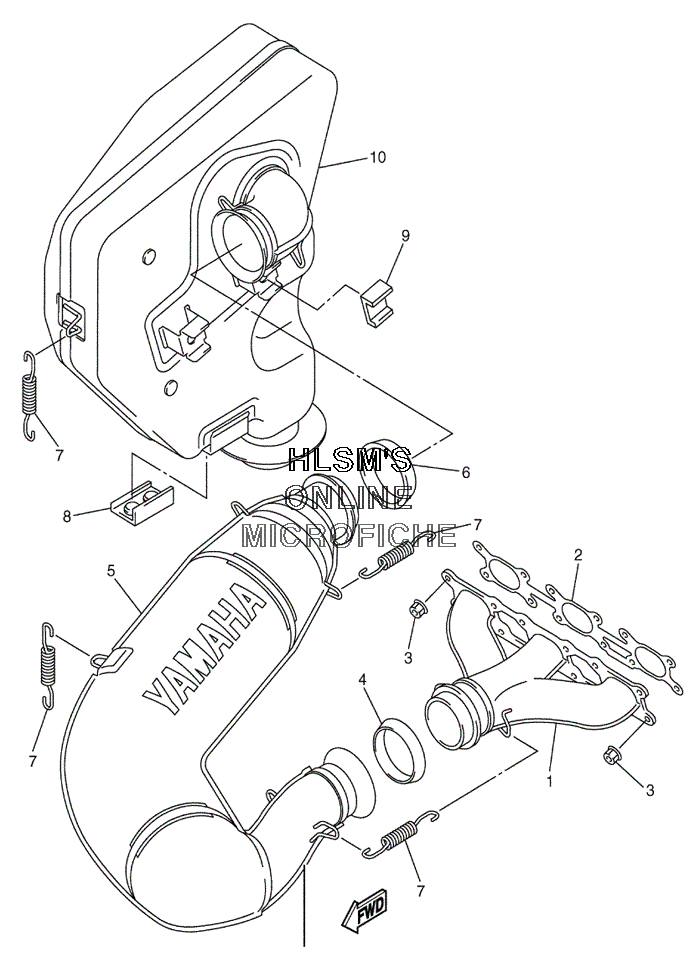

EXHAUST SYSTEM для Yamaha SX VIPER 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18EK-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
28EK-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
395707-06500-00 .NUT, FLANGE.NUT, FLANGE
-
48CA-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
58EK-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
68EK-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
790506-20272-00 SPRING, TENSIONSPRING, TENSION
-
88EK-14738-00-00 PROTECTER, MUFFLER 3PROTECTER, MUFFLER 3
-
98EK-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
108EK-14640-00-00 SECOND SILENCER, MUFFLERSECOND SILENCER, MUFFLER
