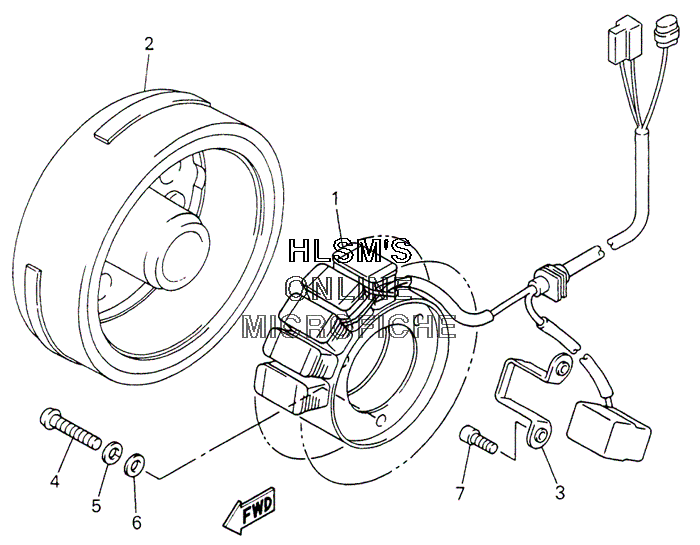

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha SX VIPER 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18EK-81410-00-00 STATOR ASSYSTATOR ASSY
-
28DN-81450-00-00 ROTOR ASSYROTOR ASSY
-
390465-12011-00 CLAMPCLAMP
-
498507-06030-00 .SCREW.SCREW
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
791317-05014-00 BOLTBOLT
