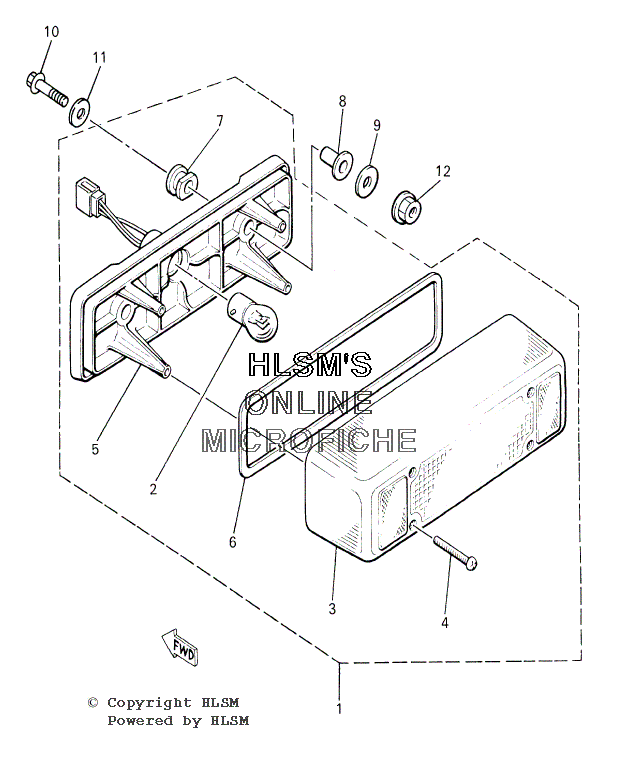

ELECTRICAL - TAILLIGHT ASSY для Yamaha VENTURE 700 - 2001 года выпуска`
-
№АртикулНазвание
-
182M-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2838-84714-01-00 ...BULB (12V-23/8W)...BULB (12V-23/8W)
-
38K4-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
497701-40130-00 ...SCREW, PANHEAD TAPPING...SCREW, PANHEAD TAPPING
-
582M-84711-00-00 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
687M-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
78K4-84718-00-00 ...GROMMET...GROMMET
-
890387-066N1-00 COLLARCOLLAR
-
990201-06747-00 WASHER, PLATEWASHER, PLATE
-
1097007-06040-00 BOLTBOLT
-
1190201-06072-00 WASHER, PLATEWASHER, PLATE
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - MAGNETO ASSEMBLY
- • ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- SEAT ASSY
- SPEEDOMETER KIT
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- TUNNEL EXTENSION ASSEMBLY
- WATER PUMP ASSY
