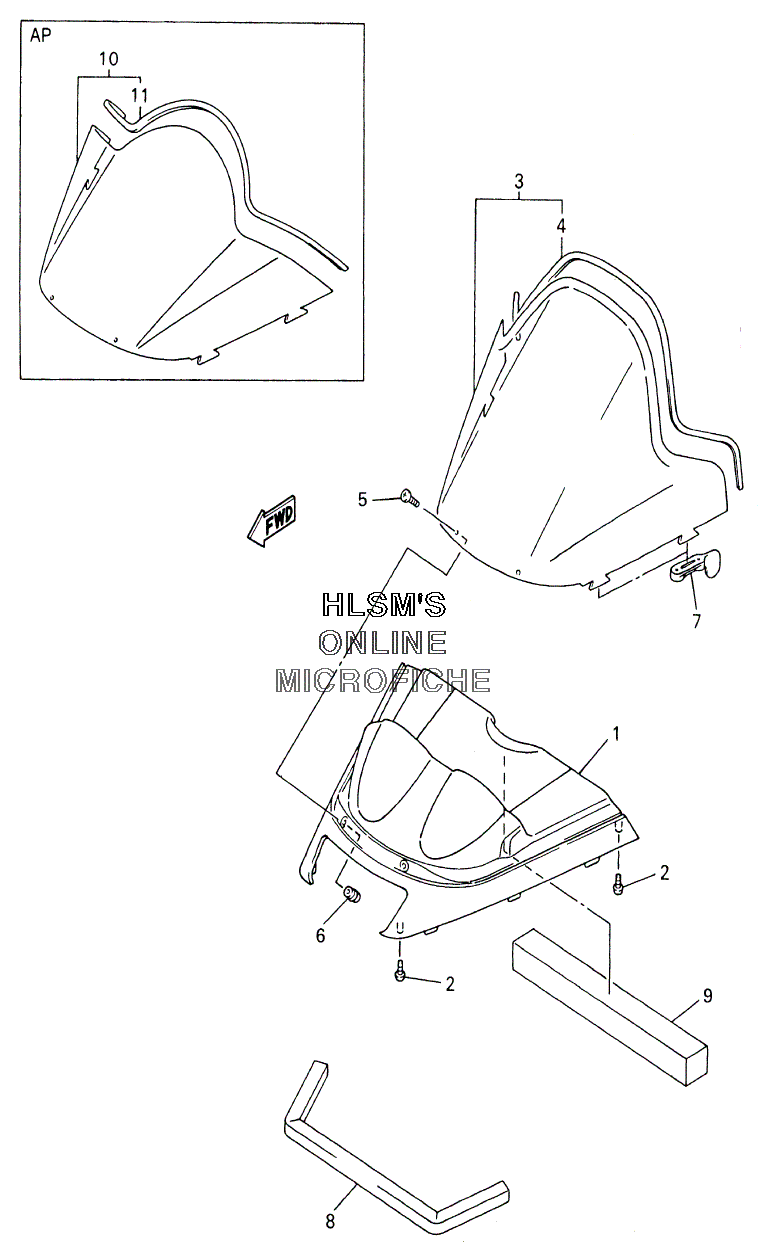

HOOD - WINDSHIELD ASSY для Yamaha SX 500 - 2001 года выпуска`
-
№АртикулНазвание
-
18DF-77251-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
38CR-77210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
48CR-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
590150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690179-05523-00 NUTNUT
-
782H-77223-00-00 FASTNERFASTNER
-
88CR-77279-00-00 DAMPER, NOISE 19DAMPER, NOISE 19
-
98CR-2199J-00-00 SHIELD, NOISE 2SHIELD, NOISE 2
-
108CV-77210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
118CV-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
