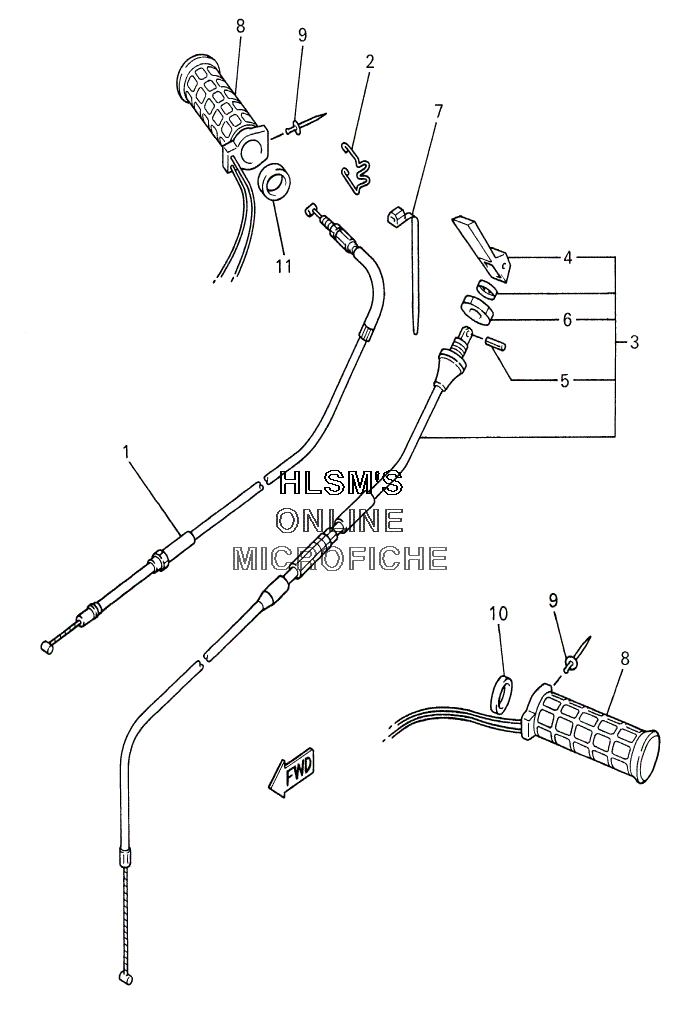

HANDLEBAR - CABLES AND GRIPS для Yamaha SX 500 - 2001 года выпуска`
-
№АртикулНазвание
-
18CT-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28M6-26391-01-00 CLIP, CABLECLIP, CABLE
-
38CR-26330-01-00 STARTER CABLE ASSYSTARTER CABLE ASSY
-
48U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
68G8-26333-00-00 ...NUT...NUT
-
790464-13073-00 CLAMPCLAMP
-
88ED-26240-00-00 GRIP ASSYGRIP ASSY
-
990267-40076-00 RIVET, BLINDRIVET, BLIND
-
1090387-22726-00 COLLARCOLLAR
-
1190387-224F9-00 COLLARCOLLAR
