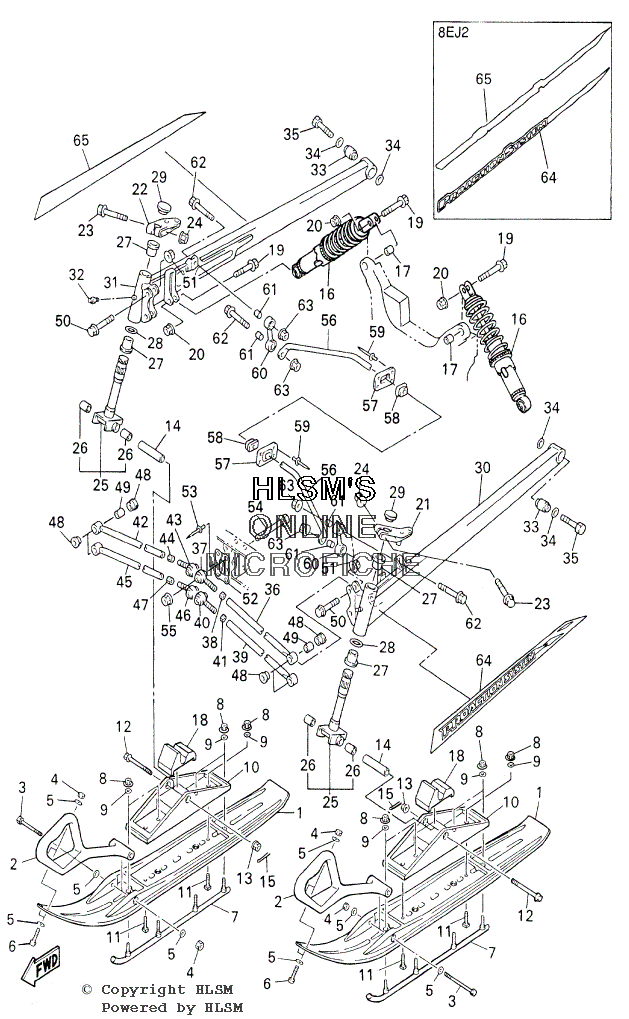

SUSPENSION - FRONT W/ SKI ASSY для Yamaha MOUNTAIN MAX 700 - 2001 года выпуска`
-
№АртикулНазвание
-
18DP-23711-10-00 SKI 1SKI 1
-
28DF-23712-00-00 RIENF., HEAD 1 (MM700F)RIENF., HEAD 1 (MM700F)
-
28EG-23712-00-00 REINFORCEMENT, HEAD (MM600F)REINFORCEMENT, HEAD (MM600F)
-
38DF-23755-00-00 BOLT, REINF. HEAD 1BOLT, REINF. HEAD 1
-
48DF-23778-00-00 NUTNUT
-
58DF-23737-00-00 WASHER 1WASHER 1
-
68DP-23756-00-00 BOLT, REINFORCEMENT HEADBOLT, REINFORCEMENT HEAD
-
78DF-23731-20-00 RUNNER 1RUNNER 1
-
895707-08300-00 NUT, FLANGENUT, FLANGE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
108EA-23766-00-00 SADDLE 1SADDLE 1
-
1190108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
1290105-10712-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168ED-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
178CR-2376B-00-00 BUSHBUSH
-
188CS-23743-00-00 STOPPER 1STOPPER 1
-
1990105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
218CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
228CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2395817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
258CR-23803-01-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2690384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2790381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2890201-301G3-00 WASHER, PLATEWASHER, PLATE
-
298CR-23741-10-00 CAP 1CAP 1
-
308CS-2382E-20-00 ARM, FRONT 1ARM, FRONT 1
-
318CS-2382F-20-00 ARM, FRONT 2ARM, FRONT 2
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
338CR-2516A-00-00 DAMPERDAMPER
-
3490201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3590101-12780-00 BOLTBOLT
-
368CS-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
378CR-23823-01-00 JOINT 2JOINT 2
-
3895317-12600-00 NUTNUT
-
398CS-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
408CR-23832-00-00 JOINT 3JOINT 3
-
4195314-14600-00 NUTNUT
-
428CS-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
438CR-23823-01-00 JOINT 2JOINT 2
-
4495317-12600-00 NUTNUT
-
458CS-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
468CR-23832-00-00 JOINT 3JOINT 3
-
4795314-14600-00 NUTNUT
-
4890381-17110-00 BUSH, SOLIDBUSH, SOLID
-
4990387-1009K-00 COLLARCOLLAR
-
5090105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528DF-23779-00-00 WASHERWASHER
-
5390267-48057-00 RIVET, BLINDRIVET, BLIND
-
5490105-121A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568CS-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
578CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
588CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5990267-47186-00 RIVET, BLINDRIVET, BLIND
-
608CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6190387-087L3-00 COLLARCOLLAR
-
6290105-08345-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
648DS-77371-00-00 EMBLEM 5 (MM600F)EMBLEM 5 (MM600F)
-
648EA-77371-20-00 EMBLEM 5 (MM700F)EMBLEM 5 (MM700F)
-
658DS-77372-00-00 EMBLEM 6 (MM600F)EMBLEM 6 (MM600F)
-
658EA-77372-20-00 EMBLEM 6 (MM700F)EMBLEM 6 (MM700F)
