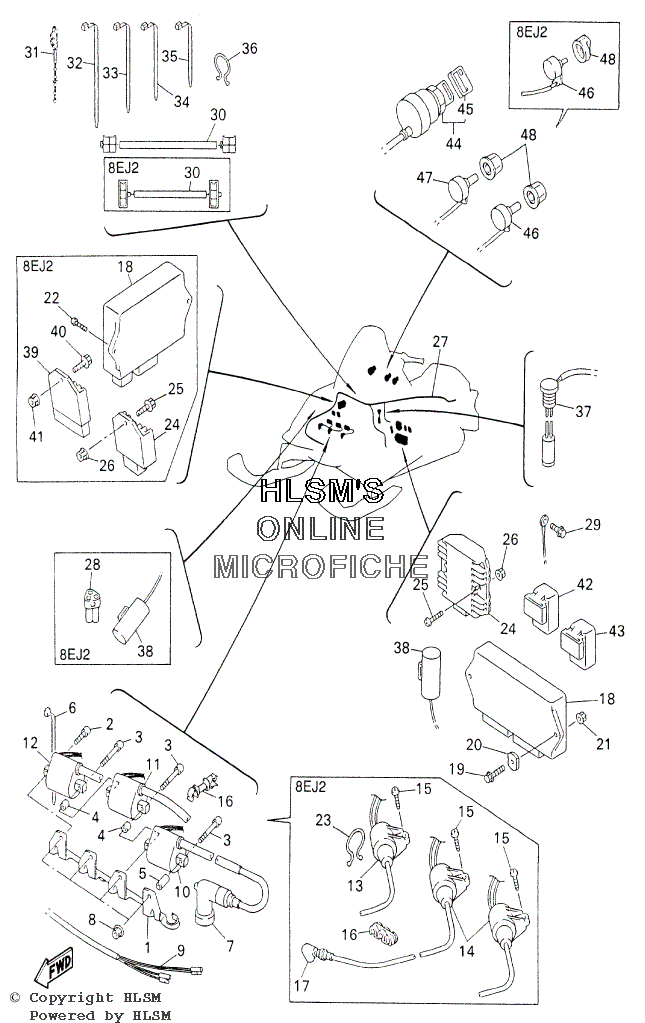

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha MOUNTAIN MAX 700 - 2001 года выпуска
-
№АртикулНазвание
-
18DM-82316-00-00 BRACKET, IGNITION COIL (MM700F)BRACKET, IGNITION COIL (MM700F)
-
291317-06020-00 BOLT (MM700F)BOLT (MM700F)
-
391317-06040-00 BOLT (MM700F)BOLT (MM700F)
-
490387-0714B-00 COLLAR (MM700F)COLLAR (MM700F)
-
590387-07393-00 COLLAR (MM700F)COLLAR (MM700F)
-
690464-15195-00 CLAMP (MM700F)CLAMP (MM700F)
-
78DF-82370-00-00 PLUG CAP ASSY (MM700F)PLUG CAP ASSY (MM700F)
-
895607-06200-00 NUT, SELF U-FLANGE (MM700F)NUT, SELF U-FLANGE (MM700F)
-
98DM-82509-00-00 WIRE, SUB LEAD (MM700F)WIRE, SUB LEAD (MM700F)
-
108DM-82310-10-00 IGNITION COIL ASSY (MM700F)IGNITION COIL ASSY (MM700F)
-
118DF-82310-20-00 IGNITION COIL ASSY (MM700F)IGNITION COIL ASSY (MM700F)
-
128DM-82310-30-00 IGNITION COIL ASSY (MM700F)IGNITION COIL ASSY (MM700F)
-
138DG-82310-00-00 IGNITION COIL ASSY (MM600F)IGNITION COIL ASSY (MM600F)
-
148ED-82310-00-00 IGNITION COIL ASSY (MM600F)IGNITION COIL ASSY (MM600F)
-
1590157-06123-00 SCREW, PAN HEAD (MM600F)SCREW, PAN HEAD (MM600F)
-
1690464-06247-00 CLAMP (MM600F)CLAMP (MM600F)
-
1690464-10002-00 CLAMP (MM700F)CLAMP (MM700F)
-
178DF-82370-00-00 PLUG CAP ASSY (MM600F)PLUG CAP ASSY (MM600F)
-
188DG-85540-00-00 C.D.I. UNIT ASSY (MM600F)C.D.I. UNIT ASSY (MM600F)
-
188DM-85540-00-00 C.D.I. UNIT ASSY (MM700F)C.D.I. UNIT ASSY (MM700F)
-
1995807-06020-00 BOLT, FLANGE (MM700F)BOLT, FLANGE (MM700F)
-
2090179-06264-00 NUT (MM700F)NUT (MM700F)
-
2195707-06500-00 NUT, FLANGE (MM700F)NUT, FLANGE (MM700F)
-
2297707-60125-00 SCREW, TAPPING (MM600F)SCREW, TAPPING (MM600F)
-
2390464-16039-00 CLAMP (MM600F)CLAMP (MM600F)
-
244JH-81960-01-00 RECTIFIER & REGULATOR ASSY (MM700F)RECTIFIER & REGULATOR ASSY (MM700F)
-
248CR-81960-00-00 RECTIFIER & REGULATOR ASSY (MM600F)RECTIFIER & REGULATOR ASSY (MM600F)
-
2595807-06016-00 BOLT, FLANGE (MM600F)BOLT, FLANGE (MM600F)
-
2598507-06025-00 SCREW, PAN HEAD (MM700F)SCREW, PAN HEAD (MM700F)
-
2695707-06500-00 NUT, FLANGE (MM600F)NUT, FLANGE (MM600F)
-
2695707-06500-00 NUT, FLANGE (MM700F)NUT, FLANGE (MM700F)
-
278CH-82590-10-00 WIRE HARNESS ASSY (MM600F)WIRE HARNESS ASSY (MM600F)
-
278DS-82590-00-00 WIRE HARNESS ASSY (MM700F)WIRE HARNESS ASSY (MM700F)
-
288CR-82378-00-00 CONNECTOR (MM600F)CONNECTOR (MM600F)
-
2995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
308CR-8471G-00-00 WIRE, LEAD (MM700F)WIRE, LEAD (MM700F)
-
308DM-8471G-00-00 WIRE, LEAD (MM600F)WIRE, LEAD (MM600F)
-
3190464-20031-00 CLAMPCLAMP
-
3290464-12045-00 CLAMP (MM700F)CLAMP (MM700F)
-
3390464-15195-00 CLAMP (MM600F)CLAMP (MM600F)
-
3390464-15195-00 CLAMP (MM700F)CLAMP (MM700F)
-
3490464-13073-00 CLAMP (MM700F)CLAMP (MM700F)
-
3490464-13073-00 CLAMP (MM600F)CLAMP (MM600F)
-
3590464-13077-00 CLAMPCLAMP
-
3690464-23041-00 CLAMP (MM600F)CLAMP (MM600F)
-
378CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
381NL-81965-01-00 CONDENSER, SMOOTHING (MM600F)CONDENSER, SMOOTHING (MM600F)
-
383TC-81965-00-00 CONDENSER, SMOOTHING (MM700F)CONDENSER, SMOOTHING (MM700F)
-
398AB-81910-00-00 VOLTAGE REGULATOR ASSY (MM600F)VOLTAGE REGULATOR ASSY (MM600F)
-
4095807-06016-00 BOLT, FLANGE (MM600F)BOLT, FLANGE (MM600F)
-
4195707-06500-00 NUT, FLANGE (MM600F)NUT, FLANGE (MM600F)
-
421UY-81950-92-00 RELAY ASSY (MM700F)RELAY ASSY (MM700F)
-
438DM-81950-00-00 RELAY ASSY (MM700F)RELAY ASSY (MM700F)
-
448AB-82510-00-00 MAIN SWITCH ASSY (MM600F)MAIN SWITCH ASSY (MM600F)
-
448DM-82510-00-00 MAIN SWITCH ASSY (MM700F)MAIN SWITCH ASSY (MM700F)
-
45526-82579-00-00 ...CAP, KEY...CAP, KEY
-
468CR-87283-00-00 RESISTOR, VARIABLE (MM600F)RESISTOR, VARIABLE (MM600F)
-
468DM-87283-00-00 RESISTOR, VARIABLE (MM700F)RESISTOR, VARIABLE (MM700F)
-
478DM-87283-10-00 RESISTOR, VARIABLE (MM700F)RESISTOR, VARIABLE (MM700F)
-
488AB-87284-00-00 KNOB, VARIABLE RESISTOR (MM600F)KNOB, VARIABLE RESISTOR (MM600F)
-
488DM-87284-00-00 KNOB, VARIABLE RESISTOR (MM700F)KNOB, VARIABLE RESISTOR (MM700F)
