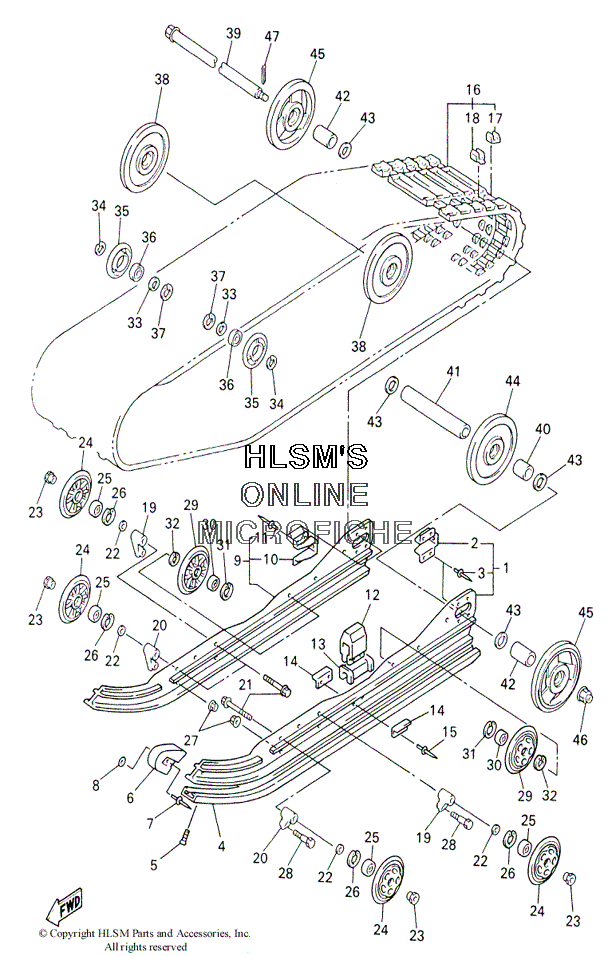

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VENTURE 500 XL - 2000 года выпуска`
-
№АртикулНазвание
-
18DX-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28V0-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVETS...RIVETS
-
48CW-47421-20-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68CM-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-048R8-00 WASHER, PLATEWASHER, PLATE
-
98DX-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108V0-4741B-00-00 ...BRACKET...BRACKET
-
118V0-47468-00-00 ...RIVETS...RIVETS
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48062-00 RIVET, BLINDRIVET, BLIND
-
168BN-47110-10-00 TRACK ASSEMBLYTRACK ASSEMBLY
-
178CR-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
188CR-47115-00-00 ...METAL, SLIDE...METAL, SLIDE
-
198CM-47419-10-00 BRACKET 7BRACKET 7
-
208CM-47419-20-00 BRACKET 7BRACKET 7
-
2190105-10769-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2290201-100L3-00 WASHER, PLATEWASHER, PLATE
-
2390179-10670-00 NUTNUT
-
2487M-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
2593306-00444-00 BEARINGBEARING
-
2699009-42500-00 CIRCLIPCIRCLIP
-
2795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890101-08774-00 BOLTBOLT
-
2987M-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
3093306-00444-00 BEARINGBEARING
-
3199009-42500-00 CIRCLIPCIRCLIP
-
3299009-20400-00 CIRCLIPCIRCLIP
-
3390387-2004V-00 COLLARCOLLAR
-
3499009-20400-00 CIRCLIPCIRCLIP
-
358H8-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
3693306-00444-00 BEARINGBEARING
-
3799009-42500-00 CIRCLIPCIRCLIP
-
388CR-47550-00-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
398L8-47520-02-00 REAR AXLE COMPREAR AXLE COMP
-
4090387-2012E-00 COLLARCOLLAR
-
4190387-2012C-00 COLLARCOLLAR
-
4290387-2012D-00 COLLARCOLLAR
-
4390201-205R6-00 WASHER, PLATEWASHER, PLATE
-
448CR-47550-10-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
458DF-47550-01-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
4695607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4791401-30025-00 PIN, COTTERPIN, COTTER
