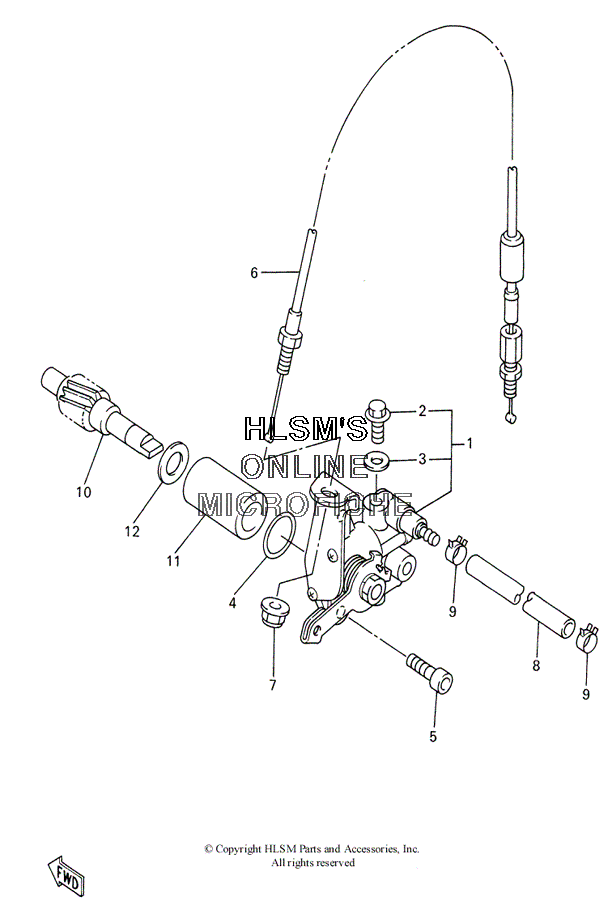

OIL PUMP ASSY для Yamaha VENTURE 500 XL - 2000 года выпуска`
-
№АртикулНазвание
-
18DJ-13100-00-00 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
289A-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
389A-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
493210-191A1-00 O-RINGO-RING
-
590110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68DJ-26320-01-00 PUMP CABLE ASSEMBLYPUMP CABLE ASSEMBLY
-
795707-08300-00 NUT, FLANGENUT, FLANGE
-
891A30-03030-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
990468-02025-00 CLIPCLIP
-
108DJ-13124-00-00 GEAR, WORM WHEELGEAR, WORM WHEEL
-
118DJ-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
1290201-105E8-00 WASHER, PLATEWASHER, PLATE
