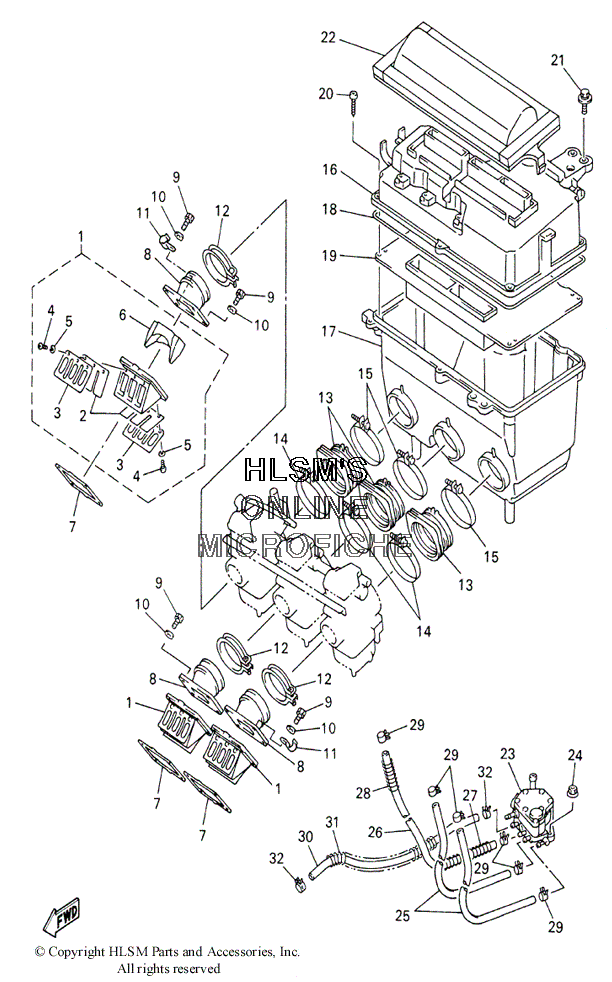

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha V-MAX 700 - 2000 года выпуска`
-
№АртикулНазвание
-
14DA-13610-00-00 REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
23SP-13613-00-00 ...REED, VALVE...REED, VALVE
-
34DA-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER...WASHER
-
64DA-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
78CH-13621-01-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88CH-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
997017-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190462-08239-00 CLAMPCLAMP
-
1290460-56073-00 CLAMP, HOSECLAMP, HOSE
-
138CH-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1490450-53061-00 HOSE CLAMP ASSEMBLYHOSE CLAMP ASSEMBLY
-
1590460-68230-00 CLAMP, HOSECLAMP, HOSE
-
168CH-14431-01-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
178CH-14441-01-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
188CH-14452-00-00 SEALSEAL
-
198CH-14477-00-00 PLATEPLATE
-
2090167-05043-00 SCREW, TAPPINGSCREW, TAPPING
-
2190119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
228CH-14450-00-00 ELEMENT ASSEMBLY, AIR CLEANERELEMENT ASSEMBLY, AIR CLEANER
-
238CH-24410-00-00 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
2495707-06500-00 NUT, FLANGENUT, FLANGE
-
2590445-095K1-00 HOSEHOSE
-
2690445-093J2-00 HOSEHOSE
-
2790501-085L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2890501-086L1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2990467-09026-00 CLIPCLIP
-
3090445-11735-00 HOSEHOSE
-
3190501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3290467-11032-00 CLIPCLIP
