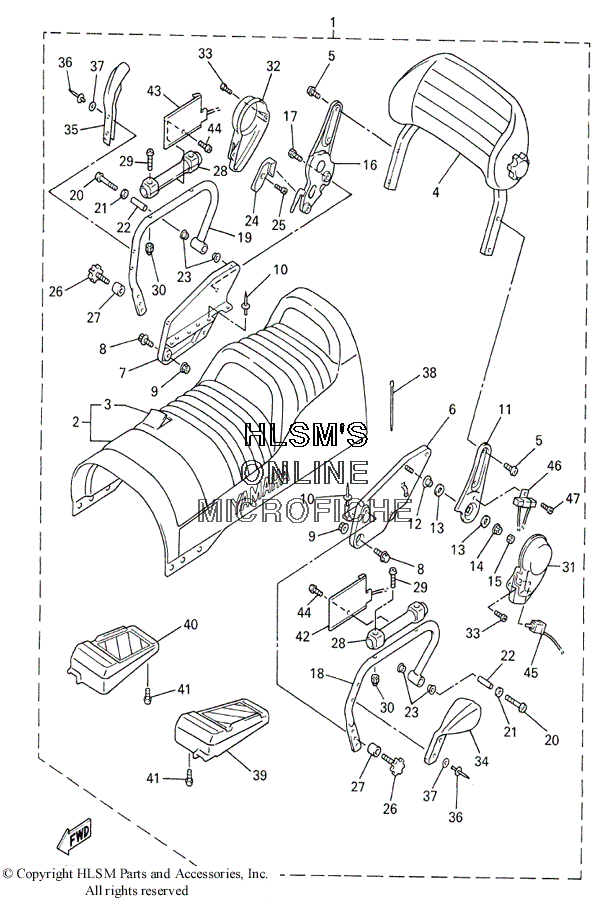

DOUBLE SEAT ASSY. W/ HIGH BACKREST (OPTION) для Yamaha V-MAX 700 - 2000 года выпуска`
-
№АртикулНазвание
-
18CR-W247R-10-00 SEMI-DOUBLE SEAT ASSEMBLY (DX) (AP)SEMI-DOUBLE SEAT ASSEMBLY (DX) (AP)
-
28CW-24730-20-00 ...DOUBLE SEAT ASSEMBLY...DOUBLE SEAT ASSEMBLY
-
38CW-2470F-20-00 ......COVER, SEAT......COVER, SEAT
-
48DM-24790-00-00 ...SEAT BACK ASSEMBLY...SEAT BACK ASSEMBLY
-
592017-10016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
68DM-2474F-00-00 ...STAY, FRONT 1...STAY, FRONT 1
-
78DM-2474G-00-00 ...STAY, FRONT 2...STAY, FRONT 2
-
895807-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995707-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
1090267-47187-00 ...RIVET, BLIND...RIVET, BLIND
-
118DM-2477R-00-00 ...ARM 2...ARM 2
-
1290387-083Y8-00 ...COLLAR...COLLAR
-
1390202-12236-00 ...WASHER, PLATE...WASHER, PLATE
-
1495707-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
1595307-08700-00 ...NUT...NUT
-
168DM-24760-00-00 ...SEAT LEVER ASSEMBLY...SEAT LEVER ASSEMBLY
-
1797027-10014-00 ...BOLT...BOLT
-
188DM-2474H-10-00 ...BRACKET, ASSIST GRIP 1...BRACKET, ASSIST GRIP 1
-
198DM-2474J-10-00 ...BRACKET, ASSIST GRIP 2...BRACKET, ASSIST GRIP 2
-
2092017-10070-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2190201-10437-00 ...WASHER, PLATE...WASHER, PLATE
-
2290387-10090-00 ...COLLAR...COLLAR
-
2390387-145G7-00 ...COLLAR...COLLAR
-
248DM-2477F-00-00 ...LEVER, SEAT...LEVER, SEAT
-
2597707-40008-00 ...SCREW, TAPPING...SCREW, TAPPING
-
268CW-2479H-00-00 ...BODY, SEAT LOCK...BODY, SEAT LOCK
-
278CW-24737-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
288DM-2474A-00-00 ...ASSIST, GRIP...ASSIST, GRIP
-
2998907-06035-00 ...SCREW, BIND...SCREW, BIND
-
3090176-06065-00 ...NUT, CROWN...NUT, CROWN
-
318DM-24796-00-00 ...COVER...COVER
-
328DM-2475X-00-00 ...COVER, 2...COVER, 2
-
3397707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
348DM-2476U-00-00 ...PROTECTOR, 1...PROTECTOR, 1
-
358DM-2476V-00-00 ...PROTECTOR, 2...PROTECTOR, 2
-
3690267-48051-00 ...RIVET, BLIND...RIVET, BLIND
-
3790201-051K1-00 ...WASHER, PLATE...WASHER, PLATE
-
3890464-13073-00 ...CLAMP...CLAMP
-
398DM-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
408DM-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
4197707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
428DM-2474B-00-00 ...ASSIST GRIP WARMER ASSEMBLY 1...ASSIST GRIP WARMER ASSEMBLY 1
-
438DM-2474C-00-00 ...ASSIST GRIP WARMER ASSEMBLY 2...ASSIST GRIP WARMER ASSEMBLY 2
-
4497707-40016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
458DM-82917-01-00 ...SWITCH...SWITCH
-
468DM-85370-00-00 ...RESISTOR ASSEMBLY...RESISTOR ASSEMBLY
-
4790154-06036-00 ...SCREW, BINDING...SCREW, BINDING
