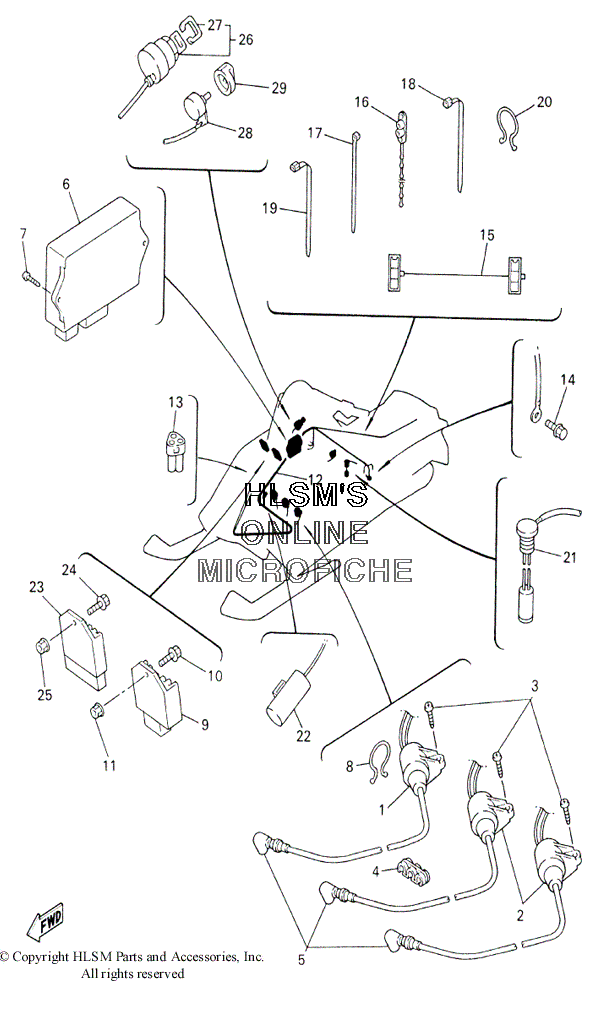

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DG-82310-00-00 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
28ED-82310-00-00 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
390157-06123-00 SCREW, PAN HEADSCREW, PAN HEAD
-
490464-06247-00 CLAMPCLAMP
-
58DF-82370-00-00 PLUG CAP ASSEMBLYPLUG CAP ASSEMBLY
-
68CH-85540-00-00 C.D.I UNIT ASSEMBLY (SX700)C.D.I UNIT ASSEMBLY (SX700)
-
68DG-85540-00-00 C.D.I UNIT ASSEMBLY (SX600)C.D.I UNIT ASSEMBLY (SX600)
-
797707-60125-00 SCREW, TAPPINGSCREW, TAPPING
-
890464-16039-00 CLAMPCLAMP
-
98CR-81960-00-00 RECTIFIER & REGULATOR ASSEMBLYRECTIFIER & REGULATOR ASSEMBLY
-
1095807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
128CH-82590-10-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
138CR-82378-00-00 CONNECTORCONNECTOR
-
1495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
158CR-8471G-00-00 WIRE, LEADWIRE, LEAD
-
1690464-20031-00 CLAMPCLAMP
-
1790464-15195-00 CLAMPCLAMP
-
1890464-13073-00 CLAMPCLAMP
-
1990464-13077-00 CLAMPCLAMP
-
2090464-23041-00 CLAMPCLAMP
-
218CR-85720-00-00 OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
221NL-81965-01-00 CONDENSER, SMOOTHINGCONDENSER, SMOOTHING
-
238AB-81910-00-00 VOLTAGE REGULATOR ASSEMBLYVOLTAGE REGULATOR ASSEMBLY
-
2495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2595707-06500-00 NUT, FLANGENUT, FLANGE
-
268AB-82510-00-00 MAIN SWITCH ASSEMBLYMAIN SWITCH ASSEMBLY
-
27526-82579-00-00 ...CAP, KEY...CAP, KEY
-
288CR-87283-00-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
298AB-87284-00-00 KNOB, VARIABLE RESISTORKNOB, VARIABLE RESISTOR
