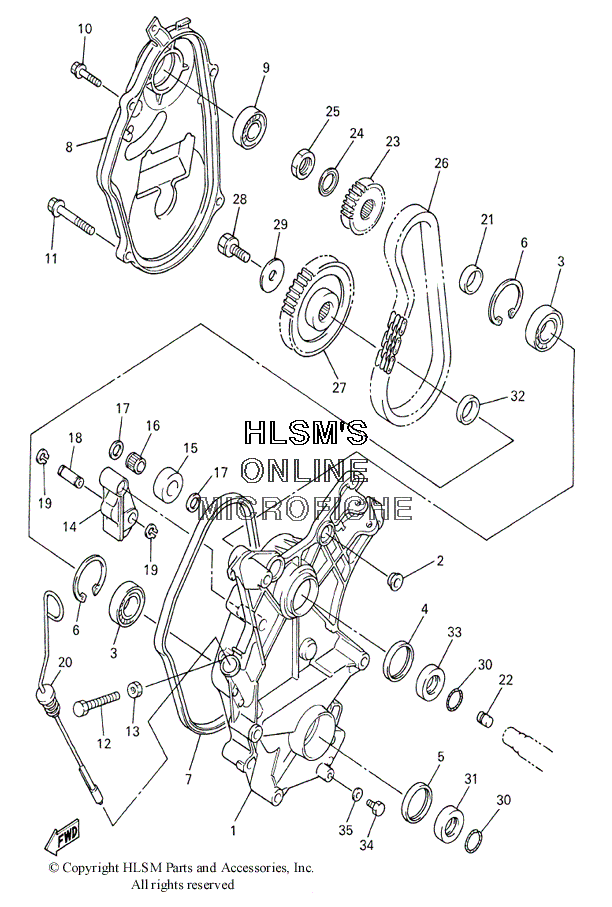

CHAINCASE ASSY для Yamaha SX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18CR-47541-01-00 HOUSING, CHAINHOUSING, CHAIN
-
290179-10679-00 NUTNUT
-
393306-20592-00 BEARINGBEARING
-
493102-35473-00 OIL SEALOIL SEAL
-
593102-35318-00 OIL SEALOIL SEAL
-
699009-52500-00 CIRCLIPCIRCLIP
-
78CR-47558-01-00 RING, HOUSINGRING, HOUSING
-
88CR-47543-01-00 CAP, HOUSINGCAP, HOUSING
-
993306-20402-00 BEARING (B6204JRC3)BEARING (B6204JRC3)
-
1095827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1195827-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1290101-10357-00 BOLTBOLT
-
1395307-10600-00 NUTNUT
-
148CR-47613-00-00 HOLDERHOLDER
-
158CR-47612-00-00 WHEELWHEEL
-
1693315-21227-00 BEARINGBEARING
-
1790201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1890249-12227-00 PINPIN
-
1999009-12400-00 CIRCLIPCIRCLIP
-
208CR-47546-00-00 LEVEL, OILLEVEL, OIL
-
2190387-2508D-00 COLLARCOLLAR
-
2282M-17699-00-00 PLUG, OILPLUG, OIL
-
2389J-17682-00-00 SPROCKET, CHAIN DRIVE (20T) (SX600)SPROCKET, CHAIN DRIVE (20T) (SX600)
-
2389J-17682-20-00 SPROCKET, CHAIN DRIVE (22T) (SX700)SPROCKET, CHAIN DRIVE (22T) (SX700)
-
2490208-22001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2590170-22094-00 NUTNUT
-
2694860-02068-00 CHAIN (68L) (SX600)CHAIN (68L) (SX600)
-
2694860-02070-00 CHAIN (70L) (SX700)CHAIN (70L) (SX700)
-
2789J-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
2890105-10751-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2990201-10321-00 WASHER, PLATEWASHER, PLATE
-
3093210-25071-00 O-RINGO-RING
-
3190387-2508C-00 COLLARCOLLAR
-
3290387-2508B-00 COLLARCOLLAR
-
3390387-2511J-00 COLLARCOLLAR
-
3497007-08014-00 BOLTBOLT
-
3590210-08017-00 WASHER, SEALWASHER, SEAL
