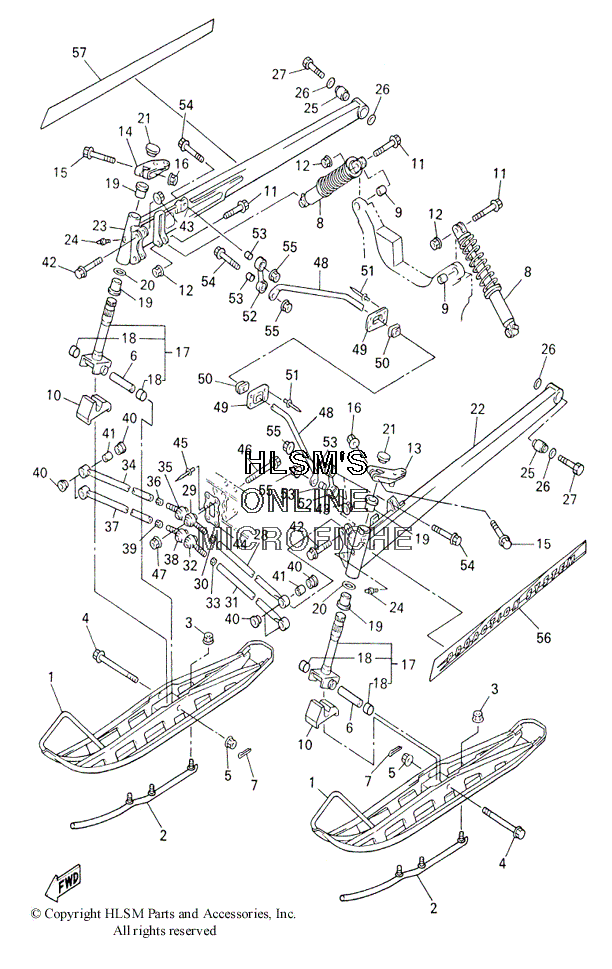

SUSPENSION - FRONT W/ SKI ASSY для Yamaha PHAZER 500 - 2000 года выпуска`
-
№АртикулНазвание
-
18DJ-23710-00-00 SKI COMP 1SKI COMP 1
-
28DJ-23731-00-00 RUNNER 1RUNNER 1
-
395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490105-10438-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-1012H-00 COLLARCOLLAR
-
791401-20020-00 PIN, COTTERPIN, COTTER
-
88DJ-2376A-00-00 ABSORBER ASSEMBLY 1ABSORBER ASSEMBLY 1
-
98CR-2376B-00-00 BUSHBUSH
-
108DJ-23743-00-00 STOPPER 1STOPPER 1
-
1190105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
148CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
1595817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178CR-23803-01-00 COLUMN, SKI 1COLUMN, SKI 1
-
1890384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1990381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2090201-301G3-00 WASHER, PLATEWASHER, PLATE
-
218CR-23741-10-00 CAP 1CAP 1
-
228CR-2382E-03-00 ARM, FRONT 1ARM, FRONT 1
-
238CR-2382F-03-00 ARM, FRONT 2ARM, FRONT 2
-
2493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
258CR-2516A-00-00 DAMPERDAMPER
-
2690201-120T5-00 WASHER, PLATEWASHER, PLATE
-
2790101-12780-00 BOLTBOLT
-
288CR-2384E-02-00 ARM, CONTROL 1ARM, CONTROL 1
-
298CR-23823-01-00 JOINT 2JOINT 2
-
3095317-12600-00 NUTNUT
-
318CR-2384F-02-00 ARM, CONTROL 2ARM, CONTROL 2
-
328CR-23832-00-00 JOINT 3JOINT 3
-
3395314-14600-00 NUTNUT
-
348CR-2384E-02-00 ARM, CONTROL 1ARM, CONTROL 1
-
358CR-23823-01-00 JOINT 2JOINT 2
-
3695317-12600-00 NUTNUT
-
378CR-2384F-02-00 ARM, CONTROL 2ARM, CONTROL 2
-
388CR-23832-00-00 JOINT 3JOINT 3
-
3995314-14600-00 NUTNUT
-
4090381-17110-00 BUSH, SOLIDBUSH, SOLID
-
4190387-1009K-00 COLLARCOLLAR
-
4290105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
448DF-23779-00-00 WASHERWASHER
-
4590267-48057-00 RIVET, BLINDRIVET, BLIND
-
4690105-121A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
488DJ-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
498CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
508DJ-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5190267-47186-00 RIVET, BLINDRIVET, BLIND
-
528CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
5390387-087L3-00 COLLARCOLLAR
-
5490105-08345-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568DJ-77371-10-00 EMBLEM 5EMBLEM 5
-
578DJ-77372-10-00 EMBLEM 6EMBLEM 6
