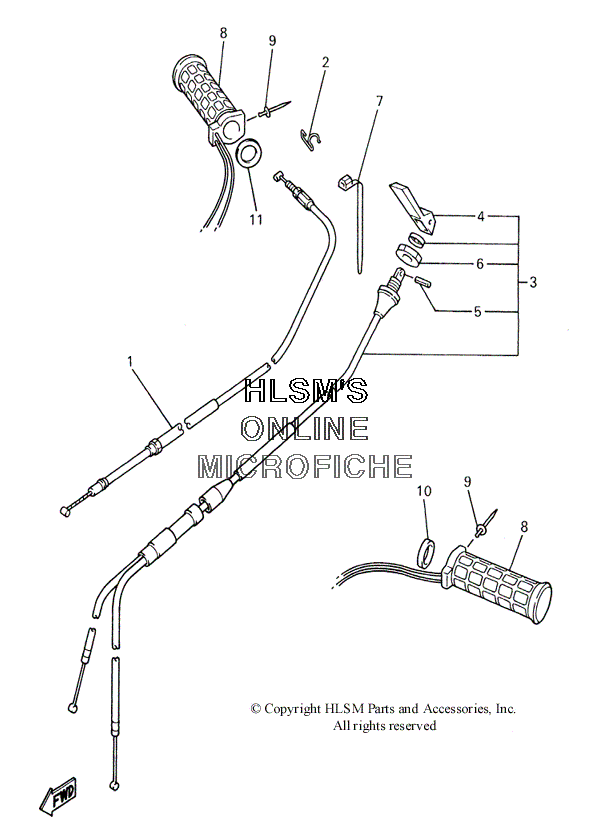

HANDLEBAR - CABLES AND GRIPS для Yamaha PHAZER 500 - 2000 года выпуска`
-
№АртикулНазвание
-
18DJ-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290465-10189-00 CLAMPCLAMP
-
38DJ-26330-01-00 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
48U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
68G8-26333-00-00 ...NUT...NUT
-
790464-13073-00 CLAMPCLAMP
-
888T-26240-00-00 GRIP ASSEMBLYGRIP ASSEMBLY
-
990267-40076-00 RIVET, BLINDRIVET, BLIND
-
1090387-22726-00 COLLARCOLLAR
-
1180Y-23843-00-00 WASHER, PLAINWASHER, PLAIN
Все узлы модели:
- AIR SHROUD W/ FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD ASSY
- DECALS
- DOUBLE SEAT ASSY.
- DRIVE TRAIN ASSEMBLY
- ELECTRIC STARTER COMPONENTS (OPTION)
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- GUARD - LUGGAGE BOX
- • HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE KIT (OPTION)
- SEAT ASSY
- SEAT ASSY (OPTION)
- SINGLE SEAT ASSY.
- STARTER - ELECTRICAL STARTER ASSY (OPTION)
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
