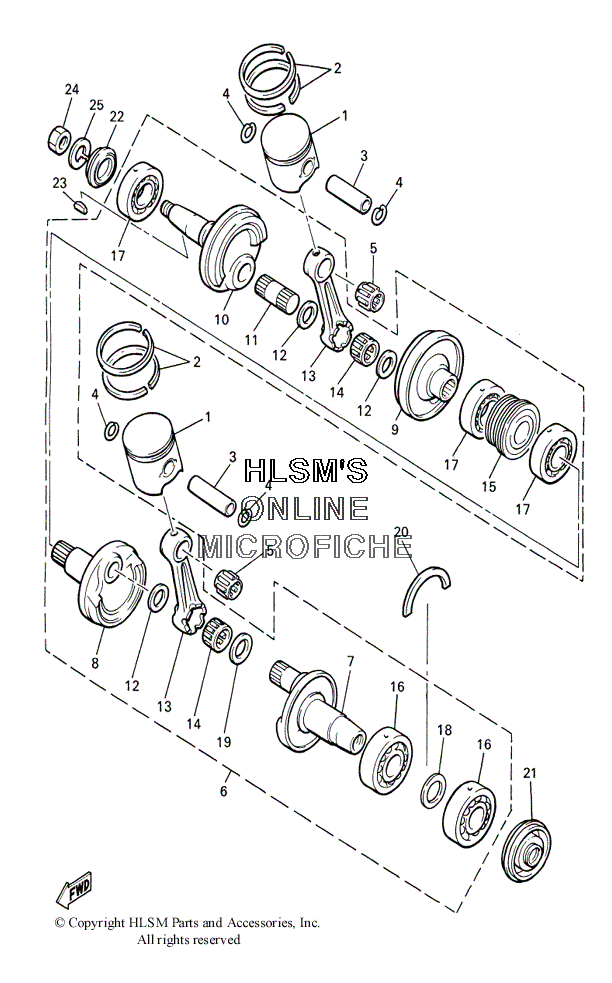

CRANKSHAFT W/ PISTON для Yamaha PHAZER 500 - 2000 года выпуска`
-
№АртикулНазвание
-
18DJ-11631-00-A0 PISTON (STD) (STD)PISTON (STD) (STD)
-
18DJ-11635-00-00 PISTON (0.25MM O/S) (AP)PISTON (0.25MM O/S) (AP)
-
18DJ-11636-00-00 PISTON (0.50MM O/S) (AP)PISTON (0.50MM O/S) (AP)
-
28DJ-11603-00-00 PISTON RING SET (STD) (STD)PISTON RING SET (STD) (STD)
-
28DJ-11603-10-00 PISTON RING SET (0.25MM O/S) (AP)PISTON RING SET (0.25MM O/S) (AP)
-
28DJ-11603-20-00 PISTON RING SET (0.50MM (O/S) AP)PISTON RING SET (0.50MM (O/S) AP)
-
3818-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-19052-00 CIRCLIP, INNERCIRCLIP, INNER
-
593310-218A6-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
68DJ-11400-00-00 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
789F-11412-01-00 ...CRANK 1...CRANK 1
-
88DJ-11422-00-00 ...CRANK 2...CRANK 2
-
98DJ-11432-00-00 ...CRANK 3...CRANK 3
-
108V0-11442-00-00 ...CRANK 4...CRANK 4
-
11857-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
1290209-24073-00 ...WASHER, SPEC'L SHAPE...WASHER, SPEC'L SHAPE
-
138V0-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1493310-524P8-00 ...BEARING...BEARING
-
158DJ-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
1693306-38201-00 ...BEARING...BEARING
-
1793306-28203-00 ...BEARING...BEARING
-
1890201-327F7-00 ...WASHER, PLATE...WASHER, PLATE
-
198A7-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
2093450-78091-00 CIRCLIP, INNERCIRCLIP, INNER
-
2193103-32151-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
2293103-32155-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
2390280-05014-00 KEY, WOODRUFFKEY, WOODRUFF
-
2490170-16425-00 NUTNUT
-
2592907-16600-00 WASHERWASHER
