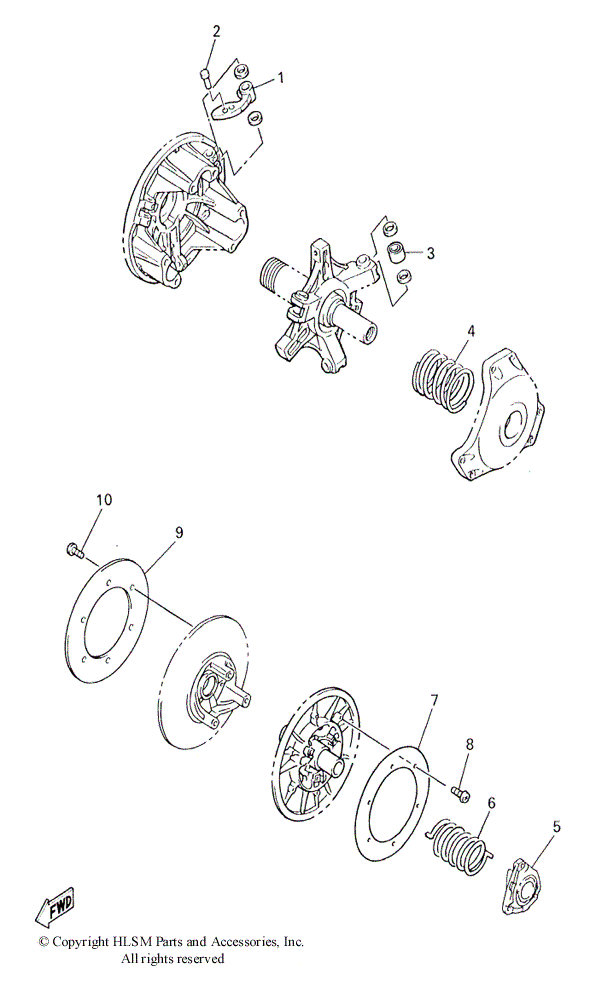

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha PHAZER 500 - 2000 года выпуска`

№

Артикул

Название
1

8AB-17605-10-00 WEIGHT COMP

WEIGHT COMP

10 700 ₽
1

8CH-17605-10-00 WEIGHT COMP

WEIGHT COMP

8 340 ₽
1

8CR-17605-10-00 WEIGHT COMP

WEIGHT COMP

10 700 ₽
1

8DF-17605-10-00 WEIGHT COMP

WEIGHT COMP

11 810 ₽
1

8DG-17605-00-00 WEIGHT COMP

WEIGHT COMP

8 500 ₽
1

8DJ-17605-00-00 WEIGHT COMP

WEIGHT COMP

7 550 ₽
1

8DN-17605-10-00 WEIGHT COMP

WEIGHT COMP

9 130 ₽
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM)

RIVET, COUNTERSUNK (ST10.3MM)

320 ₽
2

90261-06017-00 RIVET, COUNTERSUNK (ST11.3MM)

RIVET, COUNTERSUNK (ST11.3MM)

380 ₽
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM)

RIVET, COUNTERSUNK (ST13.3MM)

180 ₽
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM)

RIVET, COUNTERSUNK (AL10.3MM)

160 ₽
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM)

RIVET, COUNTERSUNK (ST17.2MM)

290 ₽
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM)

RIVET, COUNTERSUNK (ST13.9MM)

250 ₽
3

8CR-17624-00-00 ROLLER, COMP

ROLLER, COMP

8 500 ₽
3

8CR-17624-10-00 ROLLER, COMP

ROLLER, COMP

4 720 ₽
3

8CR-17624-20-00 ROLLER COMP

ROLLER COMP

6 920 ₽
3

8CR-17624-30-00 ROLLER, COMP

ROLLER, COMP

6 920 ₽
4

90501-481J1-00 SPRING, COMPRESSION (SL-BL-SL)

SPRING, COMPRESSION (SL-BL-SL)

6 450 ₽
4

90501-487G8-00 SPRING, COMPRESSION (GOLD)

SPRING, COMPRESSION (GOLD)

4 250 ₽
4

90501-507G2-00 SPRING, COMPRESSION (GO-BL-GO)

SPRING, COMPRESSION (GO-BL-GO)

4 400 ₽
4

90501-507G7-00 SPRING, COMPRESSION (R-GR-R)

SPRING, COMPRESSION (R-GR-R)

4 250 ₽
4

90501-521J6-00 SPRING, COMPRESSION (GO-P-GO)

SPRING, COMPRESSION (GO-P-GO)

3 300 ₽
4

90501-524G4-00 SPRING, COMPRESSION (R-Y-R)

SPRING, COMPRESSION (R-Y-R)

3 300 ₽
4

90501-524G5-00 SPRING, COMPRESSION (GO-Y-GO)

SPRING, COMPRESSION (GO-Y-GO)

3 300 ₽
4

90501-525J8-00 SPRING, COMPRESSION (BL-P-BL)

SPRING, COMPRESSION (BL-P-BL)

4 400 ₽
4

90501-526G4-00 SPRING, COMPRESSION (BL-GO-BL)

SPRING, COMPRESSION (BL-GO-BL)

4 250 ₽
4

90501-526J9-00 SPRING, COMPRESSION (R-P-R)

SPRING, COMPRESSION (R-P-R)

3 300 ₽
4

90501-527G1-00 SPRING, COMPRESSION (R-BL-R)

SPRING, COMPRESSION (R-BL-R)

4 400 ₽
4

90501-550J8-00 SPRING, COMPRESSION (WH-P-WH)

SPRING, COMPRESSION (WH-P-WH)

4 250 ₽
4

90501-553G0-00 SPRING, COMPRESSION (BL-Y-BL)

SPRING, COMPRESSION (BL-Y-BL)

4 250 ₽
4

90501-553G6-00 SPRING, COMPRESSION (WH-Y-WH)

SPRING, COMPRESSION (WH-Y-WH)

3 300 ₽
4

90501-555J9-00 SPRING, COMPRESSION (WH-SL-WH)

SPRING, COMPRESSION (WH-SL-WH)

4 400 ₽
4

90501-556G5-00 SPRING, COMPRESSION (WH-BL-WH)

SPRING, COMPRESSION (WH-BL-WH)

4 400 ₽
4

90501-556G6-00 SPRING, COMPRESSION (BLUE)

SPRING, COMPRESSION (BLUE)

5 030 ₽
4

90501-556G7-00 SPRING, COMPRESSION (Y-BL-Y)

SPRING, COMPRESSION (Y-BL-Y)

4 400 ₽
4

90501-557G5-00 SPRING, COMPRESSION (Y-GO-Y)

SPRING, COMPRESSION (Y-GO-Y)

4 250 ₽
4

90501-557G6-00 SPRING, COMPRESSION (WH-GO-WH)

SPRING, COMPRESSION (WH-GO-WH)

4 250 ₽
4

90501-581J7-00 SPRING, COMPRESSION (YELLOW)

SPRING, COMPRESSION (YELLOW)

5 030 ₽
4

90501-582J1-00 SPRING, COMPRESSION (Y-P-Y)

SPRING, COMPRESSION (Y-P-Y)

4 400 ₽
4

90501-585J3-00 SPRING, COMPRESSION (GR-P-GR)

SPRING, COMPRESSION (GR-P-GR)

3 300 ₽
4

90501-586J0-00 SPRING, COMPRESSION (Y-SL-Y)

SPRING, COMPRESSION (Y-SL-Y)

3 300 ₽
4

90501-602J0-00 SPRING, COMPRESSION (PINK)

SPRING, COMPRESSION (PINK)

3 300 ₽
4

90501-604G0-00 SPRING, COMPRESSION (P-Y-P)

SPRING, COMPRESSION (P-Y-P)

3 300 ₽
4

90501-605G7-00 SPRING, COMPRESSION (GR-Y-GR)

SPRING, COMPRESSION (GR-Y-GR)

3 300 ₽
4

90501-605J5-00 SPRING, COMPRESSION (OR-P-OR)

SPRING, COMPRESSION (OR-P-OR)

3 300 ₽
4

90501-606G9-00 SPRING, COMPRESSION (P-BL-P)

SPRING, COMPRESSION (P-BL-P)

4 400 ₽
4

90501-607G0-00 SPRING, COMPRESSION (GR-BL-GR)

SPRING, COMPRESSION (GR-BL-GR)

4 400 ₽
4

90501-607G3-00 SPRING, COMPRESSION (P-GO-P)

SPRING, COMPRESSION (P-GO-P)

4 250 ₽
4

90501-607G4-00 SPRING, COMPRESSION (GR-GO-GR)

SPRING, COMPRESSION (GR-GO-GR)

4 250 ₽
5

8BV-17604-11-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-31-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-51-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-71-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
5

8BV-17604-91-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
6

90508-500B1-00 SPRING, TORSION

SPRING, TORSION

2 200 ₽
6

90508-536A9-00 SPRING, TORSION

SPRING, TORSION

2 200 ₽
6

90508-556A2-00 SPRING, TORSION

SPRING, TORSION

3 300 ₽
6

90508-556A7-00 SPRING, TORSION

SPRING, TORSION

4 400 ₽
7

8CM-17665-00-00 PLATE 1

PLATE 1

4 250 ₽
8

90150-05040-00 SCREW, ROUND HEAD

SCREW, ROUND HEAD

150 ₽
9

8CM-17675-00-00 PLATE 2

PLATE 2

4 250 ₽
10

90150-05040-00 SCREW, ROUND HEAD

SCREW, ROUND HEAD

150 ₽
