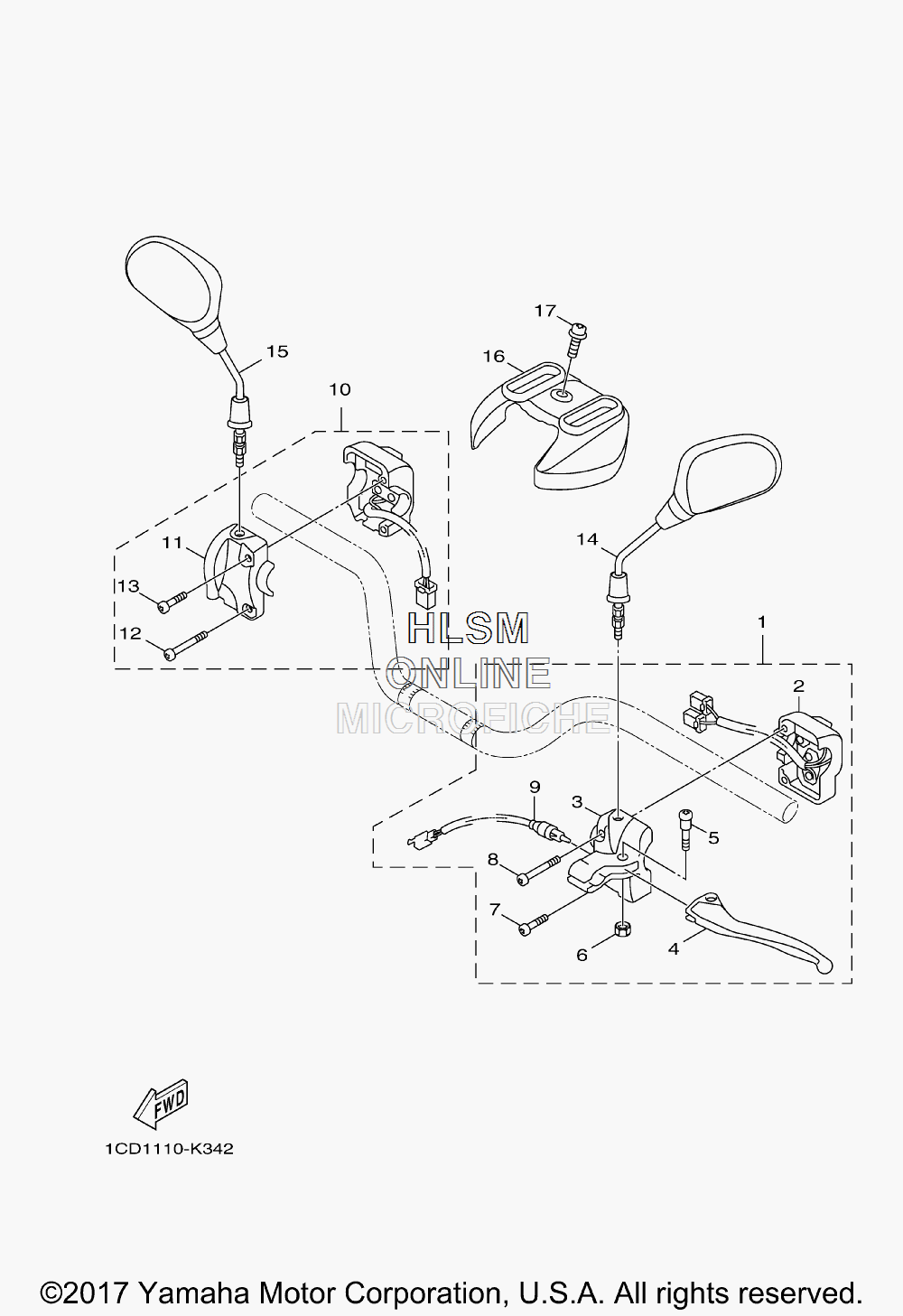

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA 50FX - 2018 года выпуска
-
№АртикулНазвание
-
11VC-H2910-03-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
21VC-H398E-00-00 ...SWITCH CASE ASSY...SWITCH CASE ASSY
-
35S9-H2913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
41CE-H3912-00-00 ...LEVER 1...LEVER 1
-
53XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
695607-05100-00 ...NUT, U...NUT, U
-
798507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
898507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
91VC-H3980-01-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
101CD-H3976-11-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
115S9-H3987-00-00 ...CASE, SWITCH LOWER...CASE, SWITCH LOWER
-
1298507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1398507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
145SU-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
155SU-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
165S9-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
1790159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
