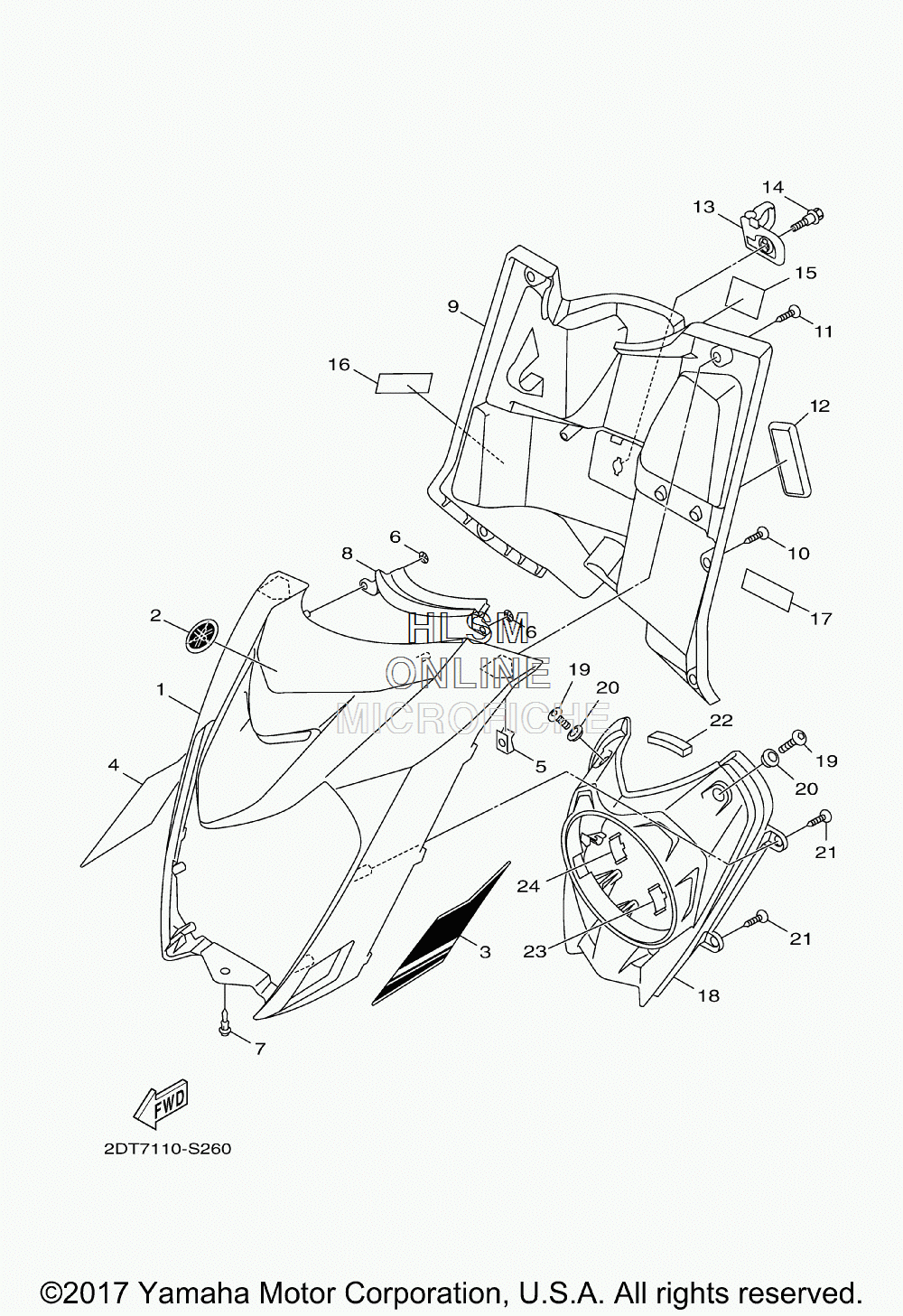

COWLING W/ LEG SHIELD для Yamaha ZUMA 50FX - 2018 года выпуска`
-
№АртикулНазвание
-
12DT-F8311-00-P3 LEG SHIELD 1 (LNMH - LIGHT GRAY)LEG SHIELD 1 (LNMH - LIGHT GRAY)
-
12DT-F8311-00-EY LEG SHIELD 1 (HTR - HEAT RED)LEG SHIELD 1 (HTR - HEAT RED)
-
25TY-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
32DT-F8393-00-00 GRAPHIC 3 (LNMH - LIGHT GRAY)GRAPHIC 3 (LNMH - LIGHT GRAY)
-
32DT-F8393-10-00 GRAPHIC 3 (HTR - HEAT RED)GRAPHIC 3 (HTR - HEAT RED)
-
42DT-F8394-00-00 GRAPHIC 4 (LNMH - LIGHT GRAY)GRAPHIC 4 (LNMH - LIGHT GRAY)
-
42DT-F8394-10-00 GRAPHIC 4 (HTR - HEAT RED)GRAPHIC 4 (HTR - HEAT RED)
-
590183-05816-00 NUT, SPRINGNUT, SPRING
-
690183-04005-00 NUT, SPRINGNUT, SPRING
-
790269-06803-00 RIVETRIVET
-
82DT-F8361-00-00 PLATE, FRONTPLATE, FRONT
-
91CD-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1197707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
125FM-F8349-00-00 CAPCAP
-
131CF-F8379-00-00 HOOKHOOK
-
1490109-06872-00 BOLTBOLT
-
151CD-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
161CD-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
172DT-F118B-00-00 PLATE, APPROVAL USPLATE, APPROVAL US
-
182DT-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
1990111-06843-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2090387-068C3-00 COLLARCOLLAR
-
2197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
225ML-H2176-00-00 DAMPERDAMPER
-
232DT-H4385-00-00 CAP, 1CAP, 1
-
242DT-H4386-00-00 CAP, 2CAP, 2
