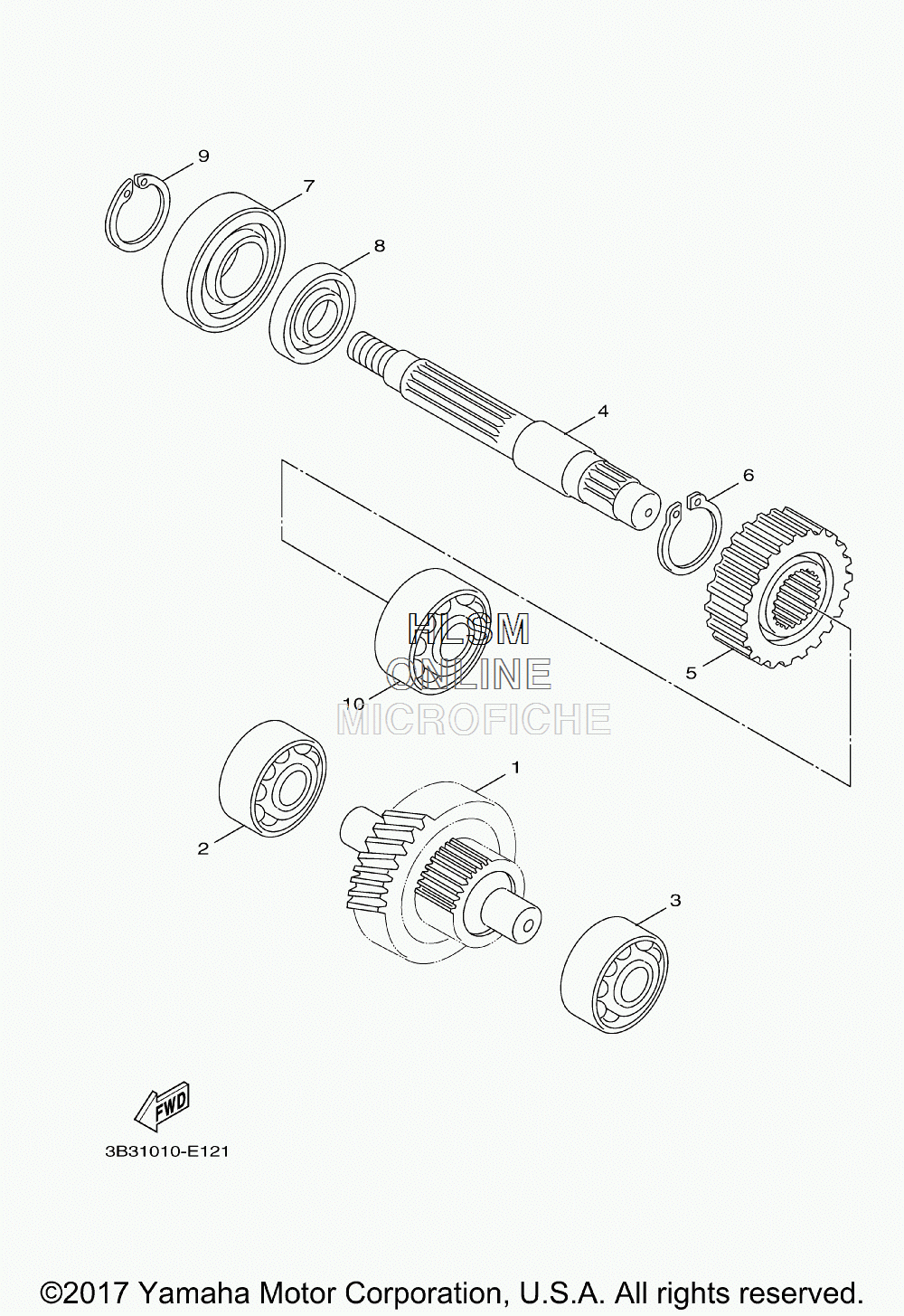

TRANSMISSION для Yamaha ZUMA 50FX - 2017 года выпуска
-
№АртикулНазвание
-
13B3-E7410-00-00 MAIN AXLE COMP.MAIN AXLE COMP.
-
293306-301Y1-00 BEARINGBEARING
-
393306-301Y1-00 BEARINGBEARING
-
41VC-E7421-00-00 AXLE, DRIVEAXLE, DRIVE
-
53B3-E7211-00-00 GEAR, 1ST WHEELGEAR, 1ST WHEEL
-
693410-20823-00 CIRCLIPCIRCLIP
-
793306-004X7-00 BEARINGBEARING
-
893102-25804-00 OIL SEALOIL SEAL
-
999009-42500-00 CIRCLIPCIRCLIP
-
1093306-203YA-00 BEARINGBEARING
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- REAR ARM
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- TAILLIGHT ASSY.
- • TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
