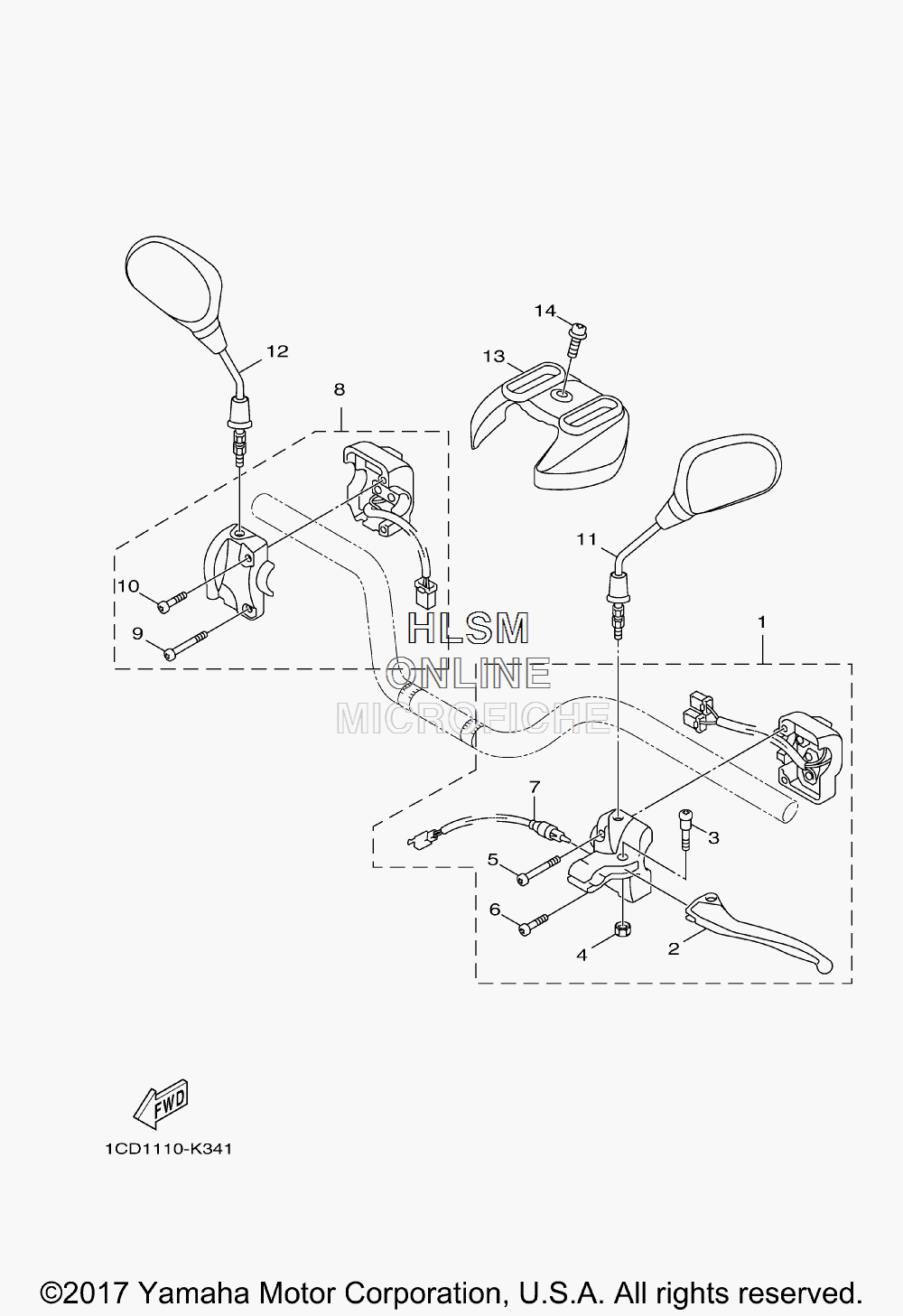

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA 50FX - 2017 года выпуска`
-
№АртикулНазвание
-
11VC-H2910-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
21CE-H3912-00-00 ...LEVER 1...LEVER 1
-
33XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
495607-05100-00 ...NUT, U...NUT, U
-
598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
71VC-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
81CD-H3976-11-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
998507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1098507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
115SU-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
125SU-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
135S9-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
1490159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
