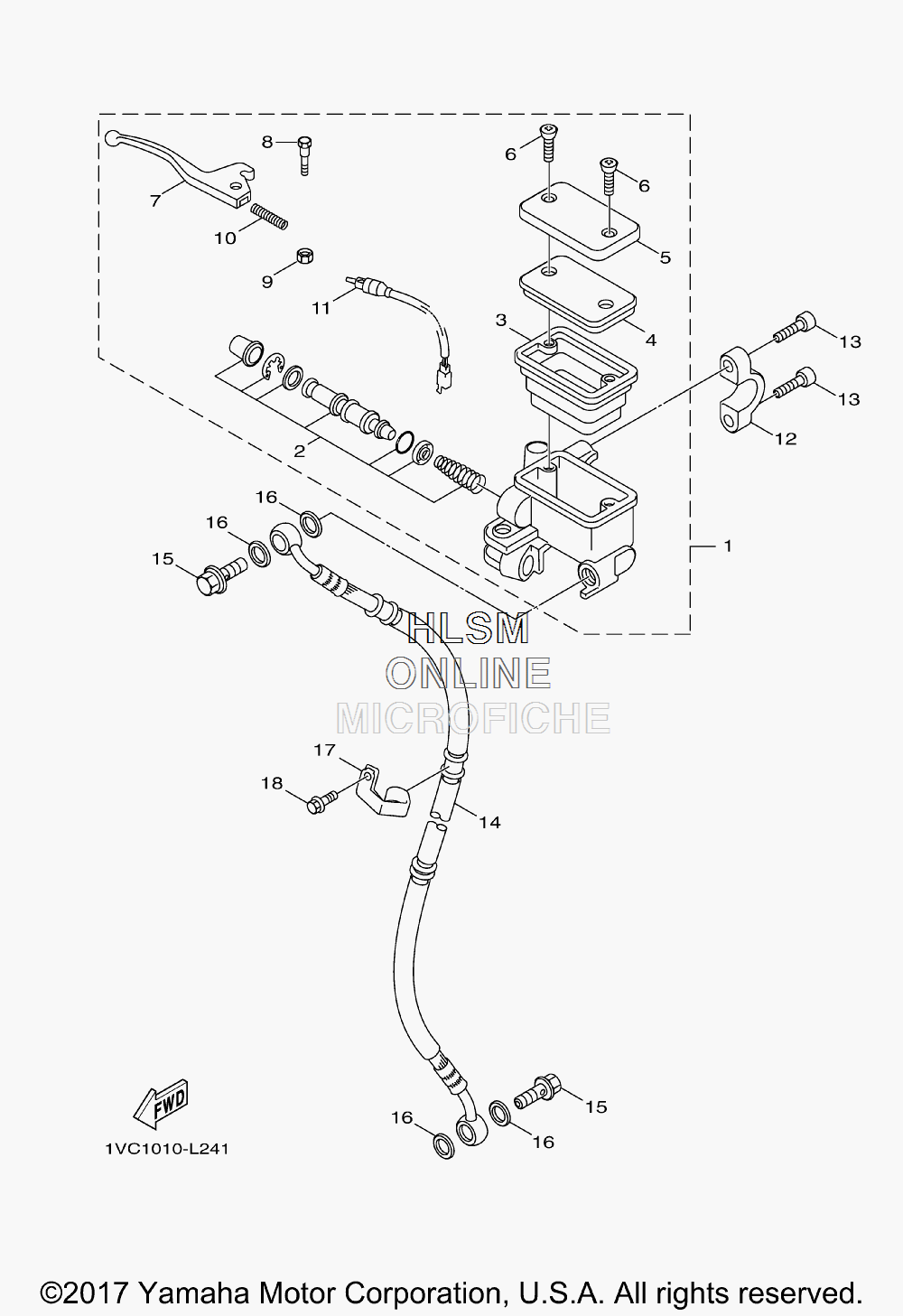

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA 50F - 2017 года выпуска`
-
№АртикулНазвание
-
132S-F5870-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25S9-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35S9-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45S9-F585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
55S9-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
698707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
71DN-H3922-00-00 ...LEVER 2...LEVER 2
-
841D-H3945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995607-06100-00 ...NUT, U...NUT, U
-
1090501-10312-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1132S-H3980-20-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
125S9-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1391317-06025-00 BOLT, HEX, SOCKET HEADBOLT, HEX, SOCKET HEAD
-
141VC-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1590401-10805-00 BOLT, UNIONBOLT, UNION
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
171VC-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1895807-06012-00 BOLT, FLANGEBOLT, FLANGE
