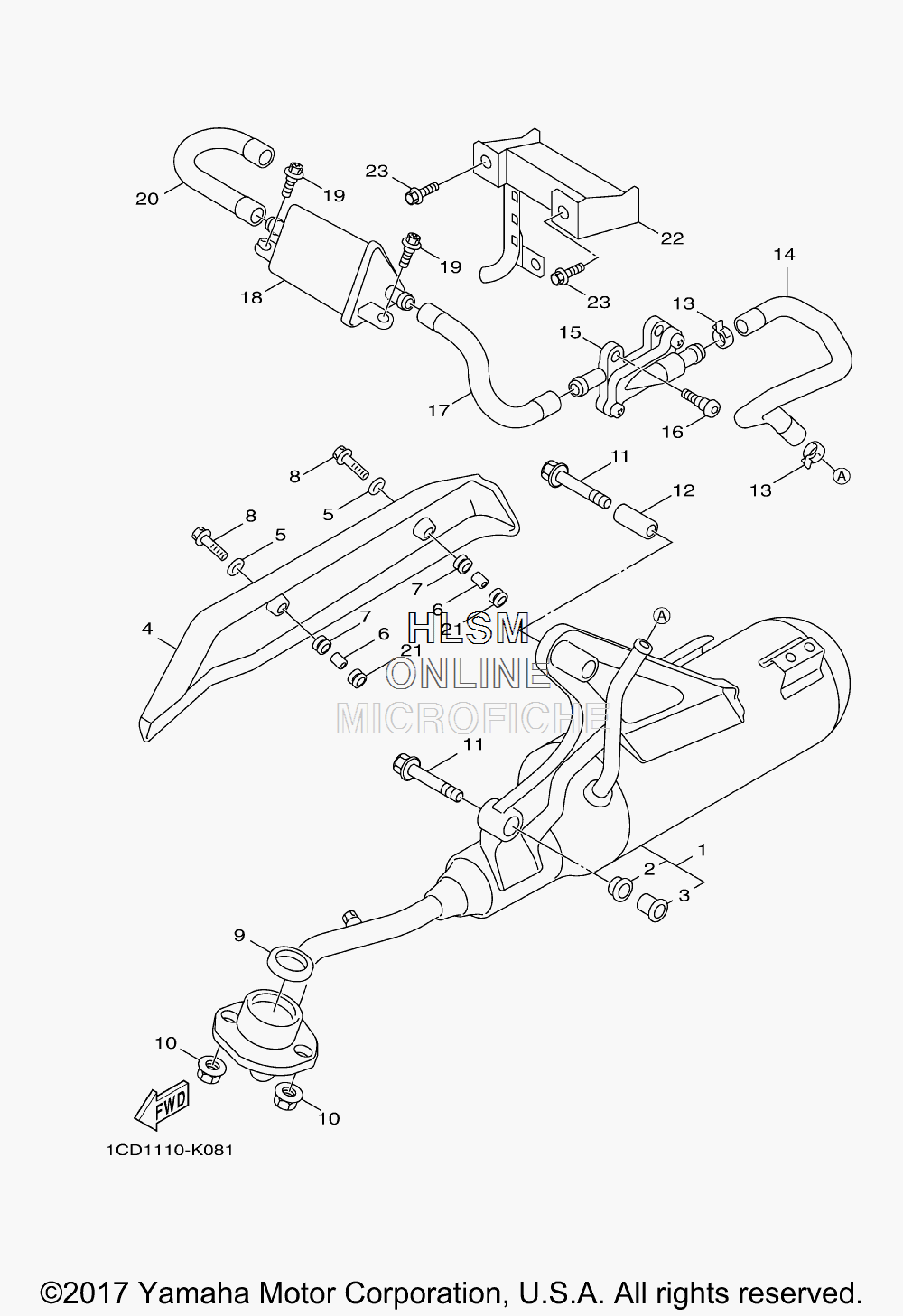

EXHAUST ASSY. для Yamaha ZUMA 50F - 2017 года выпуска`
-
№АртикулНазвание
-
11CD-WE461-00-98 EXHAUST PIPE ASSY 1 (LGB - GLOSS BLACK)EXHAUST PIPE ASSY 1 (LGB - GLOSS BLACK)
-
23B3-E4445-00-00 ...GROMMET...GROMMET
-
34VP-E4779-00-00 ...COLLAR...COLLAR
-
41CD-E4708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
590201-06055-00 WASHER, PLATEWASHER, PLATE
-
690387-06870-00 COLLARCOLLAR
-
790480-12809-00 GROMMETGROMMET
-
898980-06016-00 SCREW, BINDSCREW, BIND
-
91P4-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1095707-08500-00 NUT, FLANGENUT, FLANGE
-
1195817-08060-00 BOLT, FLANGEBOLT, FLANGE
-
123B3-E479M-00-00 COLLAR 1COLLAR 1
-
1390468-08812-00 CLIPCLIP
-
141CD-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
-
153B3-E4803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
1692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
171CD-E4884-00-00 HOSE, BEND 4HOSE, BEND 4
-
184CW-E4806-00-00 AIR FILTER CASE ASSY.AIR FILTER CASE ASSY.
-
1995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
201CD-E4885-00-00 HOSE, BEND 5HOSE, BEND 5
-
2190480-10803-00 GROMMETGROMMET
-
221CD-F1652-00-00 PROTECTORPROTECTOR
-
2390109-06043-00 BOLTBOLT
