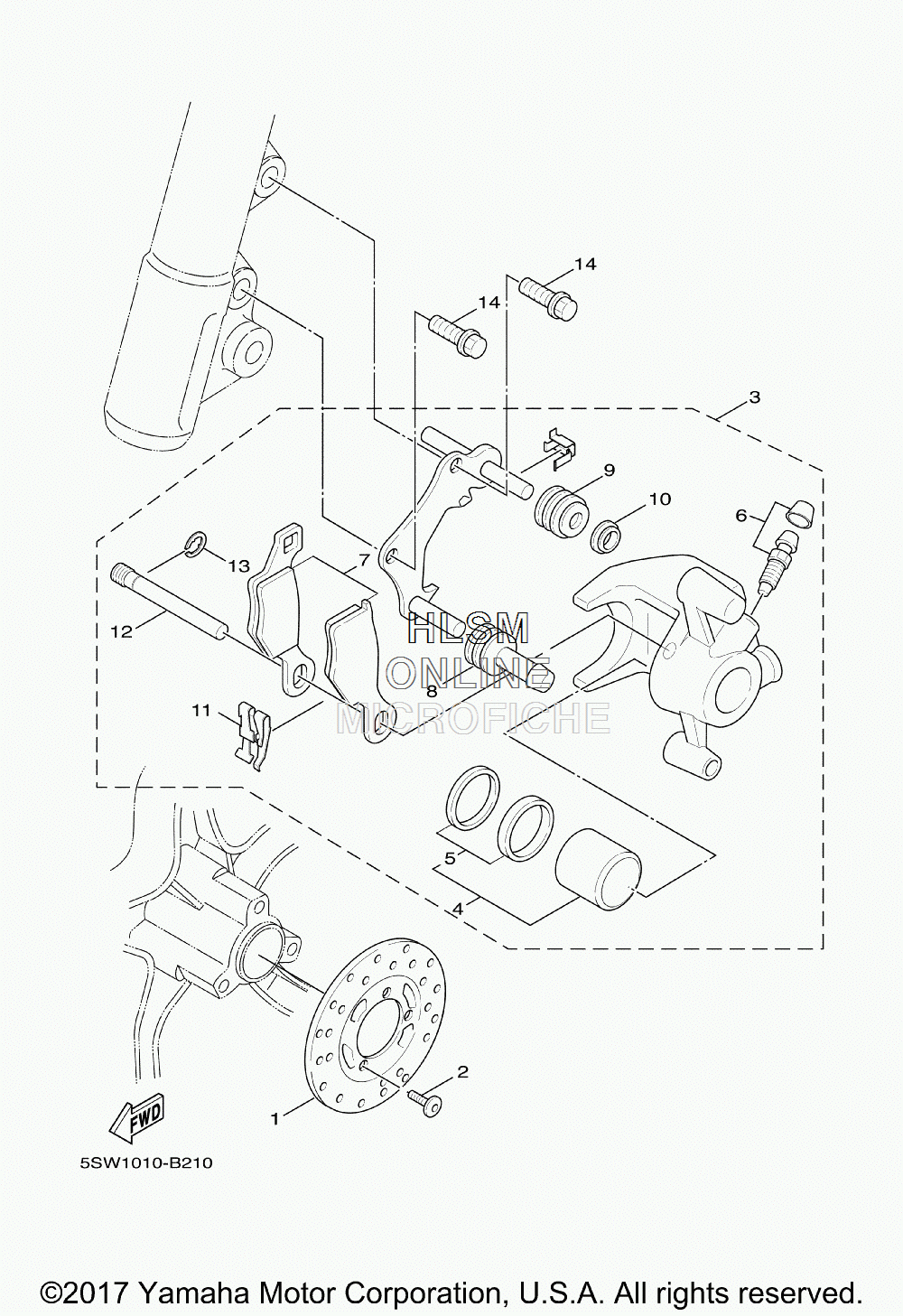

BRAKE - FRONT CALIPER для Yamaha ZUMA 50F - 2017 года выпуска`
-
№АртикулНазвание
-
11CD-F582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290110-10811-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35SU-F580T-31-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45SU-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55SU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65SU-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
75SU-W0045-02-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
85SU-F5917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95SU-F5937-00-00 ...BOOT 2...BOOT 2
-
105SU-F5913-00-00 ...RETAINER...RETAINER
-
115SU-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
125SU-F5924-20-00 ...PIN, PAD...PIN, PAD
-
135SU-F5925-00-00 ...CLIP...CLIP
-
1495827-08020-00 BOLT, FLANGEBOLT, FLANGE
