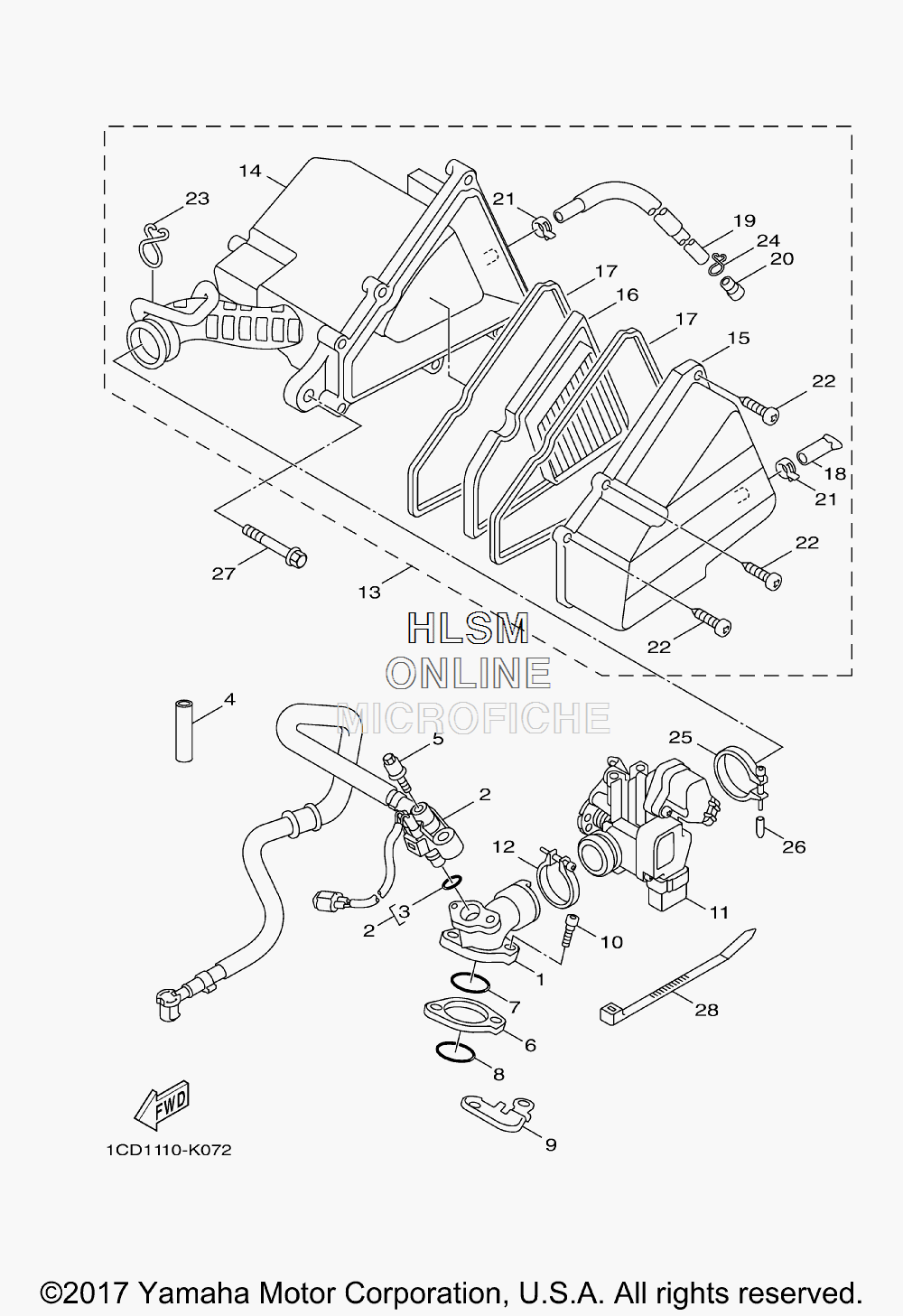

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA 50F - 2017 года выпуска`
-
№АртикулНазвание
-
113P-E3585-01-00 MANIFOLDMANIFOLD
-
21CD-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 ...O-RING...O-RING
-
41CD-E442F-00-00 PROTECTORPROTECTOR
-
590109-06834-00 BOLTBOLT
-
63B3-E3595-00-00 JOINTJOINT
-
793210-22803-00 O-RINGO-RING
-
893210-22803-00 O-RINGO-RING
-
91CD-E4255-00-00 PLATEPLATE
-
1091317-06025-00 BOLT, HEX, SOCKET HEADBOLT, HEX, SOCKET HEAD
-
113B3-E3750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
123B3-E3575-00-00 BANDBAND
-
131CD-E4410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
141CD-WE441-00-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
153B3-WE442-01-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
163B3-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
173B3-E4467-00-00 ...SEAL...SEAL
-
183B3-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
193B3-E443H-00-00 ...PIPE, DRAIN 3...PIPE, DRAIN 3
-
203B3-E4191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2190467-12804-00 ...CLIP...CLIP
-
2297707-50025-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2390467-16829-00 ...CLIP...CLIP
-
2490467-10803-00 ...CLIP...CLIP
-
253B3-E3474-00-00 BANDBAND
-
261CD-E4169-00-00 CAPCAP
-
2795827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2890464-26800-00 CLAMPCLAMP
