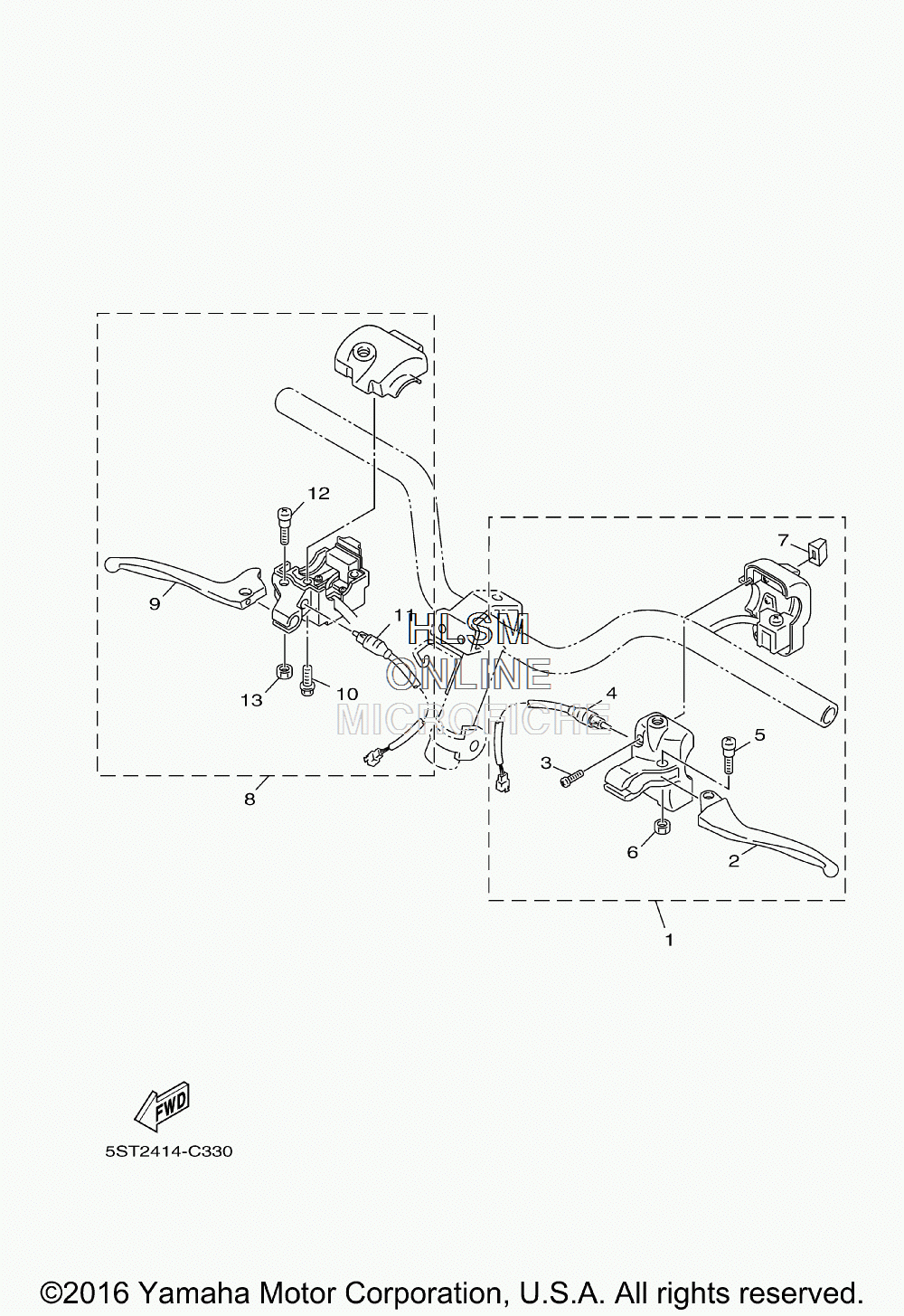

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha VINO CLASSIC [XC50G] - 2016 года выпуска`
-
№АртикулНазвание
-
137B-H2910-32-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
213P-H3912-00-00 ...LEVER 1...LEVER 1
-
398507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
437B-H3980-21-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
53XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
695607-05100-00 ...NUT, U...NUT, U
-
75SU-H357H-00-00 ...KNOB...KNOB
-
83D1-H2920-13-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
913P-H3922-10-00 ...LEVER 2...LEVER 2
-
1098507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1137B-H3980-21-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
123XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
1395607-05100-00 ...NUT, U...NUT, U
