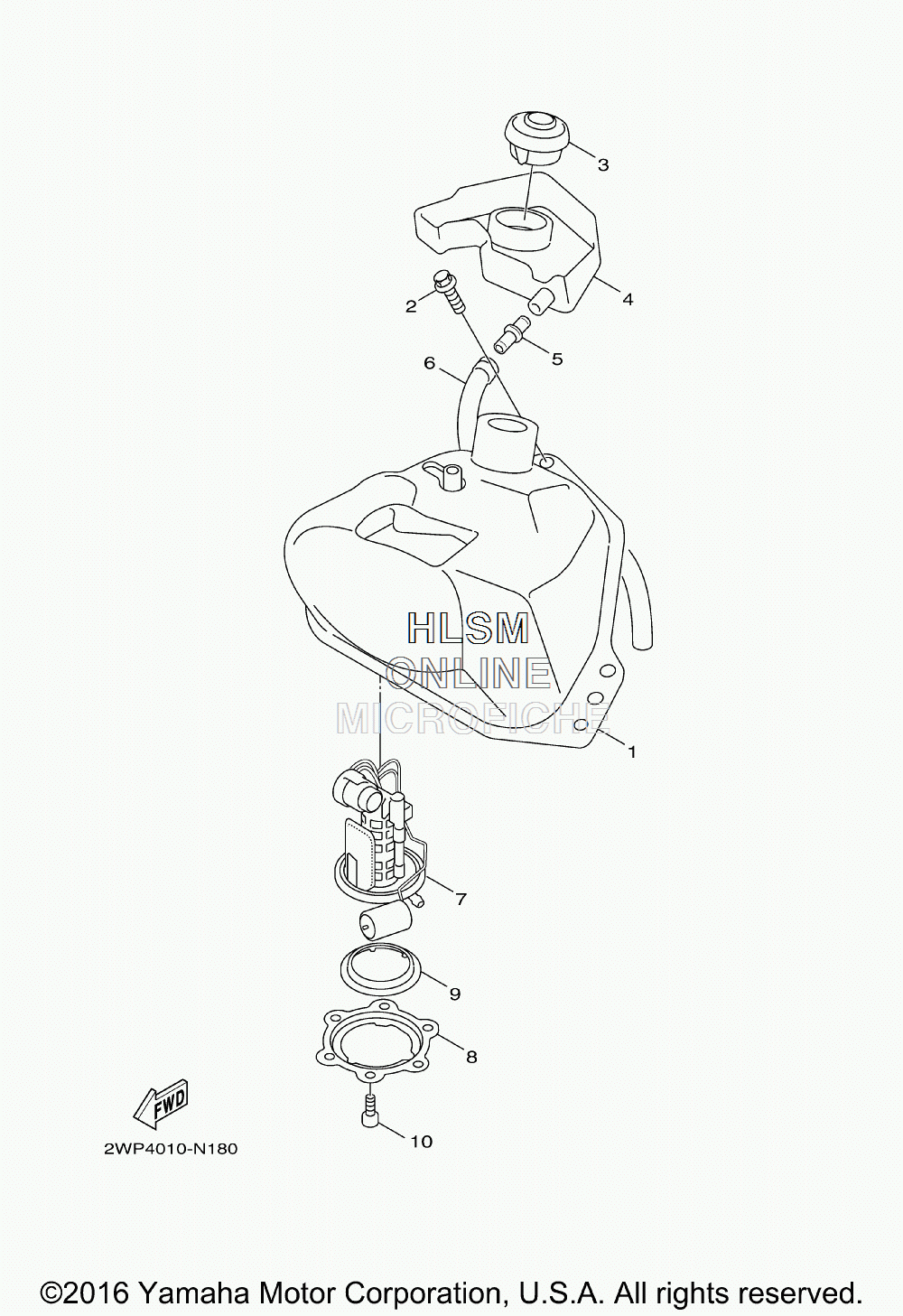

FUEL TANK ASSY. для Yamaha VINO CLASSIC [XC50G] - 2016 года выпуска
-
№АртикулНазвание
-
113P-F4110-10-33 FUEL TANK COMP. (YB)FUEL TANK COMP. (YB)
-
295827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
35ST-F4602-43-00 CAP ASSYCAP ASSY
-
45ST-F414A-00-00 COVER, FILLERCOVER, FILLER
-
55ML-F1753-01-00 BOSS, CONNECTORBOSS, CONNECTOR
-
613P-F4318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
73P3-E3907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
813P-F4491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
91S4-24486-00-00 O-RINGO-RING
-
1091317-05010-00 BOLTBOLT
