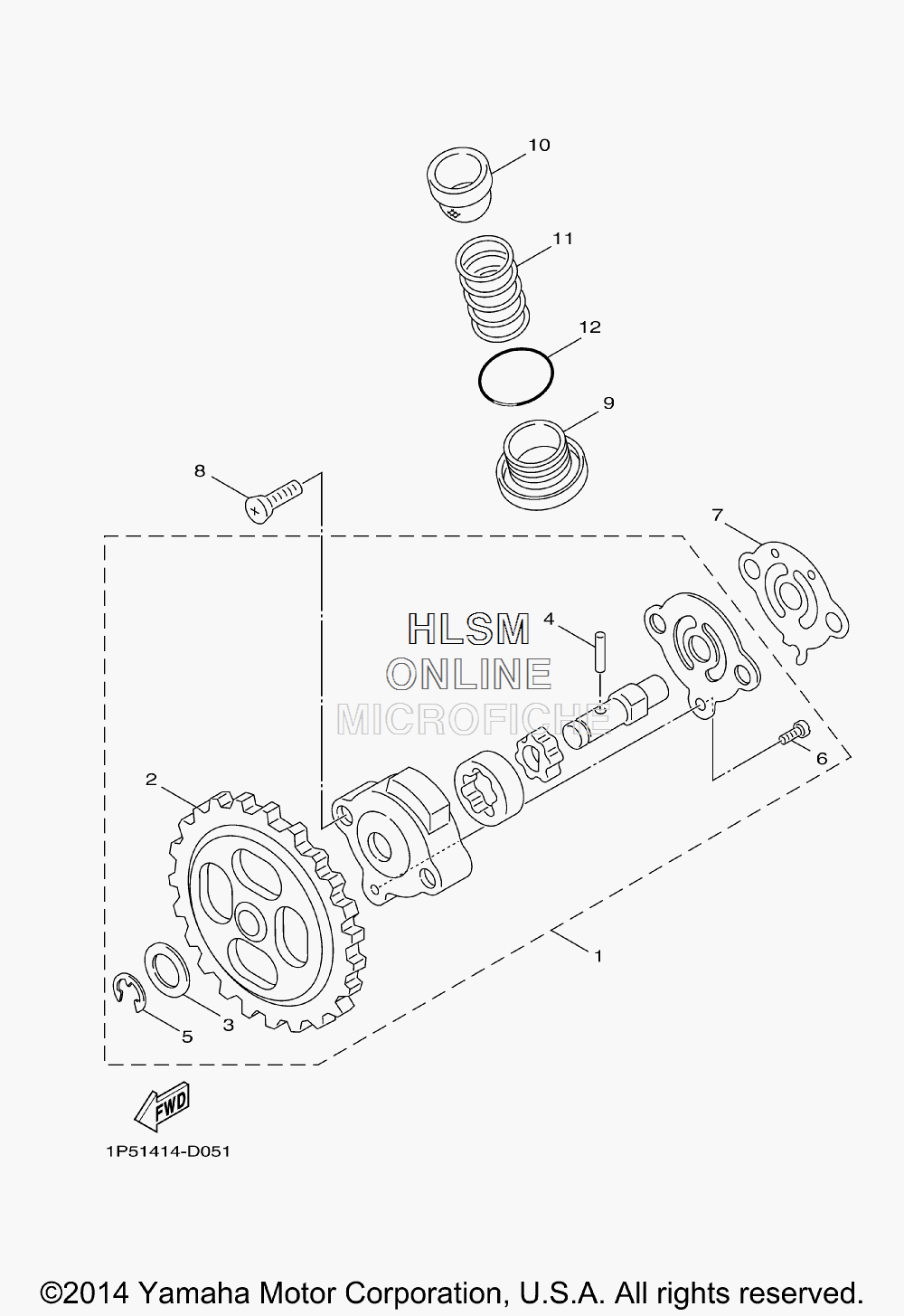

OIL PUMP для Yamaha ZUMA 125 - 2015 года выпуска
-
№АртикулНазвание
-
11P3-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21P3-E3325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
31P3-E3318-00-00 ...WASHER...WASHER
-
41P3-E3362-00-00 ...ROLLER...ROLLER
-
51P3-E3364-00-00 ...CIRCLIP...CIRCLIP
-
65ST-E3365-00-00 ...SCREW PAN HEAD...SCREW PAN HEAD
-
75ML-E3475-00-00 GASKETGASKET
-
898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95ML-E5351-20-00 PLUG, DRAINPLUG, DRAIN
-
105ML-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
1190501-16004-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1293210-29800-00 O-RINGO-RING
