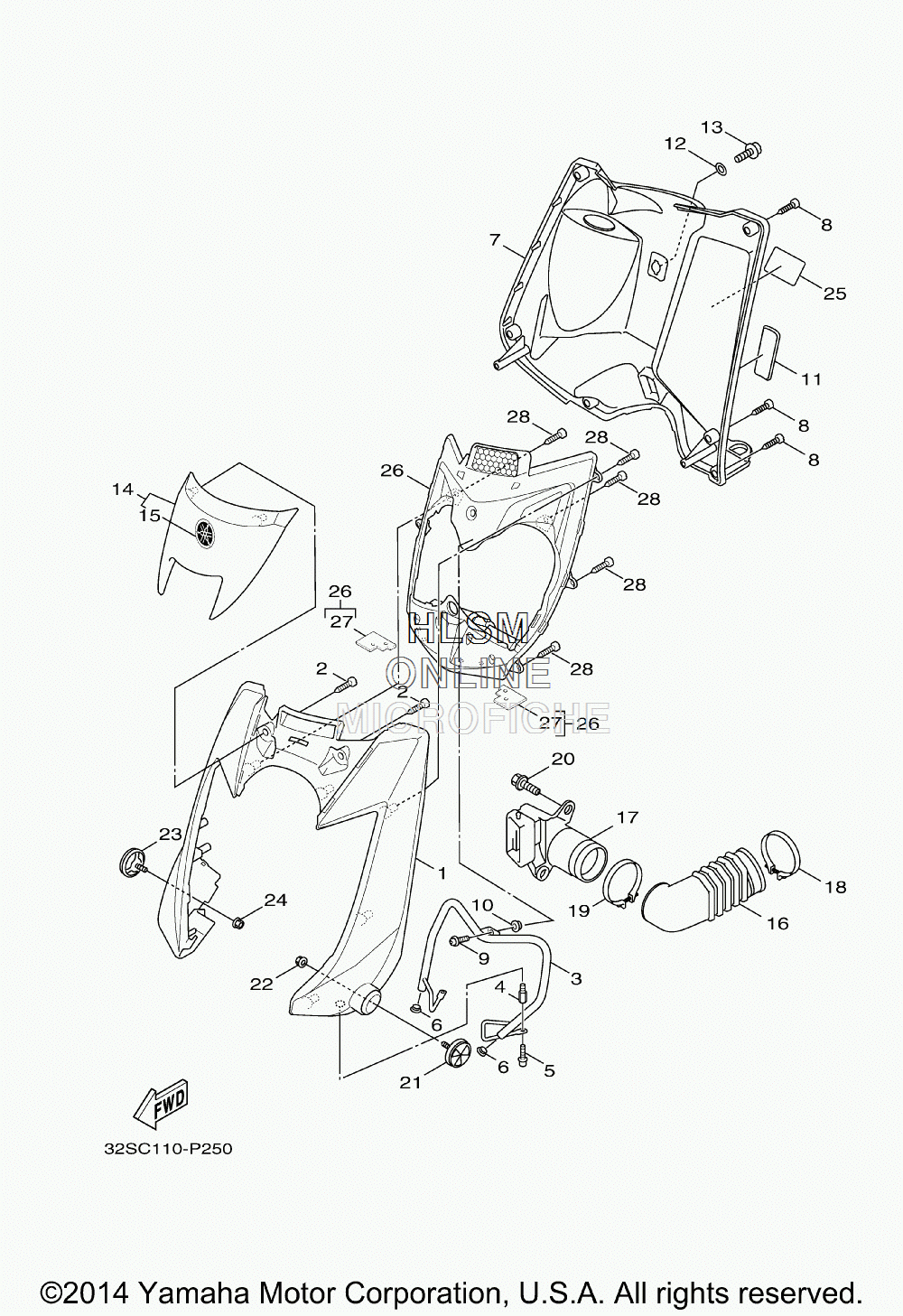

COWLING W/ LEG SHIELD для Yamaha ZUMA 125 - 2015 года выпуска`
-
№АртикулНазвание
-
132S-F8311-01-WL LEG SHIELD 1 (STDS)LEG SHIELD 1 (STDS)
-
132S-F8311-01-T9 LEG SHIELD 1 (COMS)LEG SHIELD 1 (COMS)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
332S-F840K-00-7M GUARD COMP. (MIDNIGHT SILVER)GUARD COMP. (MIDNIGHT SILVER)
-
45S9-F1535-00-00 NUT 1NUT 1
-
590110-06851-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690338-16801-00 PLUGPLUG
-
75S9-F8312-00-00 LEG SHIELD 2LEG SHIELD 2
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1090387-068C3-00 COLLARCOLLAR
-
115FM-F8349-00-00 CAPCAP
-
1290201-068A5-00 WASHER, PLATEWASHER, PLATE
-
1390159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1432S-XF834-00-P3 MOLE 1 (STDS)MOLE 1 (STDS)
-
1432S-XF834-00-EY MOLE 1 (COMS)MOLE 1 (COMS)
-
155NW-F152A-00-00 ...EMBLEM 3...EMBLEM 3
-
165ML-F838N-01-00 DUCT 1DUCT 1
-
175ML-F838R-00-00 DUCT 2DUCT 2
-
185CA-F1823-20-00 CLAMP, HOSECLAMP, HOSE
-
1990450-53061-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090109-063F1-00 BOLTBOLT
-
2132S-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
2295707-06500-00 NUT, FLANGENUT, FLANGE
-
2332S-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
2495707-06500-00 NUT, FLANGENUT, FLANGE
-
2524P-F1668-00-00 LABEL, TIRELABEL, TIRE
-
2632S-XH414-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
274VP-H4368-00-00 ...DAMPER 3...DAMPER 3
-
2897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
