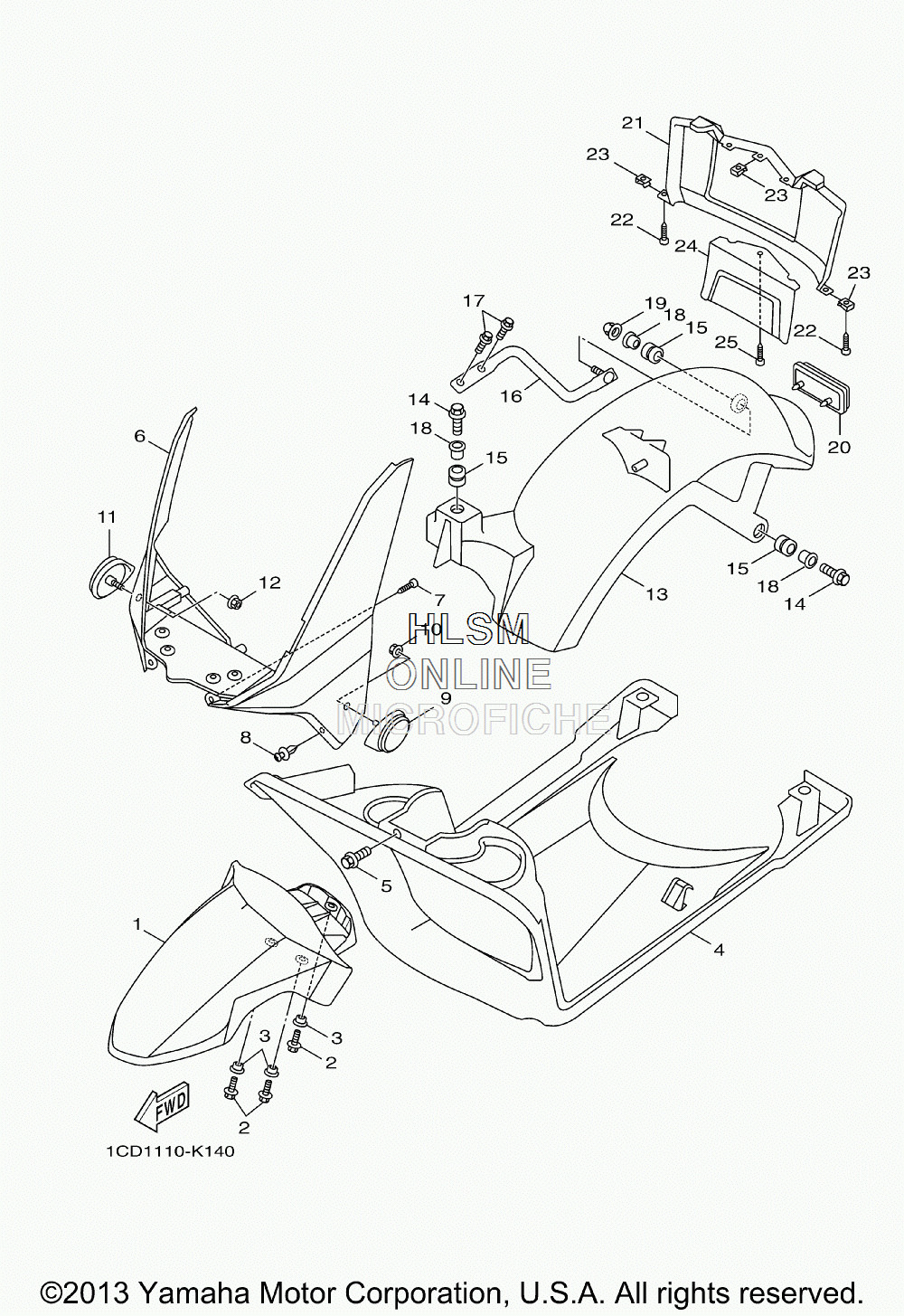

FENDER - FRONT / REAR для Yamaha ZUMA 50F - 2014 года выпуска`
-
№АртикулНазвание
-
11CD-F1511-00-00 FENDER, FRONTFENDER, FRONT
-
290119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390387-068F8-00 COLLARCOLLAR
-
41VC-F1552-00-00 FENDER, INNERFENDER, INNER
-
590119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
61CD-F1519-00-00 MOLE, FENDERMOLE, FENDER
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
890269-06808-00 RIVETRIVET
-
91CD-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
111CD-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
-
133B3-F1611-01-00 FENDER, REARFENDER, REAR
-
1490119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590480-12237-00 GROMMETGROMMET
-
163B3-F1613-00-00 STAY, FENDER 1STAY, FENDER 1
-
1795817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-087L0-00 COLLARCOLLAR
-
1990176-06008-00 NUT, CROWNNUT, CROWN
-
203B3-H5150-00-00 PANEL, SIDEPANEL, SIDE
-
211CD-F1629-00-00 GUARD, MUDGUARD, MUD
-
2297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2390183-05816-00 NUT, SPRINGNUT, SPRING
-
241CD-F162S-00-00 GUARD, DRESSGUARD, DRESS
-
2590169-05800-00 TAPPING SCREWTAPPING SCREW
