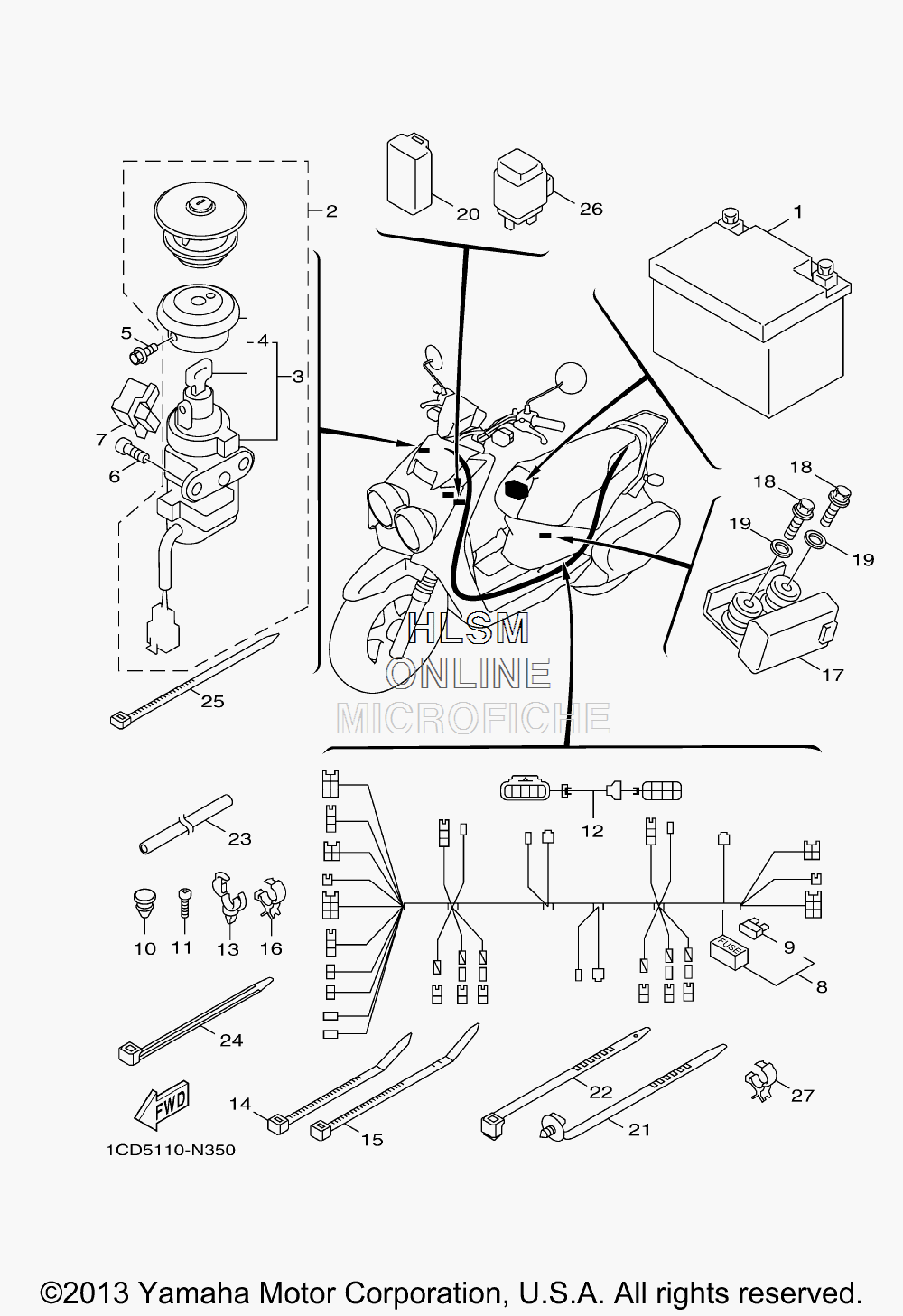

ELECTRICAL 2 для Yamaha ZUMA 50F - 2014 года выпуска`
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
21CD-WH203-01-00 KEY SETKEY SET
-
31CD-H2501-00-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
41CD-WH250-00-A0 ......SHUTTER & BLANK KEY (*1)......SHUTTER & BLANK KEY (*1)
-
41CD-WH250-00-C0 ......SHUTTER & BLANK KEY (*2)......SHUTTER & BLANK KEY (*2)
-
590119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
73D0-H2155-00-00 BANDBAND
-
81CD-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
105SU-H2119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
123B3-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1390464-20803-00 CLAMPCLAMP
-
1490464-26800-00 CLAMPCLAMP
-
1590464-40801-00 CLAMPCLAMP
-
1690464-25801-00 CLAMPCLAMP
-
1732P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1890110-04802-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990201-047A2-00 WASHER, PLATEWASHER, PLATE
-
204HC-81950-00-00 RELAY ASSY (4HC-00)RELAY ASSY (4HC-00)
-
2190464-30802-00 CLAMPCLAMP
-
2290464-12812-00 CLAMPCLAMP
-
231CD-F117G-10-00 PROTECTORPROTECTOR
-
2490465-13152-00 CLAMPCLAMP
-
2590464-60800-00 CLAMPCLAMP
-
263B3-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
2790464-30801-00 CLAMPCLAMP
