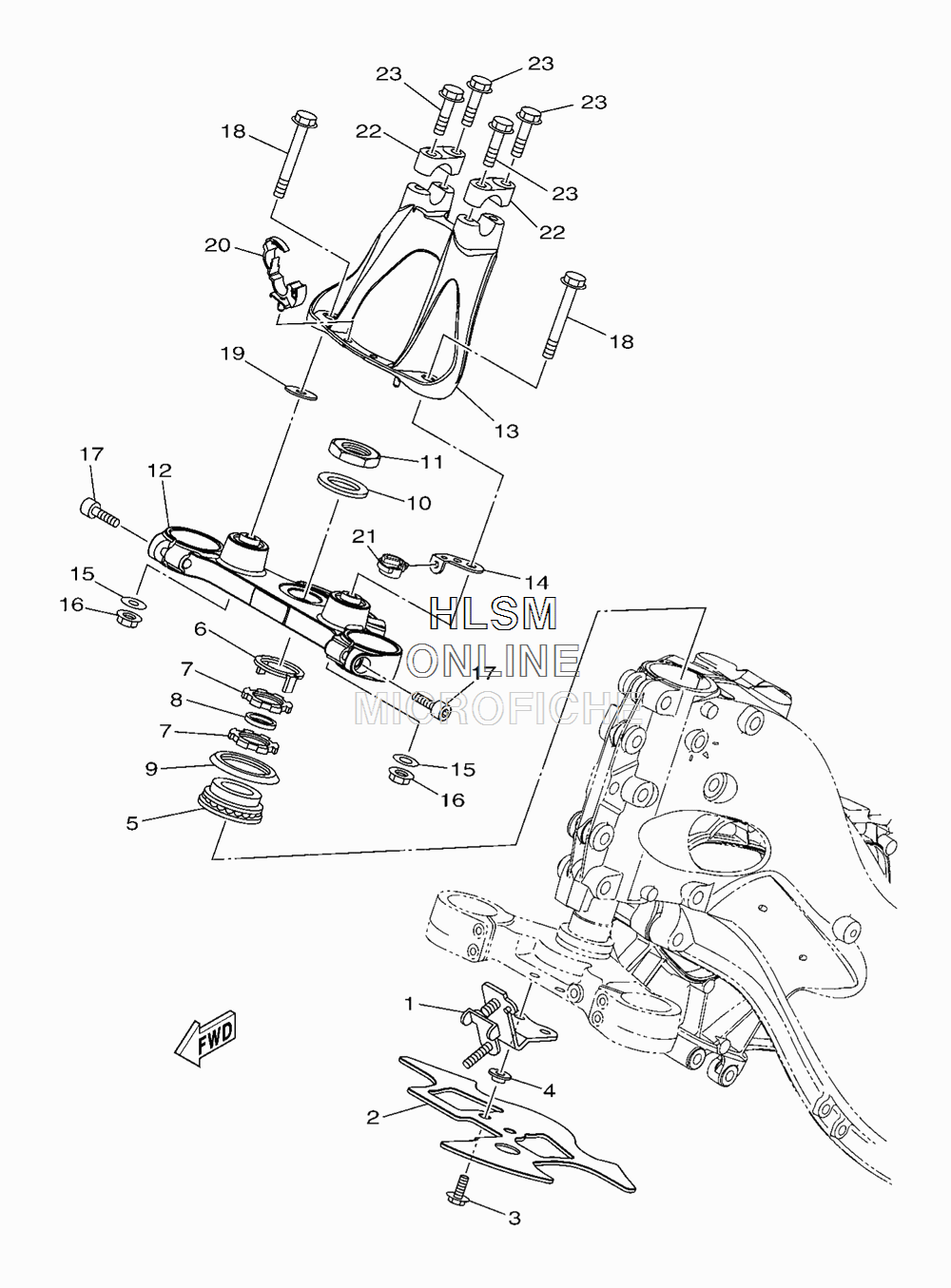

SUSPENSION - FRONT FORK - TRIPLE TREE для Yamaha TMAX (CANADA) - 2012 года выпуска`
-
№АртикулНазвание
-
14B5-23377-00-00 BRACKET, HORNBRACKET, HORN
-
24B5-23818-00-00 COVER, STEERINGCOVER, STEERING
-
390119-06193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490387-062M9-00 COLLARCOLLAR
-
593399-99932-00 BEARINGBEARING
-
64XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790179-30691-00 NUTNUT
-
890202-30235-00 WASHER, PLATEWASHER, PLATE
-
94XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
1090201-28017-00 WASHER, PLATEWASHER, PLATE
-
1190170-28419-00 NUTNUT
-
124B5-W2341-10-00 CROWN, HANDLECROWN, HANDLE
-
1359C-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1459C-2334G-00-00 BRACKET 1BRACKET 1
-
1590201-10043-00 WASHER, PLATEWASHER, PLATE
-
1695602-10100-00 NUT, UNUT, U
-
1791312-08030-00 BOLTBOLT
-
1890105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
1992902-10200-00 WASHERWASHER
-
2090464-18011-00 CLAMPCLAMP
-
2190464-13249-00 CLAMPCLAMP
-
225XE-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2395022-08035-00 BOLT, FLANGEBOLT, FLANGE
