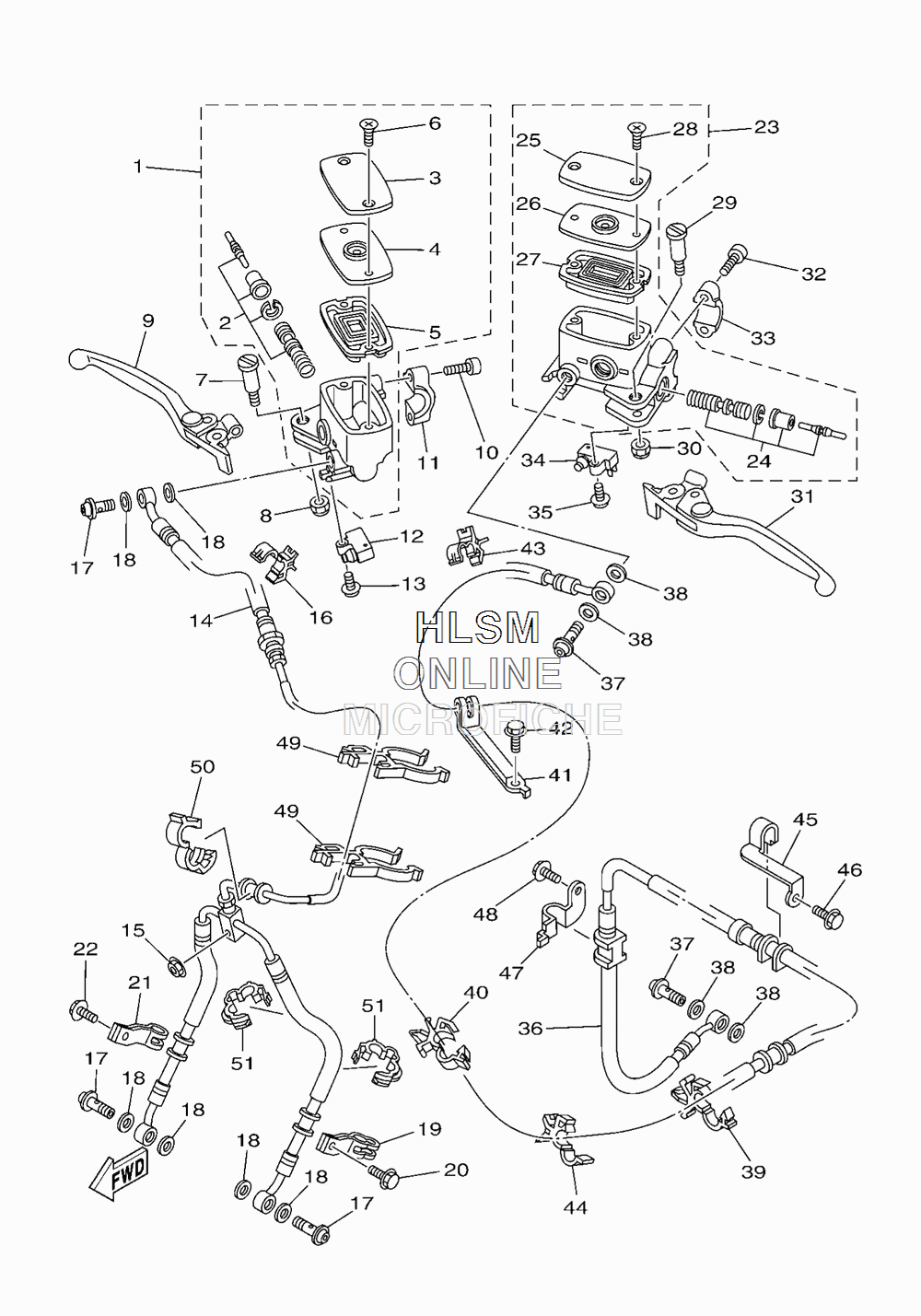

BRAKE - FRONT MASTER CYLINDER для Yamaha TMAX (CANADA) - 2012 года выпуска`
-
№АртикулНазвание
-
14B5-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24B5-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34B5-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
44B5-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
54B5-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
94B5-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1236Y-82917-00-00 SWITCHSWITCH
-
1397602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
1459C-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1595702-06500-00 NUT, FLANGENUT, FLANGE
-
1690464-15192-00 CLAMPCLAMP
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
194B5-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
214B5-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
234B5-W2587-10-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
244B5-W0041-10-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
254B5-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
264B5-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
274B5-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
285VS-2589H-00-00 ...SCREW...SCREW
-
295VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
3095617-06100-00 NUT, UNUT, U
-
314B5-83912-00-00 LEVER 1LEVER 1
-
325VS-26332-00-00 BOLTBOLT
-
335VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
3436Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
3597602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
3659C-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
3790401-10172-00 BOLT, UNIONBOLT, UNION
-
3890430-10005-00 GASKETGASKET
-
3990464-16006-00 CLAMPCLAMP
-
4090464-16006-00 CLAMPCLAMP
-
4159C-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4295802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4390464-15192-00 CLAMPCLAMP
-
4490464-15192-00 CLAMPCLAMP
-
4559C-28216-00-00 PLATE, LOCK 1PLATE, LOCK 1
-
4695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4759C-28226-00-00 PLATE, LOCK 2PLATE, LOCK 2
-
4895822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4990464-43001-00 CLAMPCLAMP
-
5090464-16003-00 CLAMPCLAMP
-
5190464-14003-00 CLAMPCLAMP
