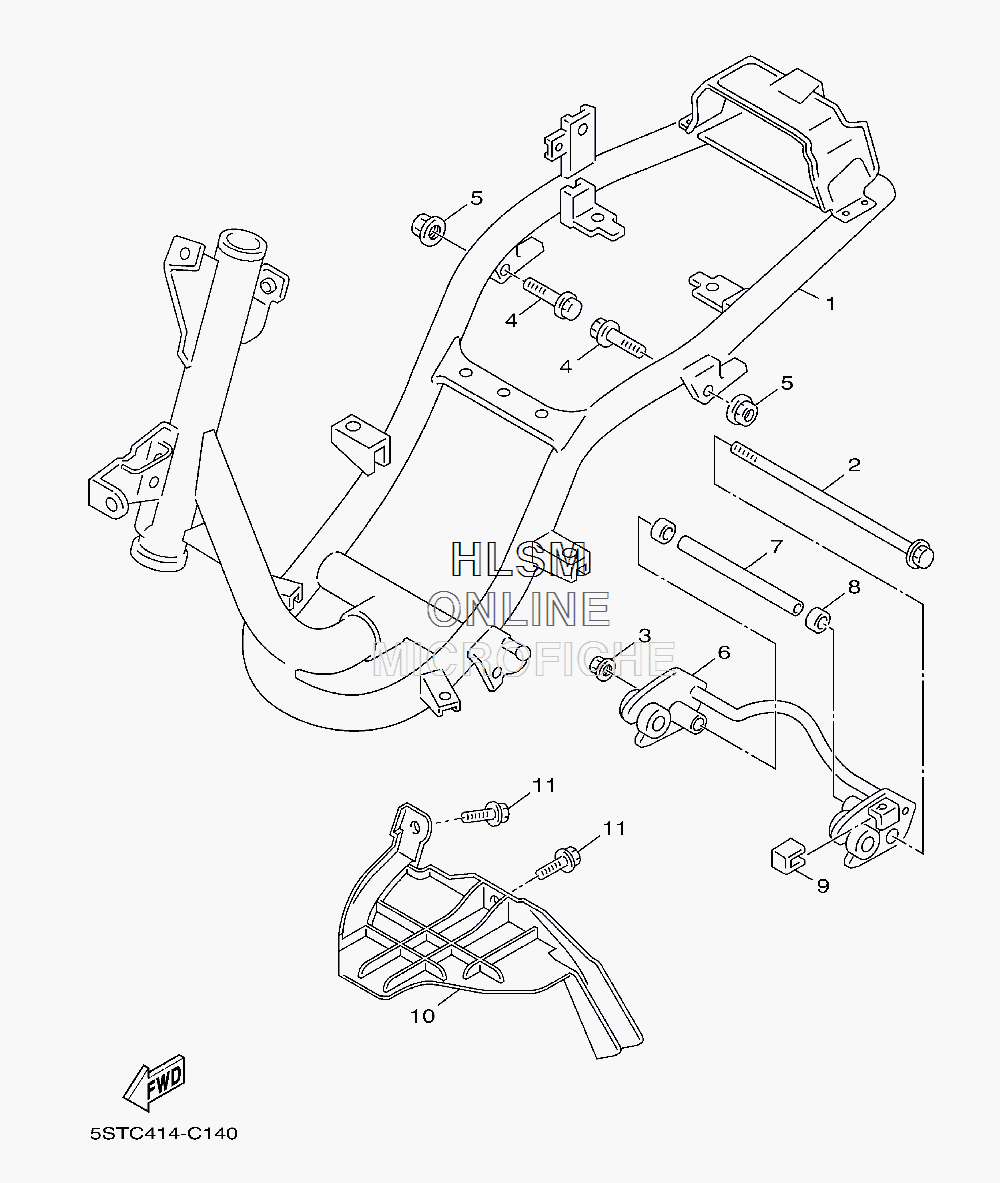

FRAME для Yamaha VINO CLASSIC - 2011 года выпуска`
-
№АртикулНазвание
-
13D1-F1110-00-33 FRAME COMP. (YAMAHA BLACK)FRAME COMP. (YAMAHA BLACK)
-
25ST-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
39560L-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
590185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65ST-F1410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
75ST-F1459-00-00 SPACERSPACER
-
85ST-F7235-00-00 COVER, DUSTCOVER, DUST
-
95ST-F139X-00-00 DAMPERDAMPER
-
105ST-F117G-00-00 PROTECTORPROTECTOR
-
1195807-06016-00 BOLT, FLANGEBOLT, FLANGE
