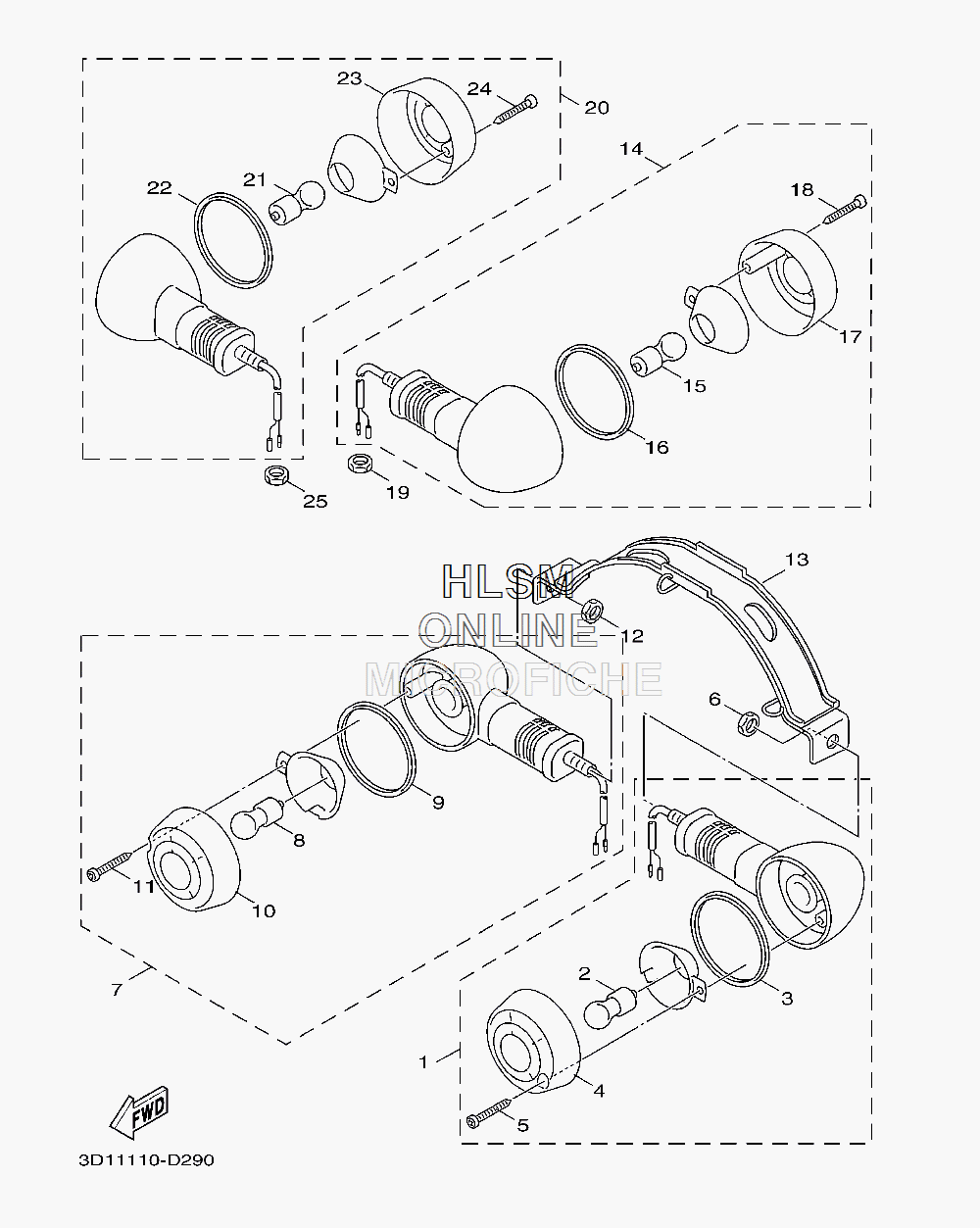

FLASHER LIGHT для Yamaha VINO CLASSIC - 2011 года выпуска`
-
№АртикулНазвание
-
13D1-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
24VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
33D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
43D1-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
597780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
695307-12600-00 NUTNUT
-
73D1-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
84VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
93D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
103D1-H3322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
1197780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1295307-12600-00 NUTNUT
-
133D1-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
143D1-H3330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
154VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
163D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
173D1-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1897780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1995307-12600-00 NUTNUT
-
203D1-H3340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
214VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
223D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
233D1-H3322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
2497780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2595307-12600-00 NUTNUT
