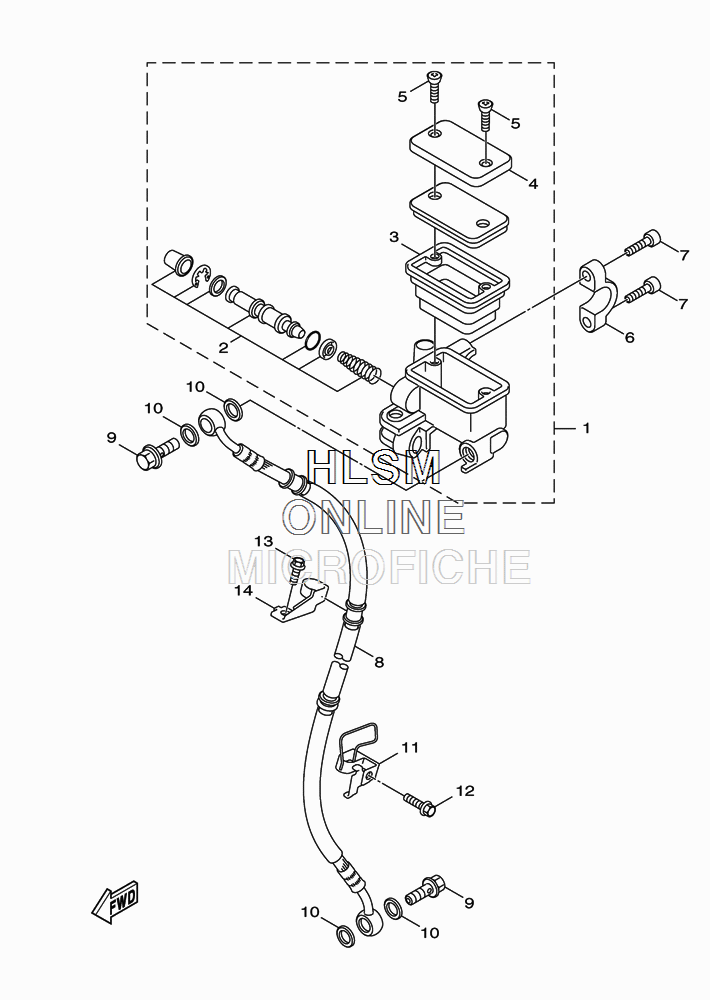

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA 125 - 2010 года выпуска`
-
№АртикулНазвание
-
132S-F5870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25S9-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
35S9-F5854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
45S9-F5852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
598707-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
65S9-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
791317-06025-00 BOLTBOLT
-
85S9-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
990401-10805-00 BOLT, UNIONBOLT, UNION
-
1090201-10118-00 WASHER, PLATEWASHER, PLATE
-
115S9-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
135S9-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
