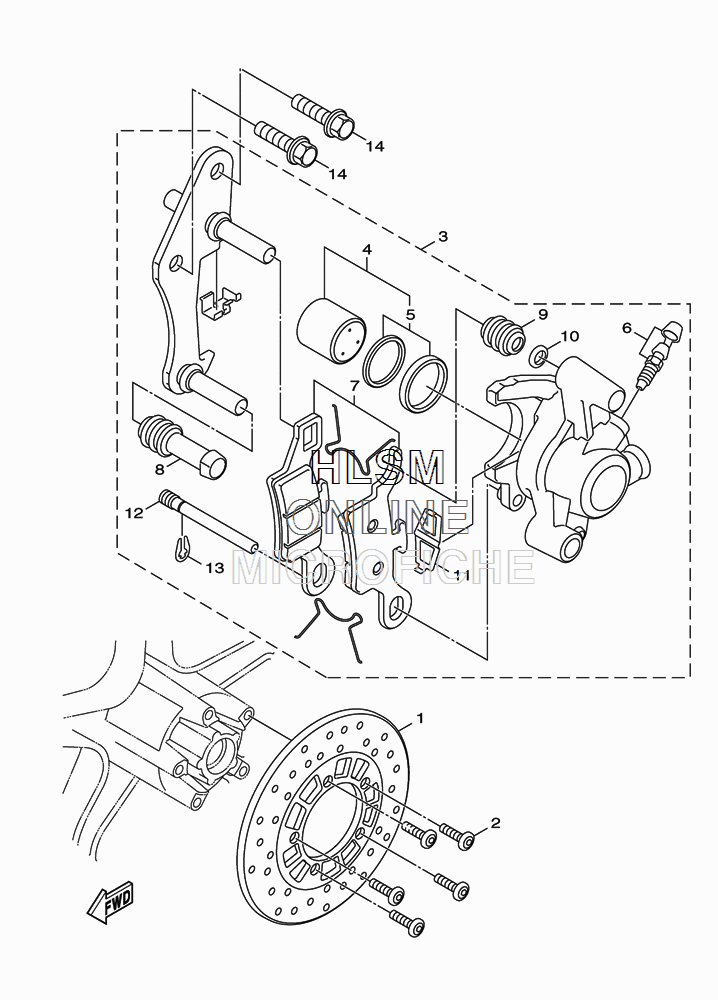

BRAKE - FRONT CALIPER для Yamaha ZUMA 125 - 2010 года выпуска`
-
№АртикулНазвание
-
15S9-F582U-00-00 DISK, BRAKE (RIGHT)DISK, BRAKE (RIGHT)
-
290149-08814-00 SCREWSCREW
-
35S9-F580T-21-00 CALIPER ASSY (LEFT) (FOR SMX, CMY)CALIPER ASSY (LEFT) (FOR SMX, CMY)
-
35S9-F580T-11-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45S9-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
55S9-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
65S9-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
75S9-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
85S9-F5917-00-00 BOOT, CALIPERBOOT, CALIPER
-
95S9-F5937-00-00 BOOT 2BOOT 2
-
105S9-F5913-00-00 RETAINERRETAINER
-
115S9-F5919-00-00 SUPPORT, PADSUPPORT, PAD
-
125S9-F5924-10-00 PIN, PADPIN, PAD
-
135S9-F5925-00-00 CLIPCLIP
-
1490105-10638-00 BOLT, FLANGEBOLT, FLANGE
