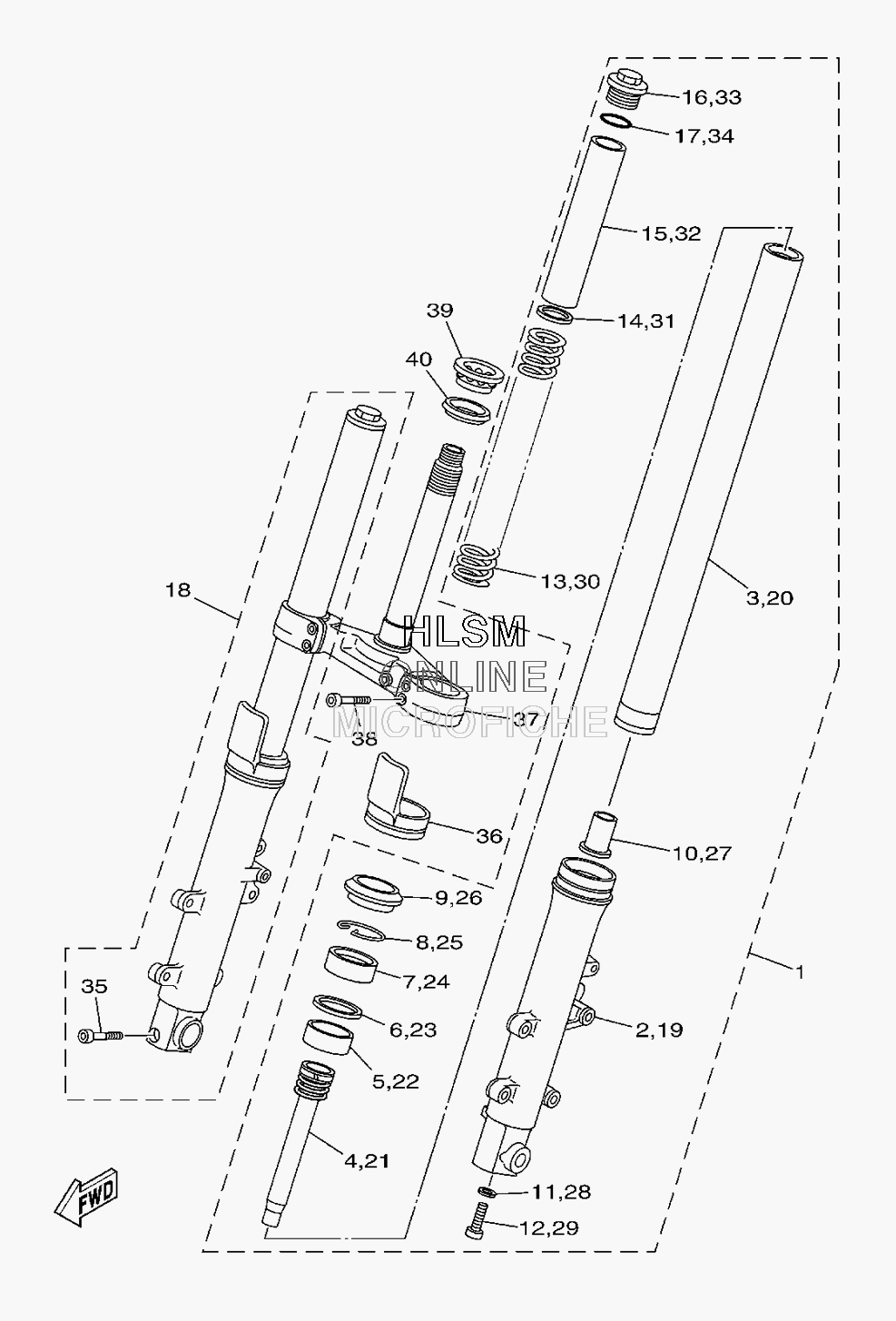

SUSPENSION - FRONT FORK - INTERNALS для Yamaha TMAX (XP500YL) (BLUE) - 2009 года выпуска`
-
№АртикулНазвание
-
14B5-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24B5-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
34B5-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
44B5-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
55EB-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
64V4-23146-L0-00 WASHER, OIL SEALWASHER, OIL SEAL
-
74PU-23145-01-00 OIL SEALOIL SEAL
-
84V4-23153-L0-00 RING, SNAPRING, SNAP
-
94PU-23144-00-00 SEAL, DUSTSEAL, DUST
-
104YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
11509-23158-L0-00 GASKETGASKET
-
12278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
134B5-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
143LR-23149-00-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
155WM-23118-00-00 SPACERSPACER
-
163TJ-23111-00-00 BOLT, CAPBOLT, CAP
-
174V4-23188-L0-00 O-RINGO-RING
-
184B5-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
194B5-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
204B5-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
214B5-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
225EB-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
234V4-23146-L0-00 WASHER, OIL SEALWASHER, OIL SEAL
-
244PU-23145-01-00 OIL SEALOIL SEAL
-
254V4-23153-L0-00 RING, SNAPRING, SNAP
-
264PU-23144-00-00 SEAL, DUSTSEAL, DUST
-
274YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
28509-23158-L0-00 GASKETGASKET
-
29278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
304B5-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
313LR-23149-00-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
325WM-23118-00-00 SPACERSPACER
-
333TJ-23111-00-00 BOLT, CAPBOLT, CAP
-
344V4-23188-L0-00 O-RINGO-RING
-
3591314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
364PU-2331G-00-00 COVERCOVER
-
374B5-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3891314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3993399-99957-00 BEARINGBEARING
-
403FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
