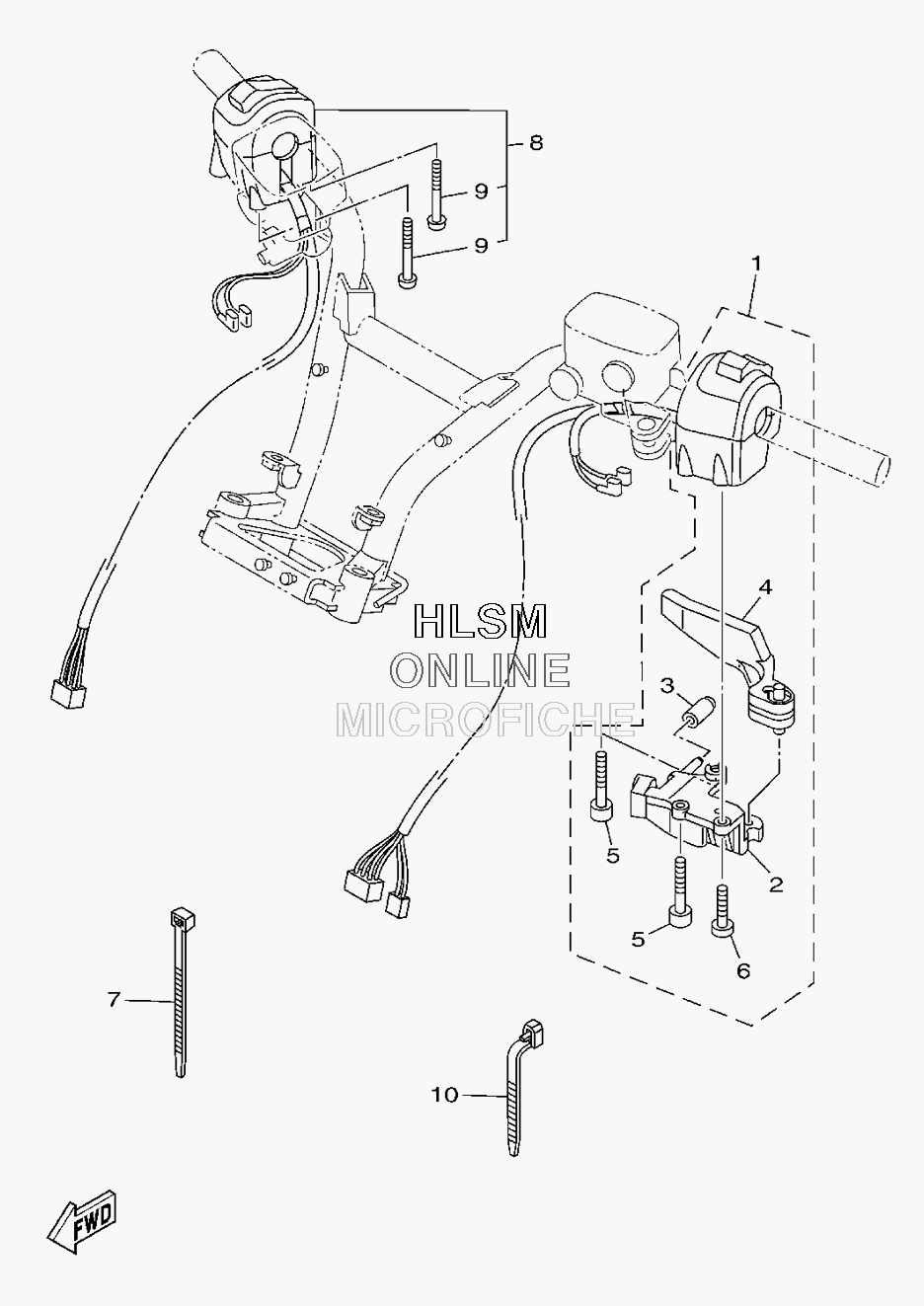

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha TMAX (XP500YL) (BLUE) - 2009 года выпуска`
-
№АртикулНазвание
-
14B5-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
25RB-26396-01-00 HOLDER, ADJUSTINGHOLDER, ADJUSTING
-
35RB-13569-00-00 PLUG, BLINDPLUG, BLIND
-
45VU-83930-00-00 LEVER LOCK ASSYLEVER LOCK ASSY
-
591317-05055-00 BOLTBOLT
-
698507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790465-12356-00 CLAMPCLAMP
-
84B5-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
998507-05050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1090464-13073-00 CLAMPCLAMP
