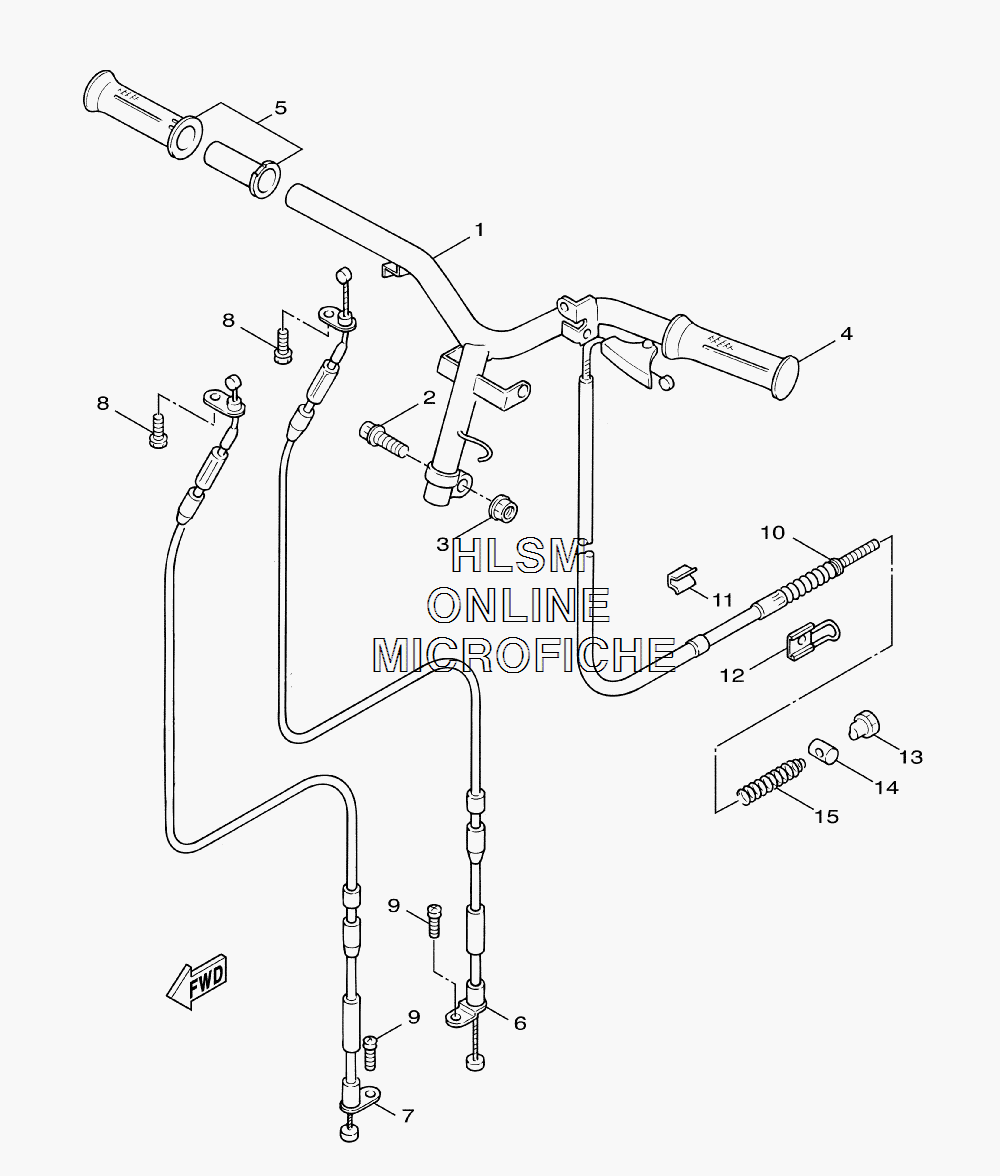

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA - 2008 года выпуска`
-
№АртикулНазвание
-
15PJ-F6110-00-00 HANDLE COMP.HANDLE COMP.
-
290105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
44JL-F6241-01-00 GRIP (LEFT)GRIP (LEFT)
-
55FA-F6240-01-00 GRIP ASSYGRIP ASSY
-
65PJ-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75PJ-F6313-00-00 CABLE, THROTTLE 3CABLE, THROTTLE 3
-
898507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
998507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105PJ-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
114VP-F6393-00-00 HOLDERHOLDER
-
124VP-F637G-00-00 HOLDER, WIREHOLDER, WIRE
-
1390179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1490249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
1590501-165J7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
