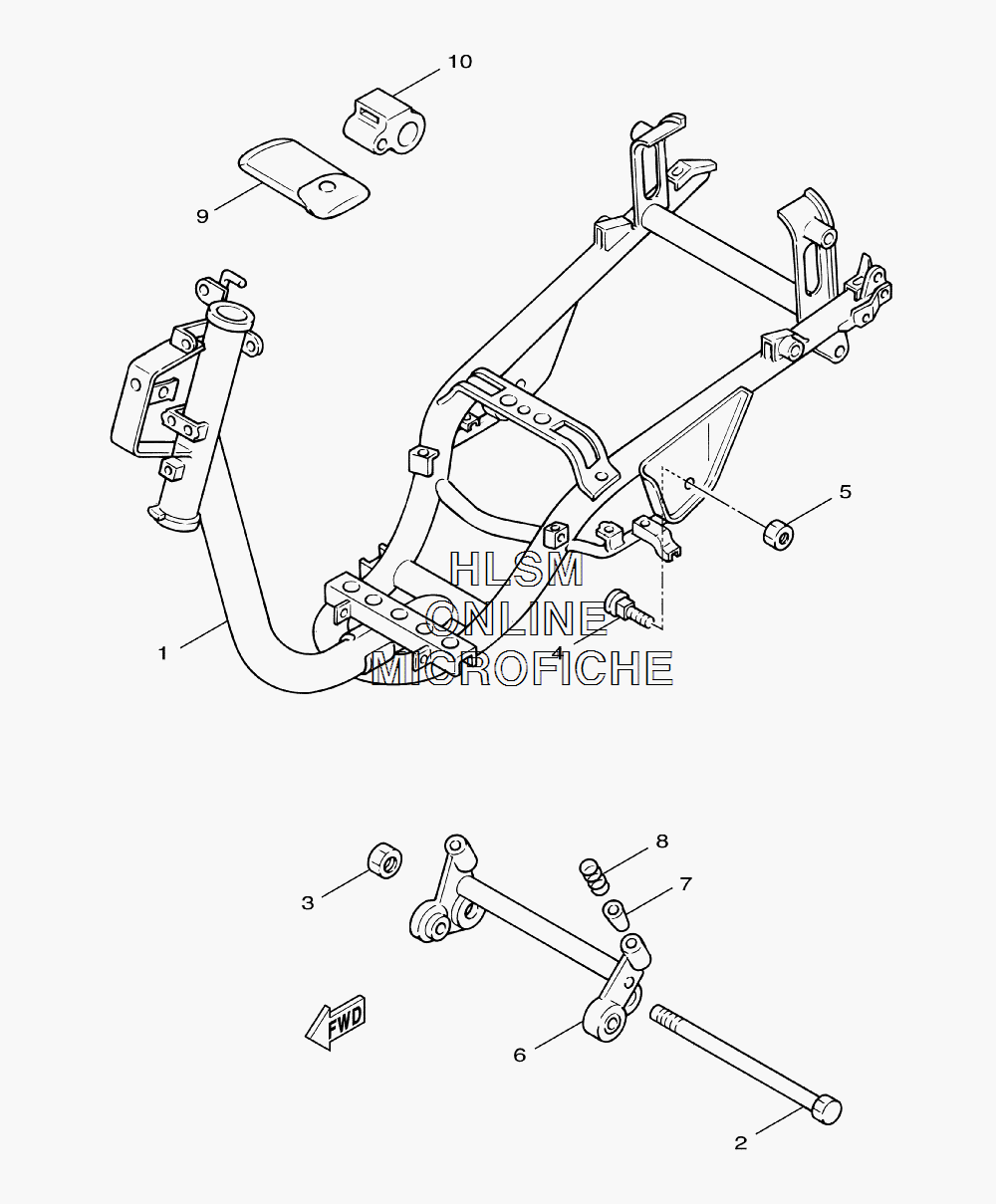

FRAME для Yamaha ZUMA - 2008 года выпуска`
-
№АртикулНазвание
-
15PJ-F1110-01-33 FRAME COMP. (YB)FRAME COMP. (YB)
-
23XG-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
395607-12200-00 NUT,U FLANGENUT,U FLANGE
-
44Y4-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
590185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
64VP-F1410-30-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
74Y4-F139X-01-00 DAMPERDAMPER
-
890501-29517-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
945U-F8100-00-00 TOOL KITTOOL KIT
-
1023Y-F8175-00-00 HOLDER, TOOLHOLDER, TOOL
