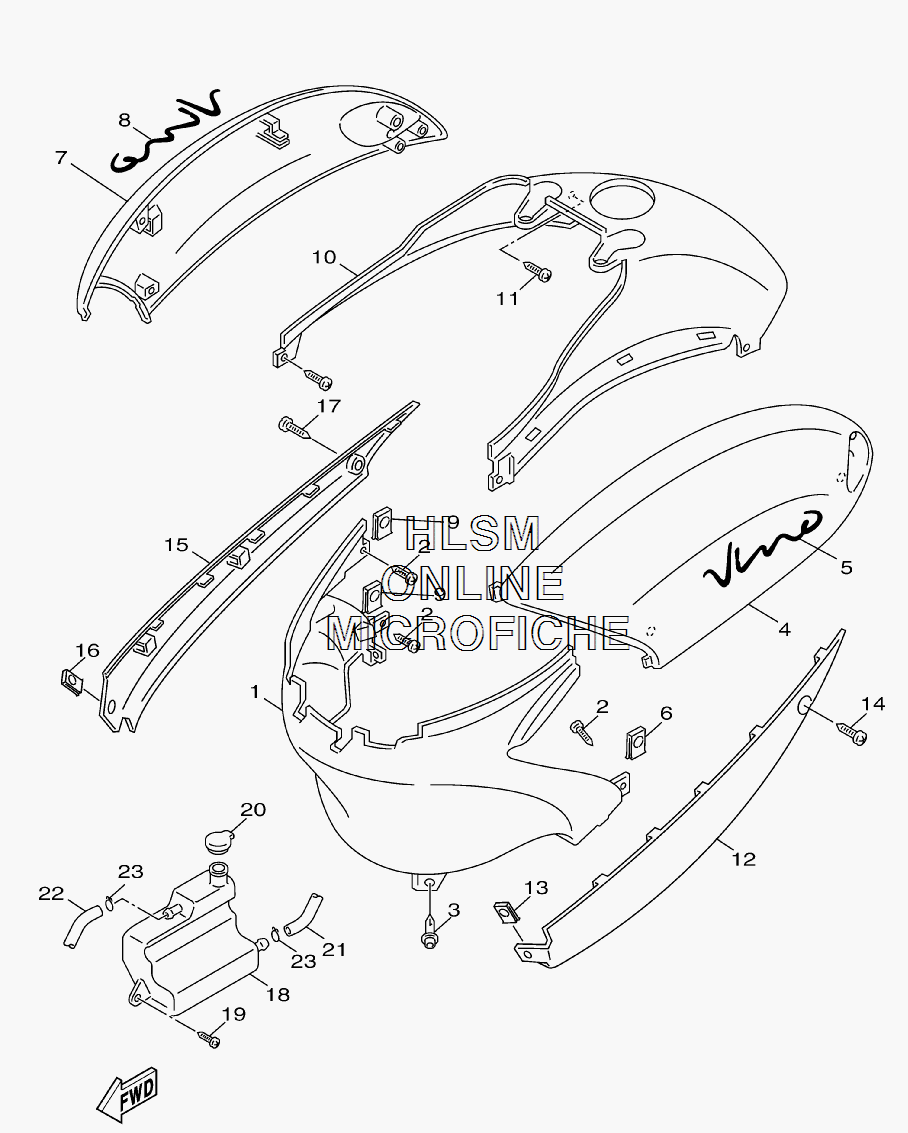

SIDE COVER для Yamaha VINO 50 CLASSIC - 2007 года выпуска`
-
№АртикулНазвание
-
15ST-F1711-20-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390269-07802-00 RIVETRIVET
-
45ST-X2172-20-P5 COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
45ST-X2172-00-PG COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
55ST-F173B-10-00 EMBLEM 3DEMBLEM 3D
-
690183-05807-00 NUT, SPRINGNUT, SPRING
-
75ST-X2173-20-P5 COVER, SIDE 3 (SMX)COVER, SIDE 3 (SMX)
-
75ST-X2173-00-PG COVER, SIDE 3 (DPBMC)COVER, SIDE 3 (DPBMC)
-
85ST-F174B-10-00 EMBLEM 3DEMBLEM 3D
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
105ST-F1741-L1-00 COVER, SIDE 4COVER, SIDE 4
-
1197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
125ST-F7482-00-P5 MOLD, FOOTREST (SMX)MOLD, FOOTREST (SMX)
-
125ST-F7482-00-PG MOLD, FOOTREST (DPBMC)MOLD, FOOTREST (DPBMC)
-
1390183-05807-00 NUT, SPRINGNUT, SPRING
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
155ST-F7492-00-P5 MOLD, FOOTREST 2 (SMX)MOLD, FOOTREST 2 (SMX)
-
155ST-F7492-00-PG MOLD, FOOTREST 2 (DPBMC)MOLD, FOOTREST 2 (DPBMC)
-
1690183-05807-00 NUT, SPRINGNUT, SPRING
-
1797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
185ST-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
205CA-F1815-00-00 CAPCAP
-
2190445-09821-00 HOSEHOSE
-
225ST-F1877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
2390467-09006-00 CLIPCLIP
