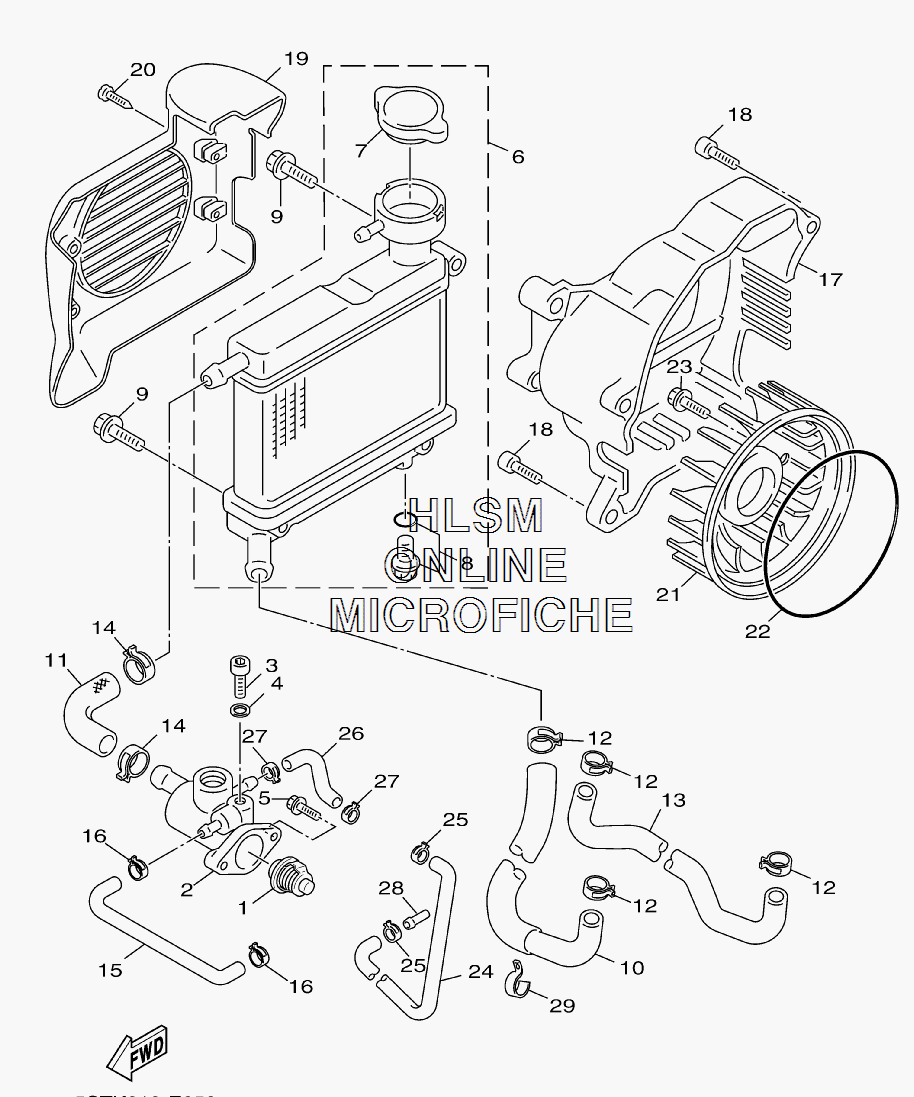

RADIATOR W/ HOSES для Yamaha VINO 50 CLASSIC - 2007 года выпуска`
-
№АртикулНазвание
-
130Y-12411-00-00 THERMOSTATTHERMOSTAT
-
25ST-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
391317-06010-00 BOLTBOLT
-
490430-06166-00 GASKETGASKET
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65ST-E240A-02-00 RADIATOR ASSYRADIATOR ASSY
-
75ST-E2590-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
85VU-12478-00-00 ...COCK, DRAIN...COCK, DRAIN
-
997707-60530-00 SCREW, TRUSSSCREW, TRUSS
-
105ST-E2482-01-00 PIPE 2PIPE 2
-
115ST-E2483-00-00 PIPE 3PIPE 3
-
1290467-20810-00 CLIPCLIP
-
135ST-E2477-00-00 PIPE 7PIPE 7
-
1490467-20810-00 CLIPCLIP
-
155ST-E243F-00-00 HOSE, 3HOSE, 3
-
1690467-09803-00 CLIPCLIP
-
175ST-E2621-00-00 CASE, FANCASE, FAN
-
1895027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
195ST-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2097707-60530-00 SCREW, TRUSSSCREW, TRUSS
-
215ST-E2611-01-00 FANFAN
-
2293210-76801-00 O-RINGO-RING
-
2395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
245ST-E243A-00-00 HOSE 1HOSE 1
-
2590467-09803-00 CLIPCLIP
-
265ST-E243E-00-00 HOSE 2HOSE 2
-
2790467-09803-00 CLIPCLIP
-
285ST-E3115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
2990462-10806-00 CLAMPCLAMP
