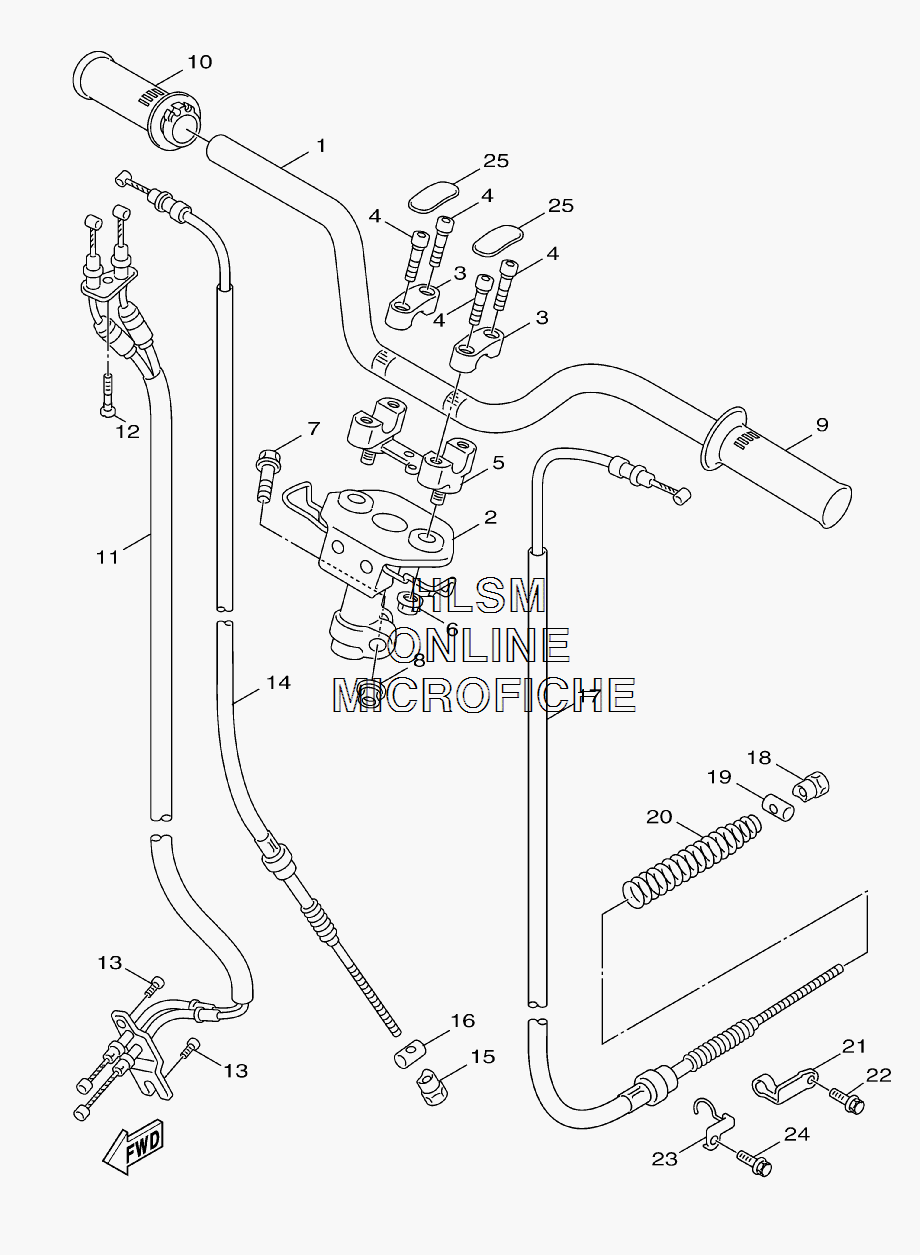

HANDLEBAR W/ CABLES - MIRRORS для Yamaha C3 - 2007 года выпуска`
-
№АртикулНазвание
-
13B3-F6111-00-00 HANDLEBARHANDLEBAR
-
23B3-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
31MH-F3441-01-35 HOLDER, HANDLE UPPER (SL FOR S3, DPBMC)HOLDER, HANDLE UPPER (SL FOR S3, DPBMC)
-
491317-08025-00 BOLT, SOCKETBOLT, SOCKET
-
55FH-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
690185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95SU-F6241-00-00 GRIP (YB)GRIP (YB)
-
105ST-F6240-00-00 GRIP ASSY (YB)GRIP ASSY (YB)
-
113B3-F6301-10-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1298507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
1392012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
143B3-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1590179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1690249-12806-00 PINPIN
-
173B3-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
1890179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1990249-12806-00 PINPIN
-
2090501-16804-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
213B3-F639F-00-00 HOLDER 2HOLDER 2
-
2295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
233B3-F637G-00-00 HOLDER, WIREHOLDER, WIRE
-
2495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
251MH-F3469-00-00 CAP, BOLTCAP, BOLT
