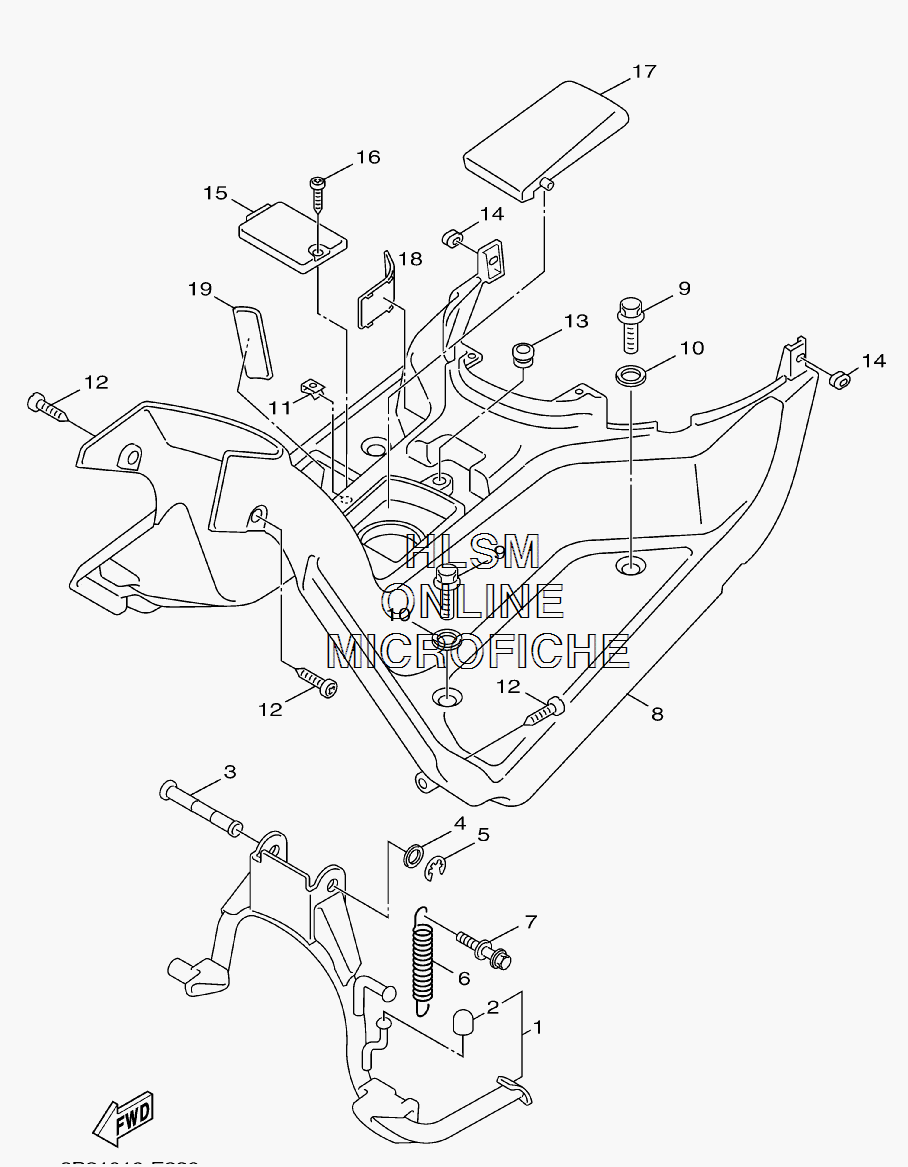

STAND W/ FOOTREST для Yamaha C3 - 2007 года выпуска
-
№АртикулНазвание
-
13B3-XF711-00-00 STAND, MAINSTAND, MAIN
-
25CA-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
390249-10800-00 PINPIN
-
490201-10119-00 WASHER, PLATEWASHER, PLATE
-
599002-08600-00 CIRCLIPCIRCLIP
-
690506-32803-00 SPRING, TENSIONSPRING, TENSION
-
75SU-F7254-01-00 HOOKHOOK
-
83B3-F7481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
990119-06806-00 BOLT WITH WASHERBOLT WITH WASHER
-
1090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1190183-05807-00 NUT, SPRINGNUT, SPRING
-
1297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1390480-01884-00 GROMMETGROMMET
-
1490480-01559-00 GROMMETGROMMET
-
153B3-F7463-00-00 COVER 2COVER 2
-
1697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
173B3-F7453-00-00 COVER 1COVER 1
-
183B3-F7475-00-00 CAP 1CAP 1
-
195FM-F8349-00-00 CAPCAP
