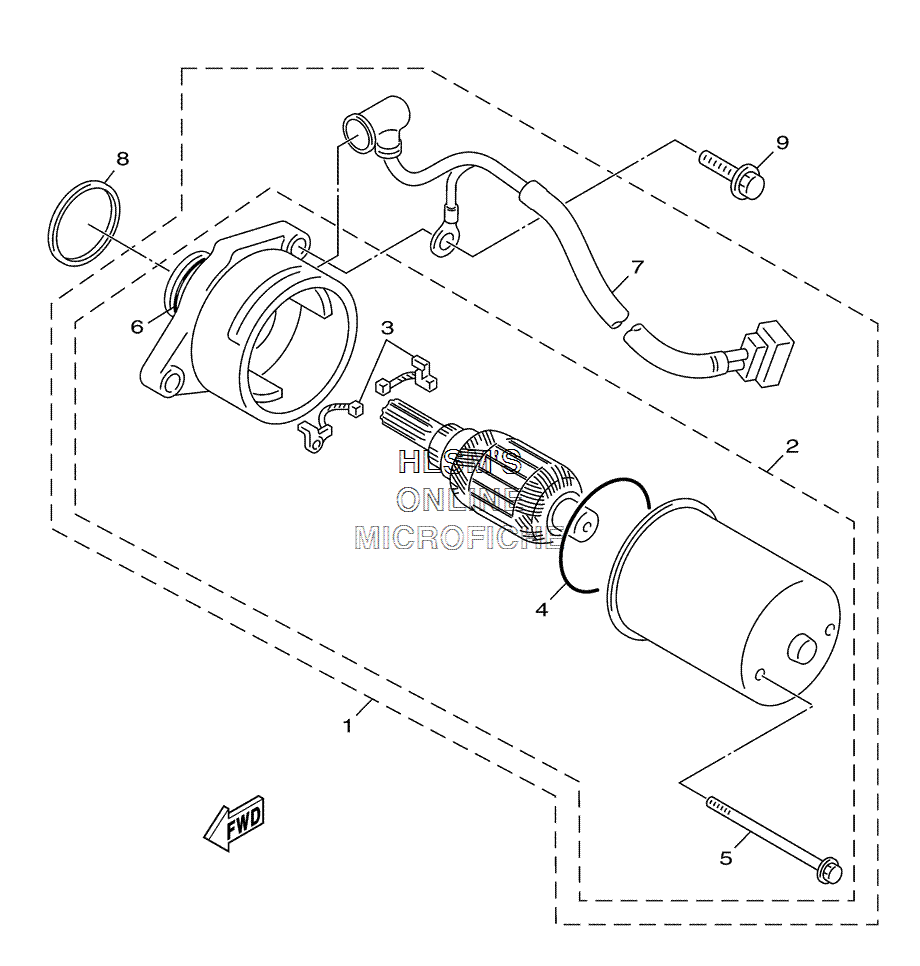

STARTING MOTOR ASSY. для Yamaha VINO 50 - 2006 года выпуска`
-
№АртикулНазвание
-
15ST-H1800-20-00 STARTING MOTOR ASSY.STARTING MOTOR ASSY.
-
25ST-W8180-20-00 ...ELECTRIC STARTER KIT...ELECTRIC STARTER KIT
-
34DM-H1801-00-00 ...BRUSH SET...BRUSH SET
-
493210-44678-00 ...O-RING...O-RING
-
55HK-H1828-00-00 ...BOLT 2...BOLT 2
-
693210-23614-00 ...O-RING...O-RING
-
75ST-H183G-20-00 ...CORD COMP....CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLTBOLT
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER W/ COOLING SYSTEM RECOVERY TANK
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- • STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
