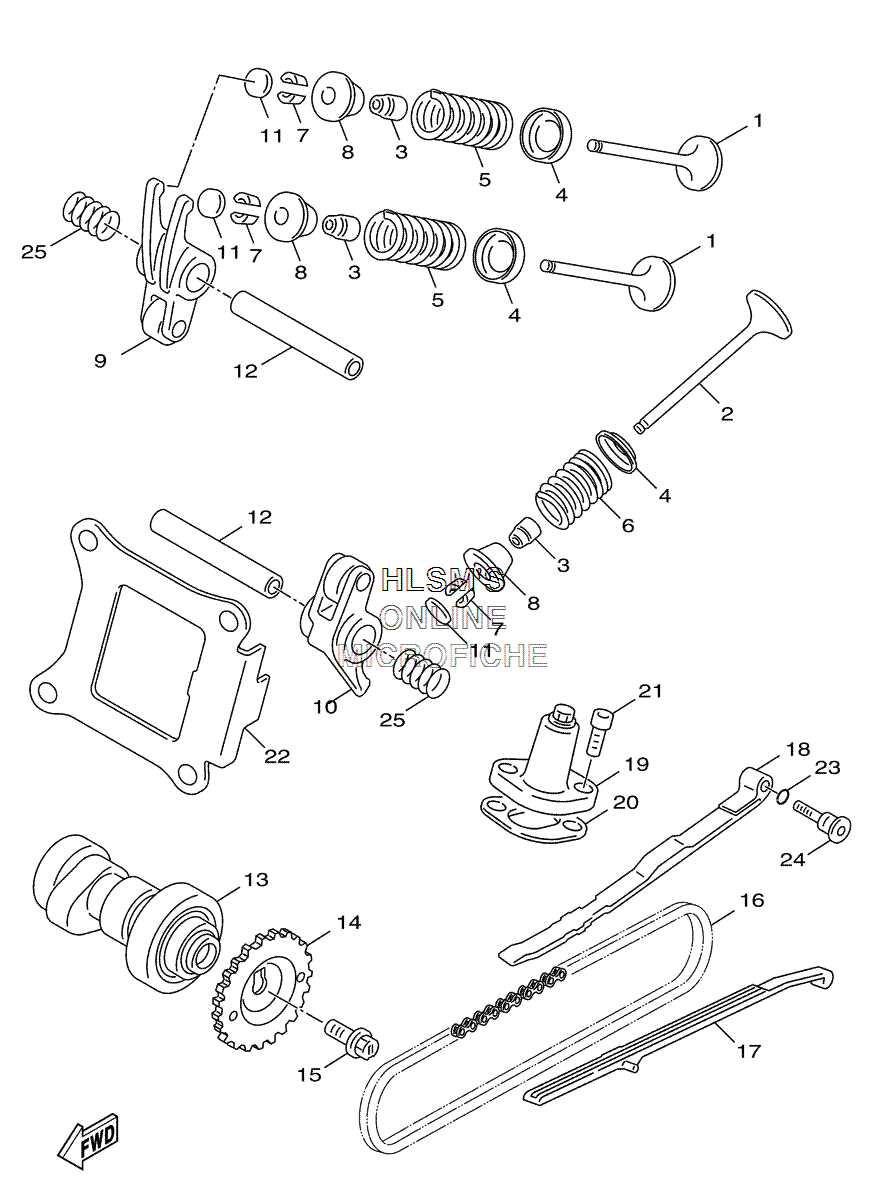

VALVE ASSY. W/ CAM CHAIN ASSY. для Yamaha VINO 50 - 2006 года выпуска`
-
№АртикулНазвание
-
15ST-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25ST-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35ST-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
45ST-E2116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
55ST-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
65ST-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
71HX-12118-00-00 COTTER, VALVECOTTER, VALVE
-
85ST-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
95ST-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
105ST-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
115ST-E2168-00-00 PAD, ADJUSTING (1.20) (OPT)PAD, ADJUSTING (1.20) (OPT)
-
115ST-E2168-20-00 PAD, ADJUSTING (1.25) (OPT)PAD, ADJUSTING (1.25) (OPT)
-
115ST-E2168-40-00 PAD, ADJUSTING (1.30) (OPT)PAD, ADJUSTING (1.30) (OPT)
-
115ST-E2168-60-00 PAD, ADJUSTING (1.35) (OPT)PAD, ADJUSTING (1.35) (OPT)
-
115ST-E2168-80-00 PAD, ADJUSTING (1.40) (OPT)PAD, ADJUSTING (1.40) (OPT)
-
115ST-E2168-A0-00 PAD, ADJUSTING (1.45) (OPT)PAD, ADJUSTING (1.45) (OPT)
-
115ST-E2168-F0-00 PAD, ADJUSTING (1.50) (OPT)PAD, ADJUSTING (1.50) (OPT)
-
115ST-E2168-H1-00 PAD, ADJUSTING (1.55) (OPT)PAD, ADJUSTING (1.55) (OPT)
-
115ST-E2168-K1-00 PAD, ADJUSTING (1.60) (OPT)PAD, ADJUSTING (1.60) (OPT)
-
115ST-E2168-M1-00 PAD, ADJUSTING (1.65) (OPT)PAD, ADJUSTING (1.65) (OPT)
-
115ST-E2168-R1-00 PAD, ADJUSTING (1.70) (OPT)PAD, ADJUSTING (1.70) (OPT)
-
115ST-E2168-U1-00 PAD, ADJUSTING (1.75) (OPT)PAD, ADJUSTING (1.75) (OPT)
-
115ST-E2168-W1-00 PAD, ADJUSTING (1.80) (OPT)PAD, ADJUSTING (1.80) (OPT)
-
115ST-E2168-Y1-00 PAD, ADJUSTING (1.85) (OPT)PAD, ADJUSTING (1.85) (OPT)
-
115ST-E2169-11-00 PAD, ADJUSTING (1.90) (OPT)PAD, ADJUSTING (1.90) (OPT)
-
115ST-E2169-31-00 PAD, ADJUSTING (1.95) (OPT)PAD, ADJUSTING (1.95) (OPT)
-
115ST-E2169-50-00 PAD, ADJUSTING (2.00) (OPT)PAD, ADJUSTING (2.00) (OPT)
-
115ST-E2169-70-00 PAD, ADJUSTING (2.05) (OPT)PAD, ADJUSTING (2.05) (OPT)
-
115ST-E2169-90-00 PAD, ADJUSTING (2.10) (OPT)PAD, ADJUSTING (2.10) (OPT)
-
115ST-E2169-E0-00 PAD, ADJUSTING (2.15) (OPT)PAD, ADJUSTING (2.15) (OPT)
-
115ST-E2169-G0-00 PAD, ADJUSTING (2.20) (OPT)PAD, ADJUSTING (2.20) (OPT)
-
115ST-E2169-J0-00 PAD, ADJUSTING (2.25) (OPT)PAD, ADJUSTING (2.25) (OPT)
-
115ST-E2169-L0-00 PAD, ADJUSTING (2.30) (OPT)PAD, ADJUSTING (2.30) (OPT)
-
115ST-E2169-N0-00 PAD, ADJUSTING (2.35) (OPT)PAD, ADJUSTING (2.35) (OPT)
-
115ST-E2169-T0-00 PAD, ADJUSTING (2.40) (OPT)PAD, ADJUSTING (2.40) (OPT)
-
125ST-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
131P4-E2170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
145ST-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1590105-08825-00 BOLT, FLANGEBOLT, FLANGE
-
165ST-E2190-00-00 CHAIN ASSY.CHAIN ASSY.
-
175ST-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
185ST-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
195ML-E2210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
204DH-E2213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2191317-06014-00 BOLTBOLT
-
225ST-E111F-01-00 PLATEPLATE
-
2393210-15862-00 O-RINGO-RING
-
244CW-E2157-00-00 BOLTBOLT
-
255ST-E2123-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
