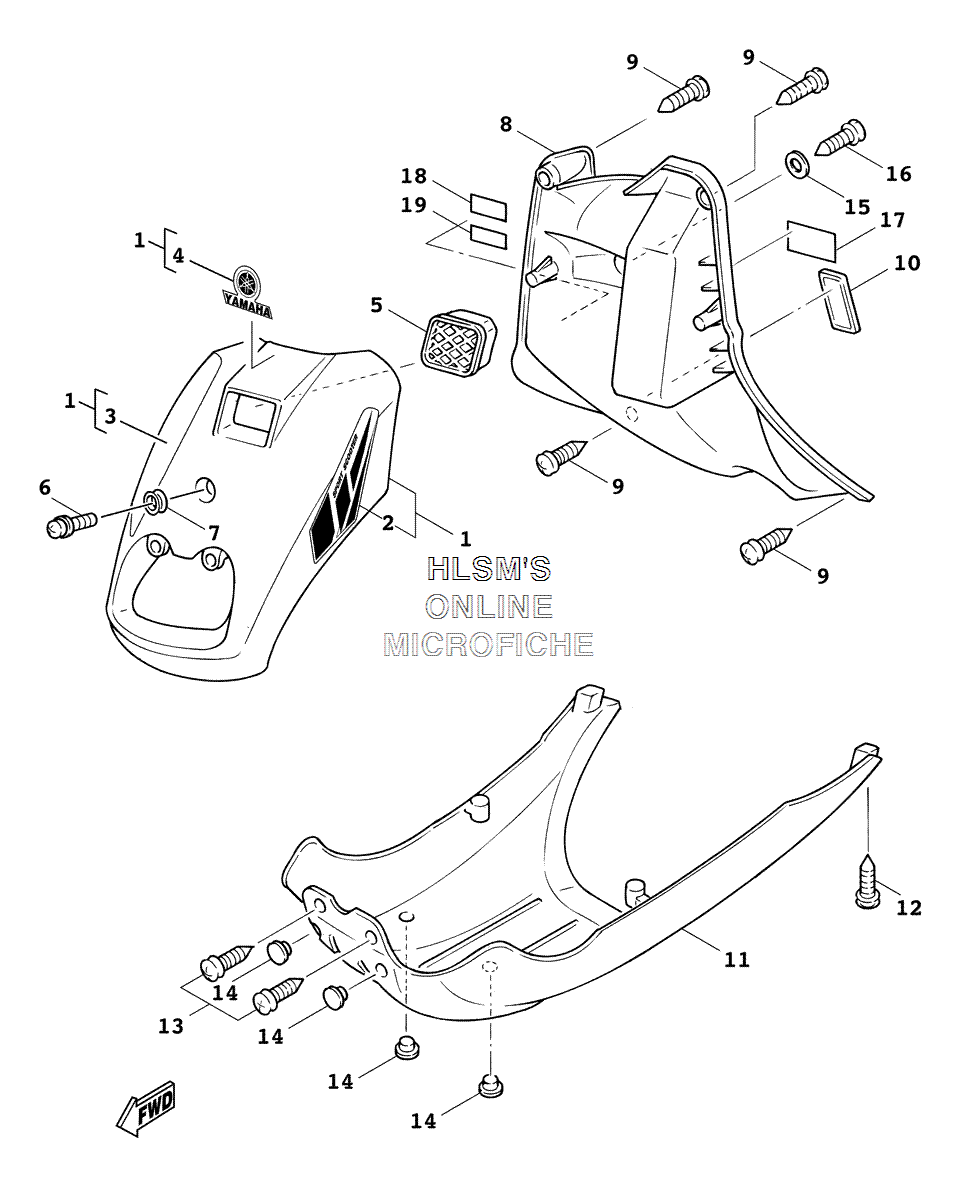

COWLING W/ LEG SHIELD для Yamaha ZUMA - 2003 года выпуска`
-
№АртикулНазвание
-
15PJ-X2831-10-P0 LEG SHIELD 1 (DPBMC)LEG SHIELD 1 (DPBMC)
-
15PJ-X2831-20-1V LEG SHIELD 1 (FS)LEG SHIELD 1 (FS)
-
15PJ-X2831-00-P1 LEG SHIELD 1 (VYS2)LEG SHIELD 1 (VYS2)
-
25PN-F832B-00-00 ...EMBLEM 1 (DPBMC)...EMBLEM 1 (DPBMC)
-
35PN-F832C-00-00 ...GRAPHIC 1 (DPBMC)...GRAPHIC 1 (DPBMC)
-
44TH-F152A-E0-00 ...EMBLEM 3 (DPBMC)...EMBLEM 3 (DPBMC)
-
44TH-F152A-50-00 ...EMBLEM 3 (FS)...EMBLEM 3 (FS)
-
44TH-F152A-70-00 ...EMBLEM 3 (VYS2)...EMBLEM 3 (VYS2)
-
54VP-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
695880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790387-062M9-00 COLLARCOLLAR
-
84VP-F8300-01-00 LEG SHIELD ASSY.LEG SHIELD ASSY.
-
997707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
105FM-F8349-00-00 CAPCAP
-
114VP-F8385-01-00 COVER, LOWERCOVER, LOWER
-
1297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1397707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
143GF-F6199-00-00 PLUG, BLINDPLUG, BLIND
-
1590201-06416-00 WASHER, PLATEWASHER, PLATE
-
1690159-06812-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
174VP-F1668-00-00 LABEL, TIRELABEL, TIRE
-
185PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
195PJ-F179X-00-00 PLATE, EPAPLATE, EPA
