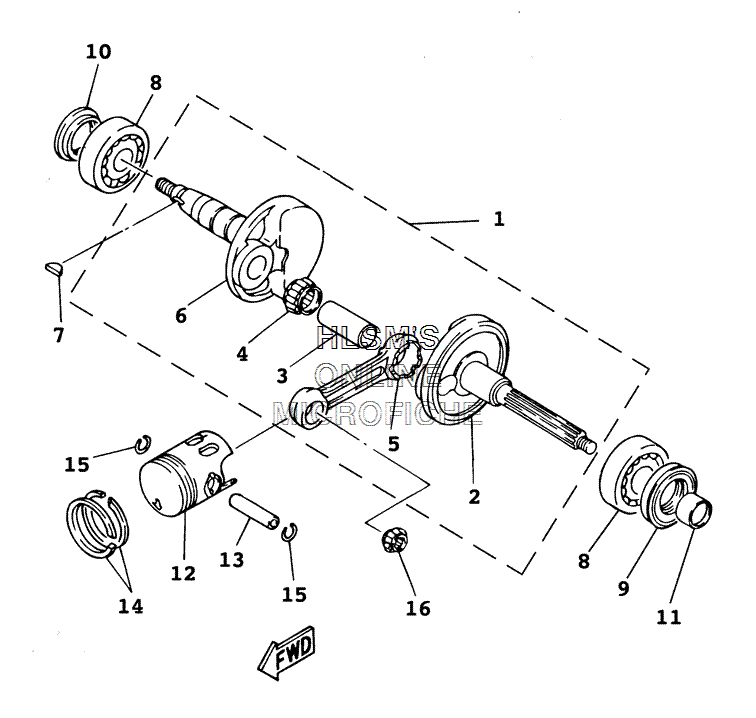

CRANKSHAFT W/ PISTON ASSY. для Yamaha ZUMA - 2003 года выпуска`
-
№АртикулНазвание
-
13XG-E1400-01-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
23XG-E1412-00-00 ...CRANK 1...CRANK 1
-
33XY-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
493310-416N7-00 ...BEARING...BEARING
-
54Y4-E1651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
63XG-E1422-00-00 ...CRANK 2...CRANK 2
-
790280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
893306-204X4-00 BEARINGBEARING
-
993102-20371-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1093101-20138-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1190387-156U0-00 COLLARCOLLAR
-
124DY-E1631-19-00 PISTON (STD)PISTON (STD)
-
1323Y-E1633-00-00 PIN, PISTONPIN, PISTON
-
143XY-E1601-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1593450-11120-00 CIRCLIP, INNERCIRCLIP, INNER
-
1693310-210M0-00 BEARING, PISTON PINBEARING, PISTON PIN
