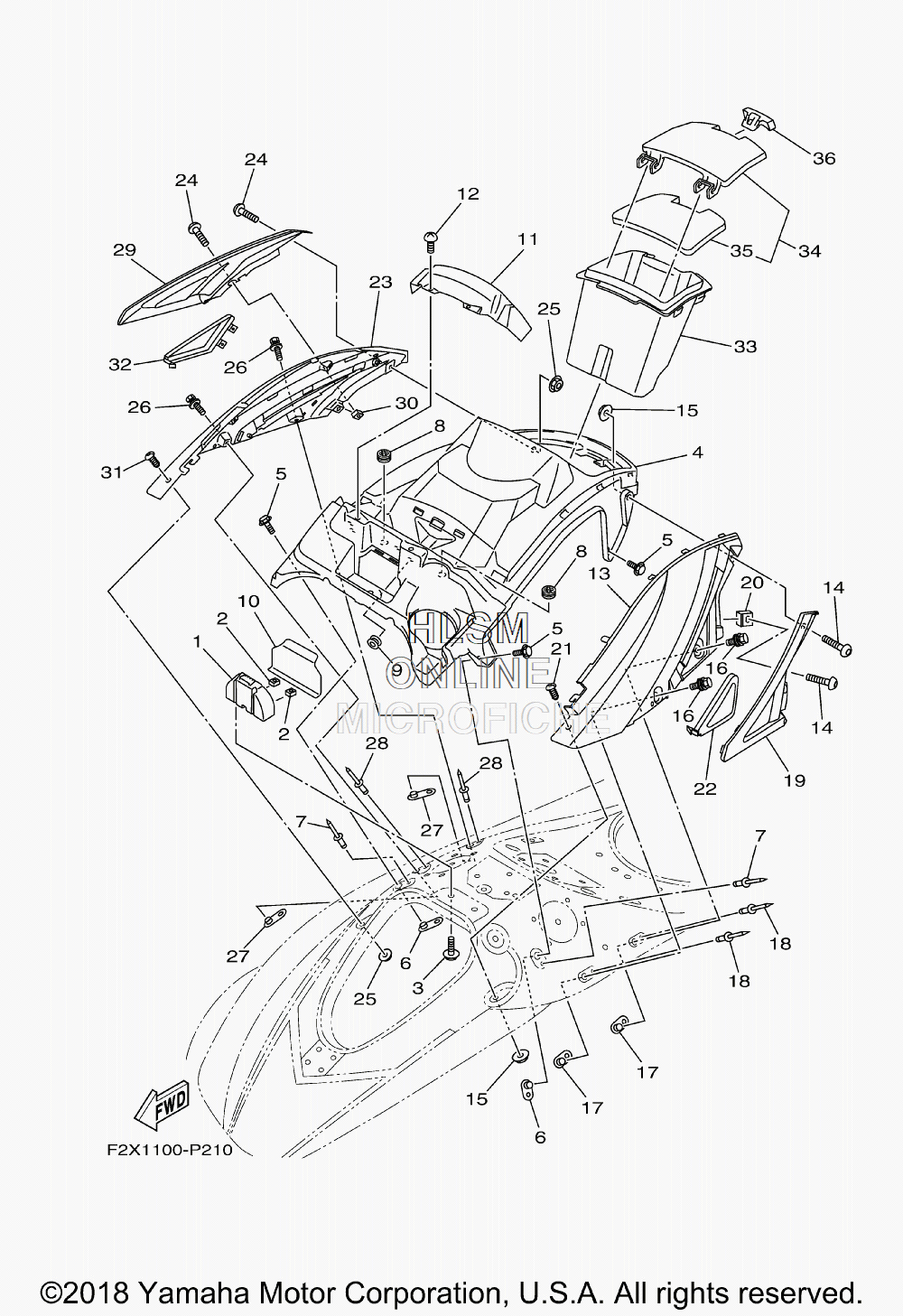

SIDE COVERS для Yamaha GP1800R - 2019 года выпуска`
-
№АртикулНазвание
-
1F2X-U517F-00-00 HOOK, LID LOCKHOOK, LID LOCK
-
2F4G-U517E-00-00 NUTNUT
-
390119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4F2X-U5554-00-00 COVER, CENTERCOVER, CENTER
-
590119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
790267-489U1-00 RIVET, BLINDRIVET, BLIND
-
8F1X-U828E-01-00 DAMPER 1DAMPER 1
-
990480-19800-00 GROMMETGROMMET
-
10F2X-U555B-00-00 SEAL, COVER CENTERSEAL, COVER CENTER
-
11F2X-U8262-00-00 COVER METERCOVER METER
-
12F2S-U13C1-00-00 SCREWSCREW
-
13F2X-U377B-10-P2 COVER, SIDE 1 (VPBM6 - BLUE METALLIC)COVER, SIDE 1 (VPBM6 - BLUE METALLIC)
-
13F2X-U377B-10-P4 COVER, SIDE 1 (BMG - BLACK METALLIC)COVER, SIDE 1 (BMG - BLACK METALLIC)
-
1490111-06803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1690119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
1890267-489U1-00 RIVET, BLINDRIVET, BLIND
-
19F3P-U377F-40-00 ORNAMENT, SIDE (LEFT HAND) (BMG - BLACK METALLIC)ORNAMENT, SIDE (LEFT HAND) (BMG - BLACK METALLIC)
-
19F3P-U377F-00-00 ORNAMENT, SIDE (LEFT HAND) (VPBM6 - BLUE METALLIC)ORNAMENT, SIDE (LEFT HAND) (VPBM6 - BLUE METALLIC)
-
20F4G-U517E-00-00 NUTNUT
-
21F2N-67823-10-00 SCREWSCREW
-
22F2X-U377H-00-00 INNER, COVER SIDE 1 (VPBM6 - BLUE METALLIC)INNER, COVER SIDE 1 (VPBM6 - BLUE METALLIC)
-
22F2X-U377H-10-00 INNER, COVER SIDE 1 (BMG - BLACK METALLIC)INNER, COVER SIDE 1 (BMG - BLACK METALLIC)
-
23F2X-U377C-10-P4 COVER, SIDE 2 (BMG - BLACK METALLIC)COVER, SIDE 2 (BMG - BLACK METALLIC)
-
23F2X-U377C-10-P2 COVER, SIDE 2 (VPBM6 - BLUE METALLIC)COVER, SIDE 2 (VPBM6 - BLUE METALLIC)
-
2490111-06803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
25F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
2690119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
27F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
2890267-489U1-00 RIVET, BLINDRIVET, BLIND
-
29F3P-U377G-00-00 ORNAMENT, SIDE (RIGHT HAND) (VPBM6 - BLUE METALLIC)ORNAMENT, SIDE (RIGHT HAND) (VPBM6 - BLUE METALLIC)
-
29F3P-U377G-40-00 ORNAMENT, SIDE (RIGHT HAND) (BMG - BLACK METALLIC)ORNAMENT, SIDE (RIGHT HAND) (BMG - BLACK METALLIC)
-
30F4G-U517E-00-00 NUTNUT
-
31F2N-67823-10-00 SCREWSCREW
-
32F2X-U377J-10-00 INNER, COVER SIDE 2 (BMG - BLACK METALLIC)INNER, COVER SIDE 2 (BMG - BLACK METALLIC)
-
32F2X-U377J-00-00 INNER, COVER SIDE 2 (VPBM6 - BLUE METALLIC)INNER, COVER SIDE 2 (VPBM6 - BLUE METALLIC)
-
33F2X-U516P-00-00 BOX GLOVEBOX GLOVE
-
34F2X-U1708-00-00 GLOVE BOX HATCH ASSYGLOVE BOX HATCH ASSY
-
35F2X-U519D-00-00 ...PACKING CASE...PACKING CASE
-
36F2X-U2875-00-00 LOCKLOCK
